TM3-5023.5-G-SN

Name: TM3-5023.5-G-SN
Brand: Q-Mark Manufacturing Inc
SKU: TM3-5023.5-G-SN
Price: 65.0 USD
Availability: InStock

$65.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

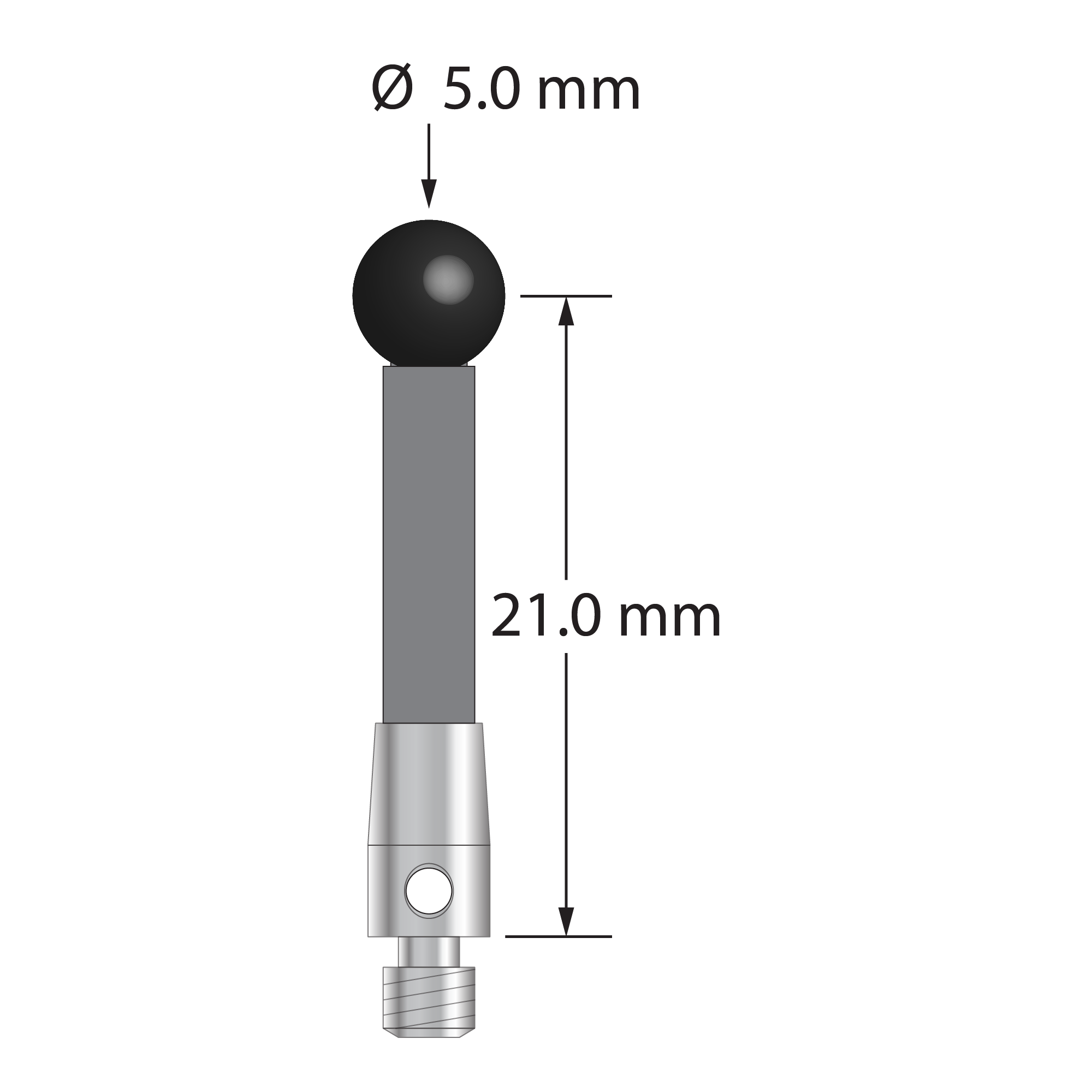

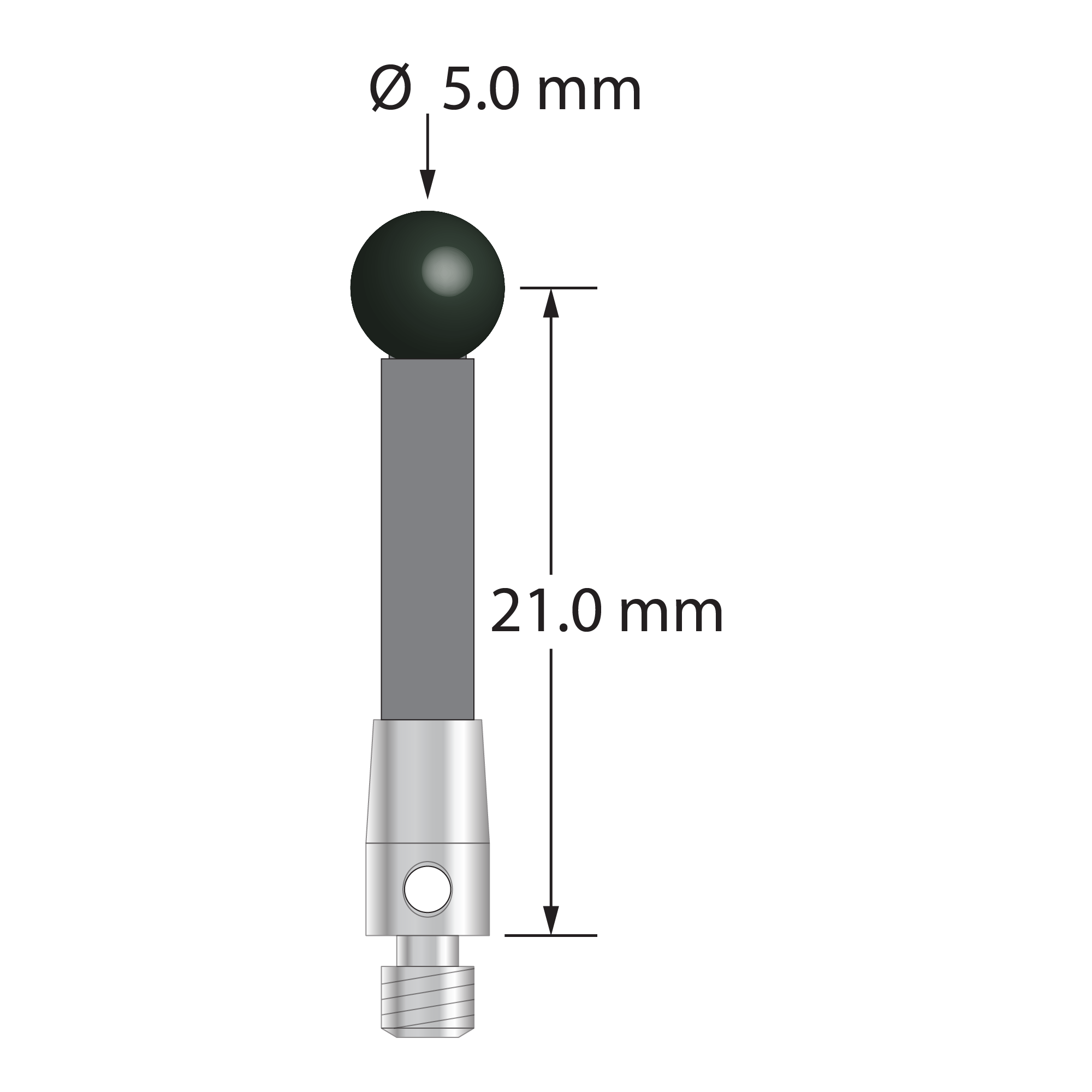

M3 stylus with 5.0 mm diameter silicon nitride ball, 3.0 mm diameter carbon fiber stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Stylus length to ball center is 21.0 mm. Stylus weight is 0.77 gram. Compare to Renishaw A-5003-5978.

Dimensions

ball diameter: 5.0

base diameter: 4.0

length 1: 23.5

length 2: 16.5

stem diameter: 3.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbon Fiber
