TM3-5022.5-H-S

Name: TM3-5022.5-H-S
Brand: Q-Mark Manufacturing Inc
Price: 101.0 USD
Availability: InStock

$101.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

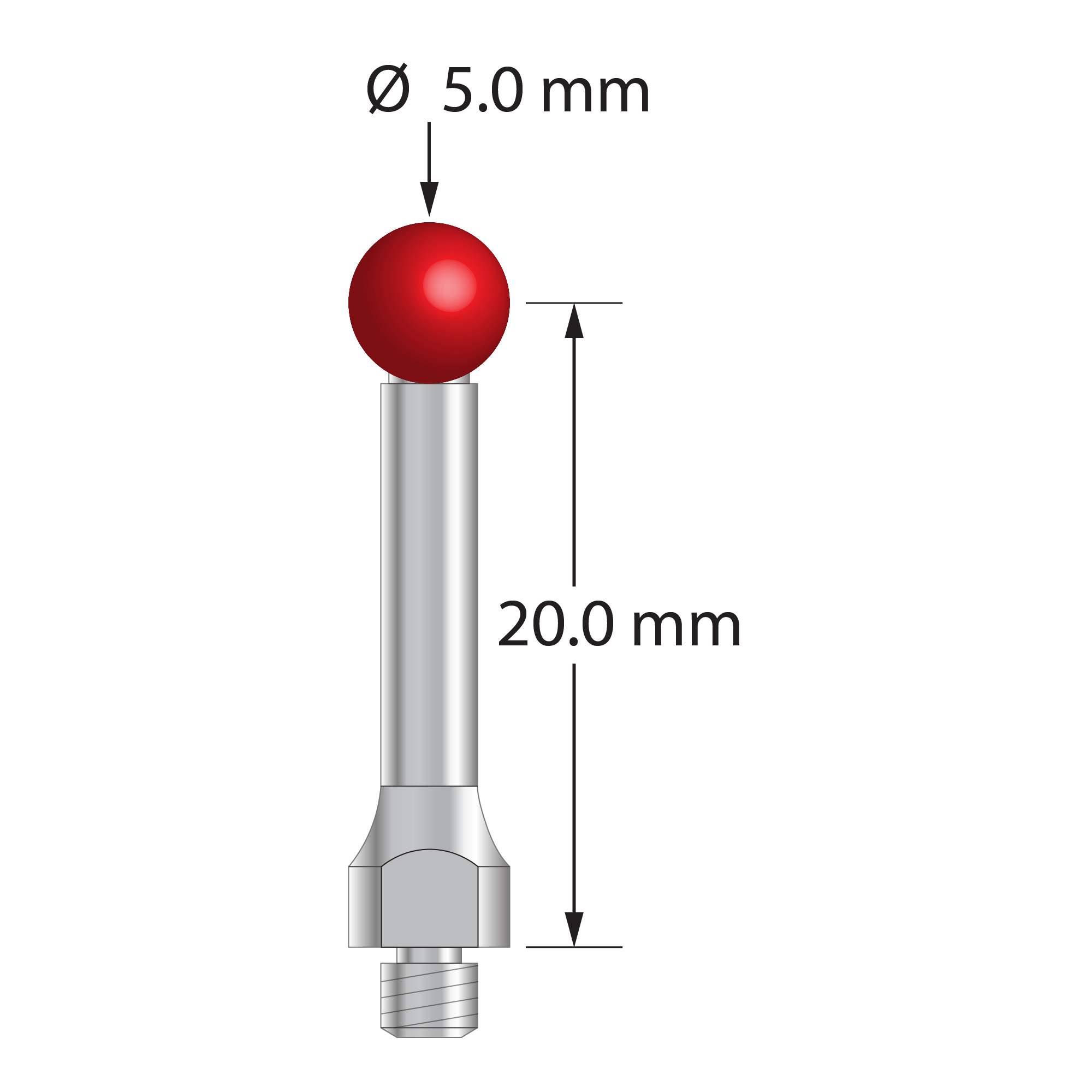

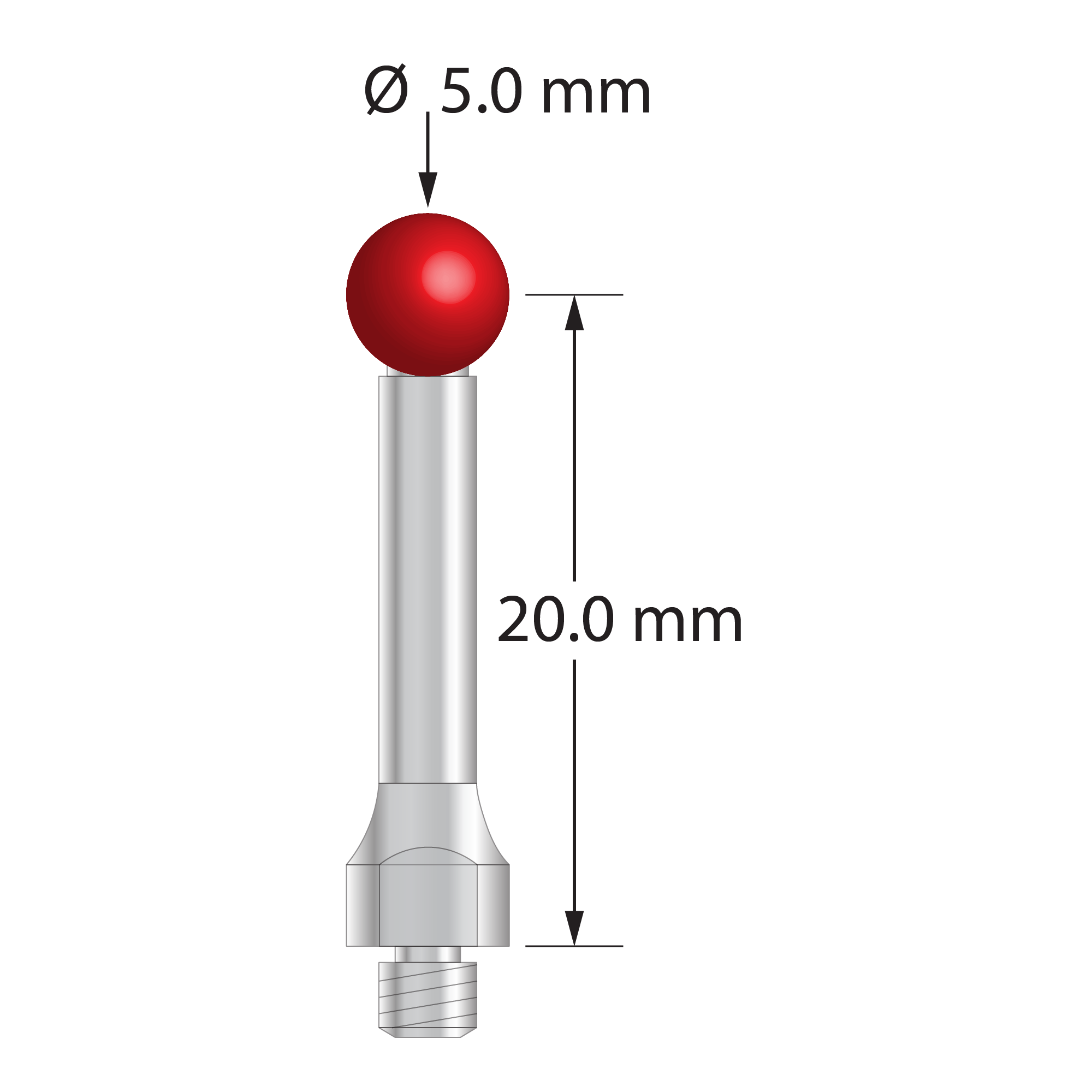

M3 stylus with 5.0 mm diameter ruby ball, stainless steel stem and base with 4.0 mm wrench flats for tightening. Stylus length to ball center is 20.0 mm. Compare to Hexagon M00-694-212-000.

Dimensions

ball diameter: 5.0

base diameter: 5.0

length 1: 22.5

length 2: 17.5

stem diameter: 3.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Stainless Steel
