TM3-4060-TX

Name: TM3-4060-TX
Brand: Q-Mark Manufacturing Inc
Price: 135.0 USD
Availability: InStock

$135.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

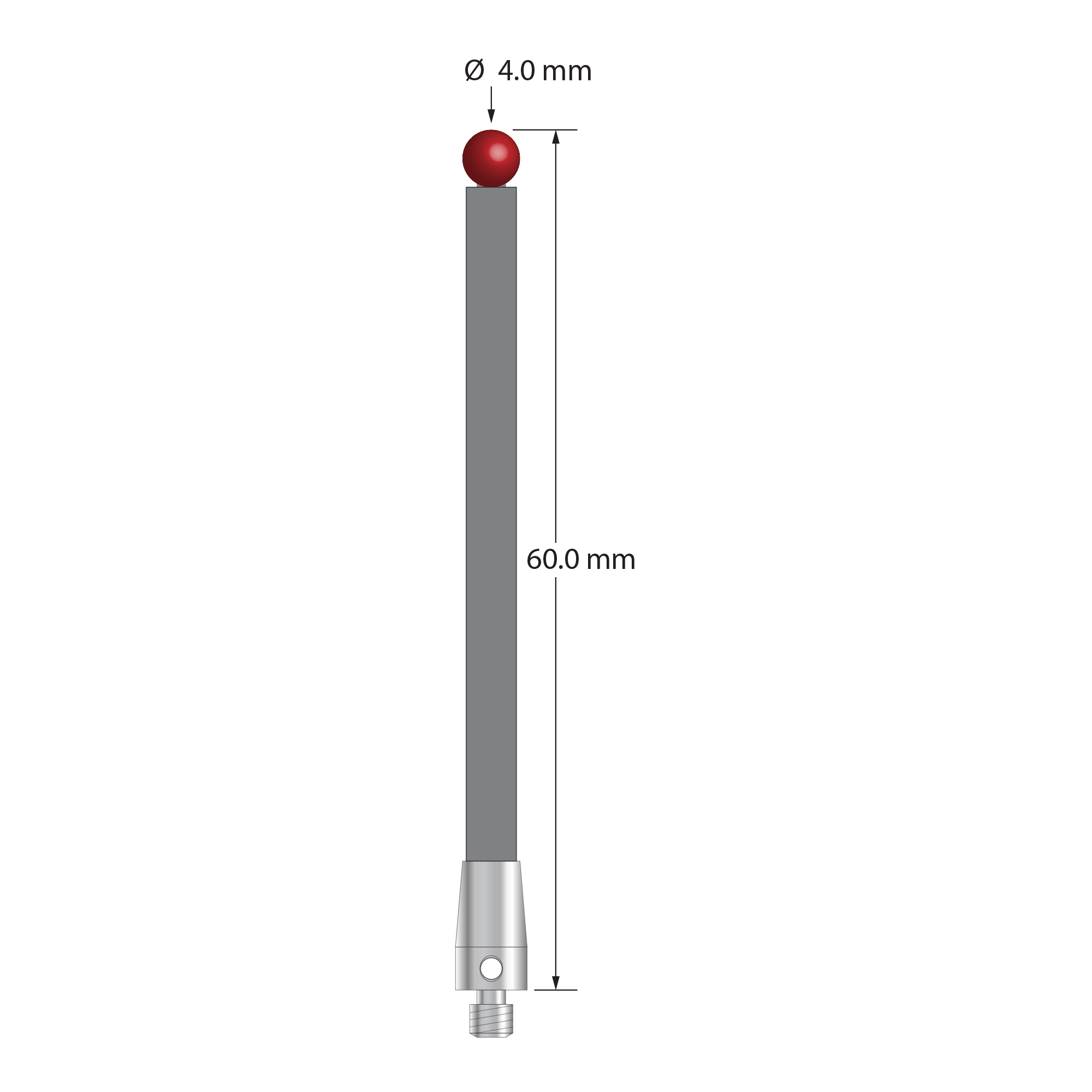

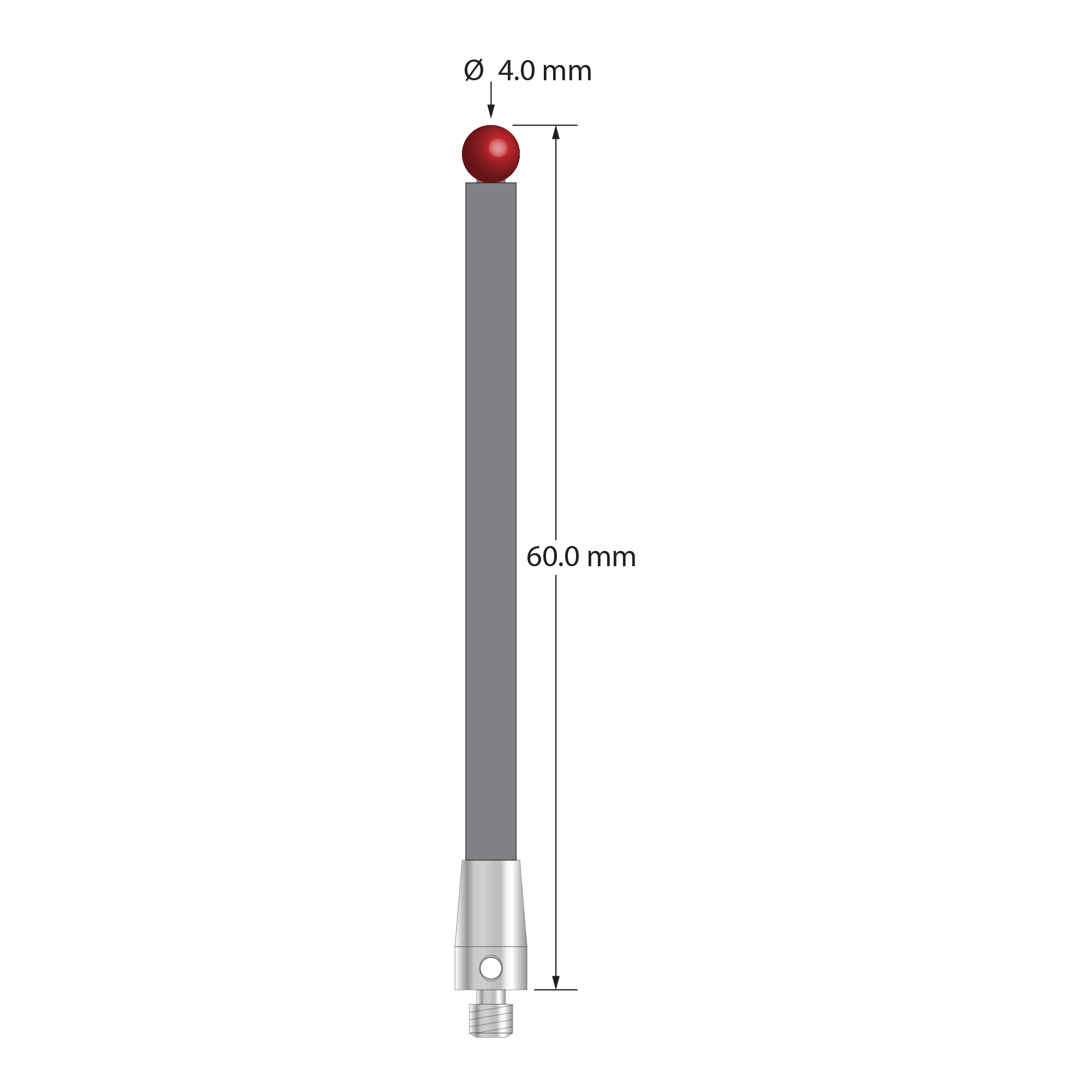

M3 XXT stylus with 4.0 mm diameter ruby ball, 3.5 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 60.0 mm. Stylus weight is 1.31 gram. Compare to Zeiss 626103-0410-060.

Dimensions

ball diameter: 4.0

base diameter: 5.0

length 1: 60.0

length 2: 51.0

stem diameter: 3.5

Materials

ball material: Ruby

base material: Titanium

stem material: Carbon Fiber
