TM3-4050-TX-SN

Name: TM3-4050-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 150.0 USD
Availability: InStock

$150.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

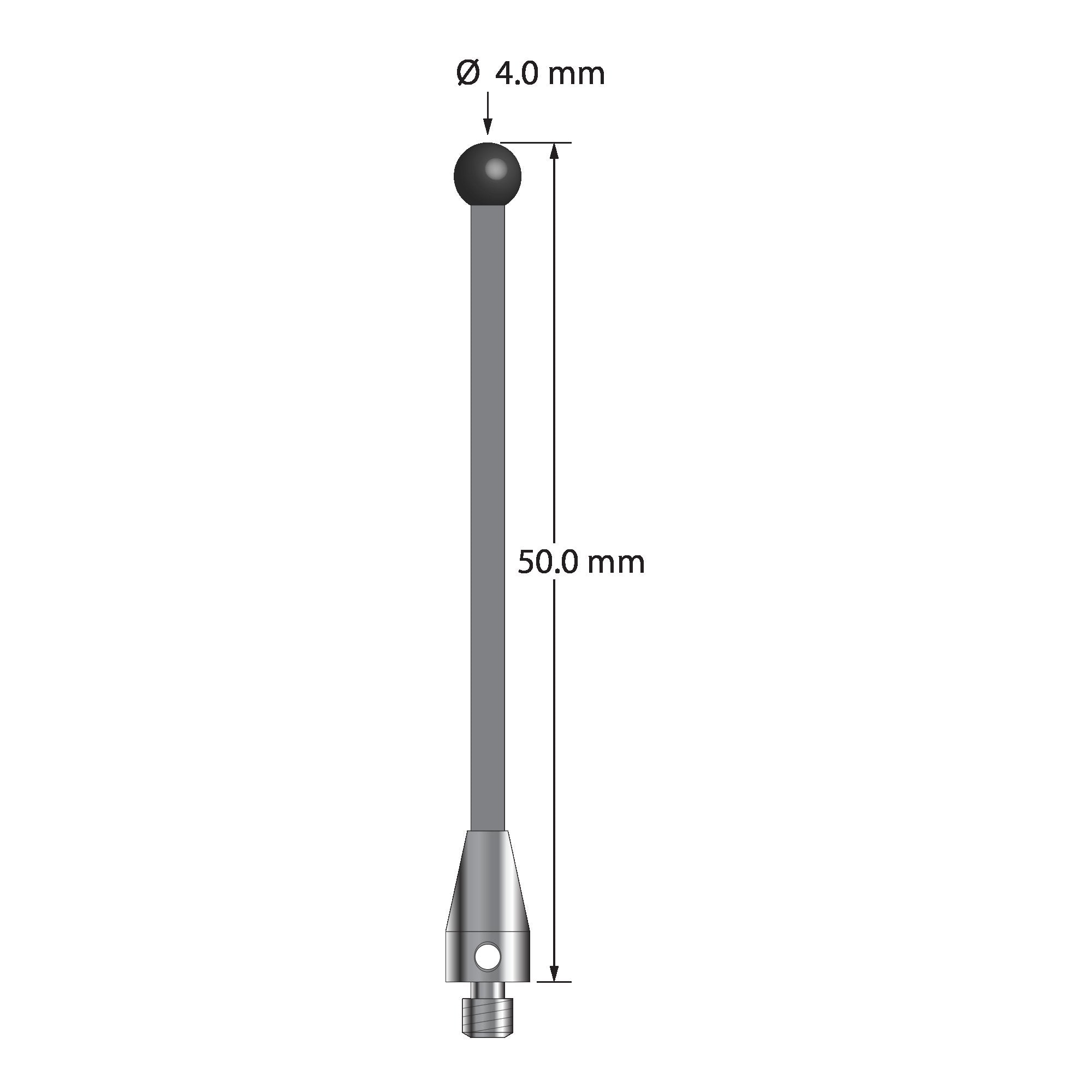

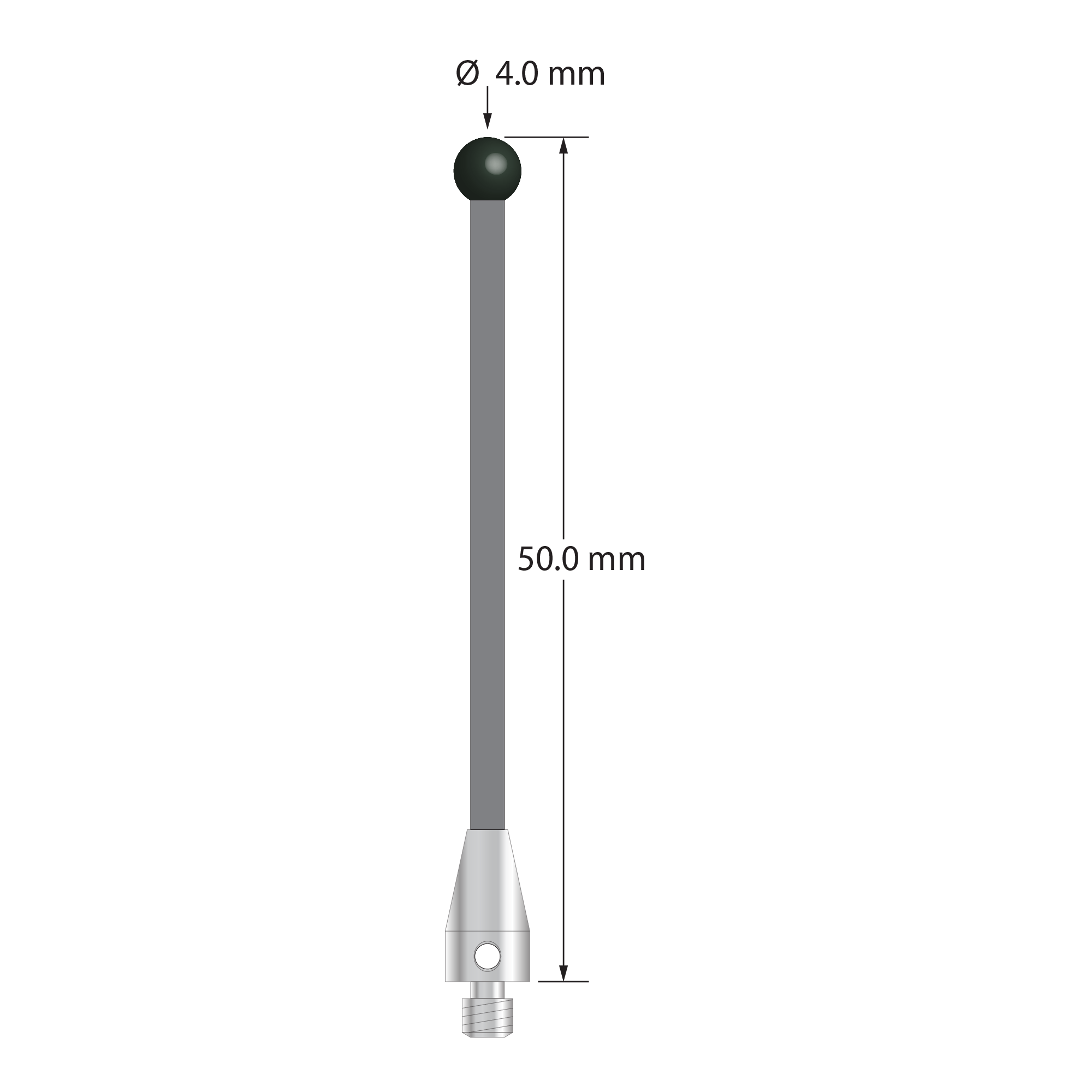

M3 stylus with 4.0 mm diameter silicon nitride ball, 2.0 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 50.0 mm. Stylus weight is 0.73 gram. Compare to Zeiss 626103-0402-050.

Dimensions

ball diameter: 4.0

base diameter: 5.0

length 1: 50.0

length 2: 41.0

stem diameter: 2.0

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbon Fiber
