TM3-4033-S-SN
TM3-4033-S-SN

TM3-4033-S-SN

$61.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

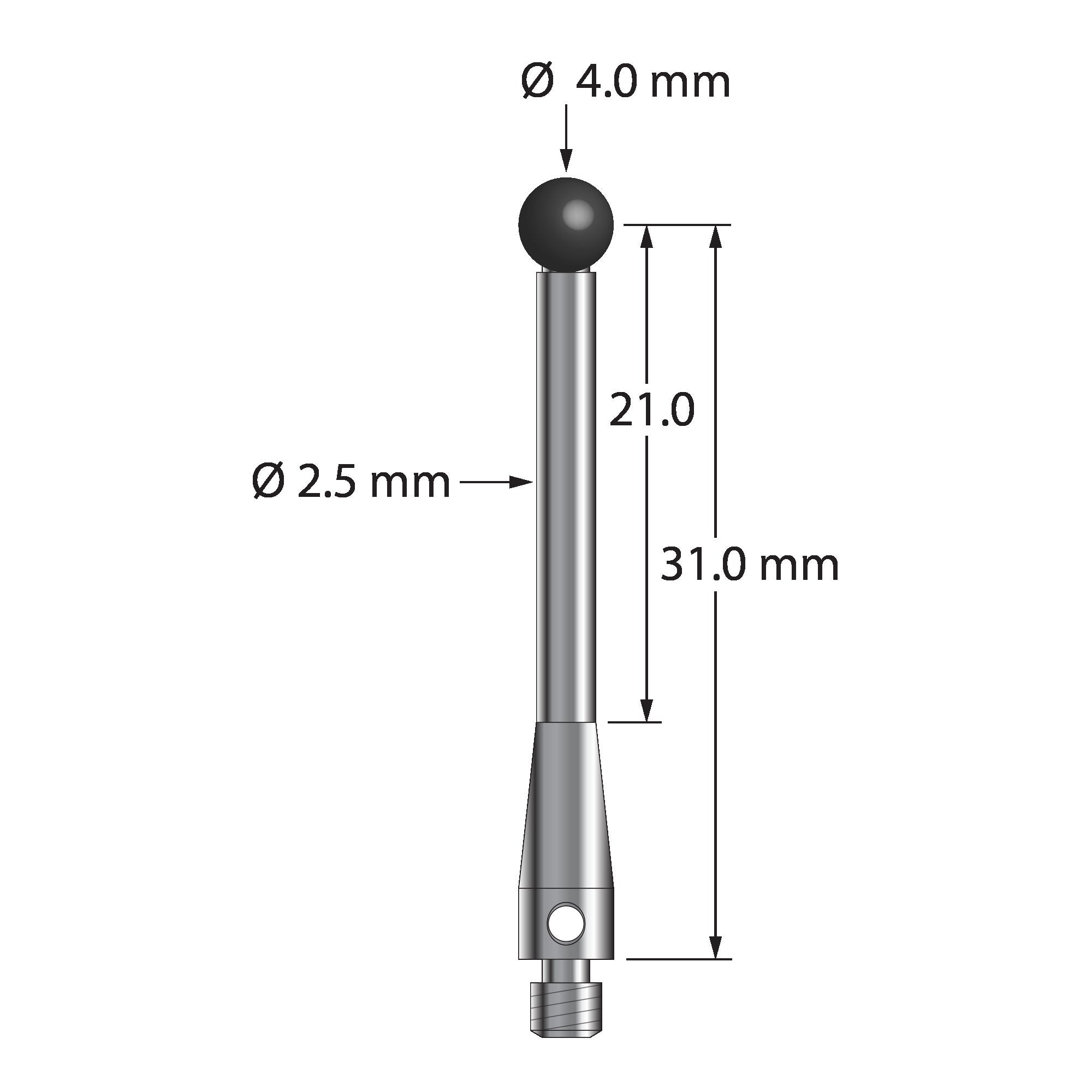

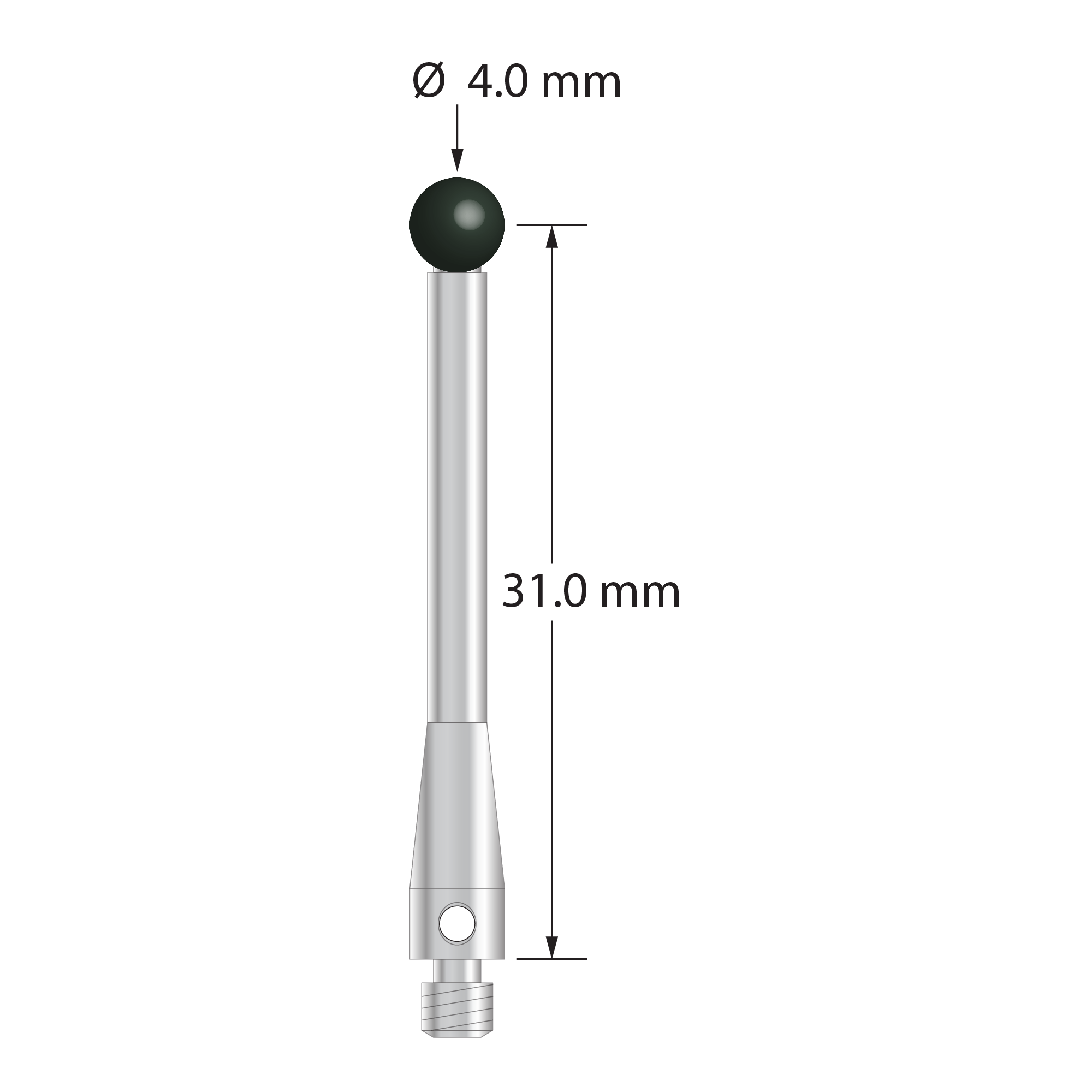

M3 stylus with 4.0 mm diameter silicon nitride ball and stainless steel body.  Stylus length to ball center is 31.0 mm.  Weight is 2.00 grams.

Dimensions

ball diameter: 4.0
base diameter: 4.0
length 1: 33.0
length 2: 23.0
stem diameter: 2.5

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Stainless Steel
