TM3-4032-C

Name: TM3-4032-C
Brand: Q-Mark Manufacturing Inc.
Price: 44.0 USD
Availability: InStock

$44.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

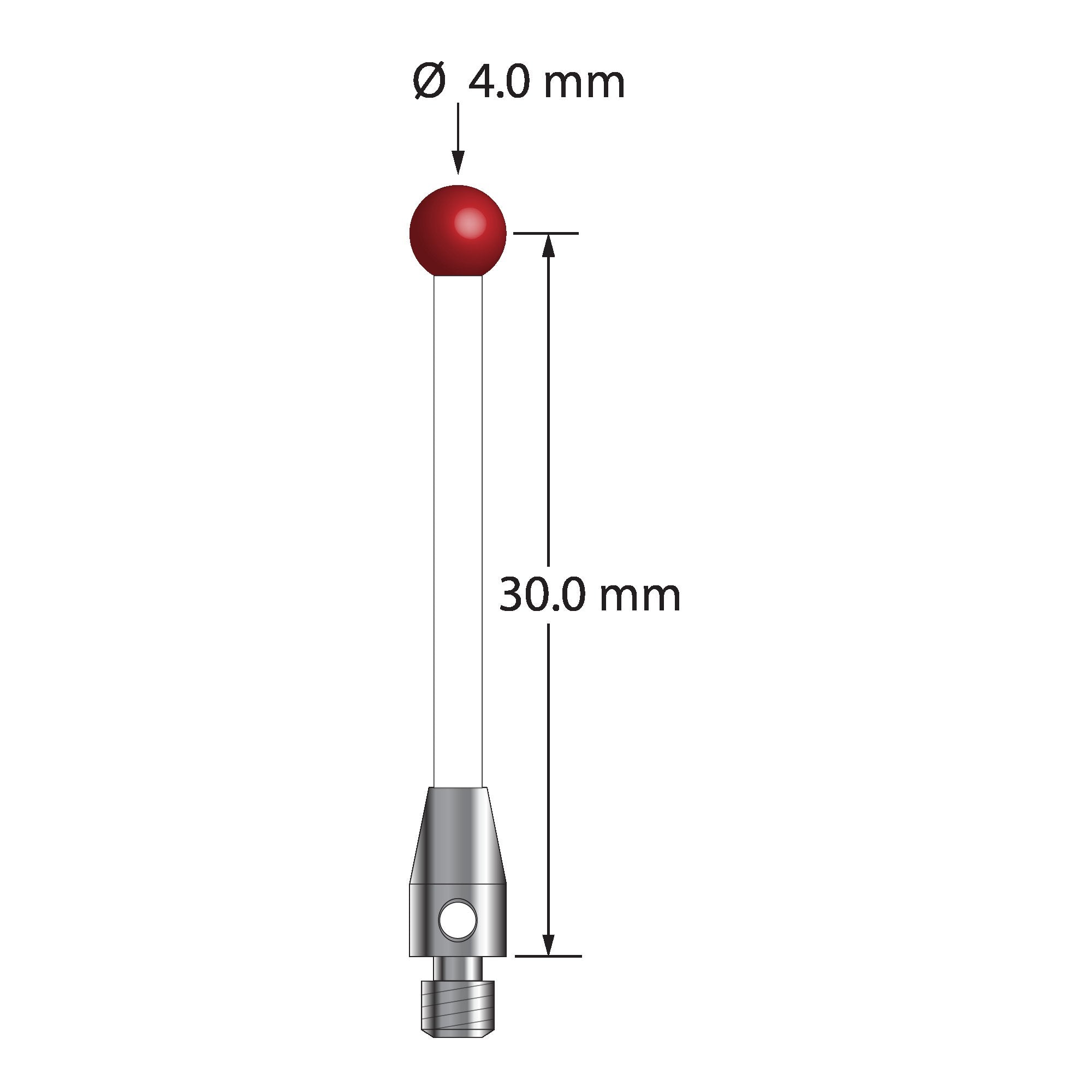

M3 stylus with 4.0 mm diameter ruby ball, 2.0 mm diameter ceramic stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Stylus length to ball center is 30.0 mm. Stylus weight is 0.73 gram. Compare to Zeiss 602030-8102-000 and Mitutoyo K651140.

Dimensions

ball diameter: 4.0

base diameter: 4.0

length 1: 32.0

length 2: 25.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Ceramic
