TM3-4025-TX
TM3-4025-TX

TM3-4025-TX

$102.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

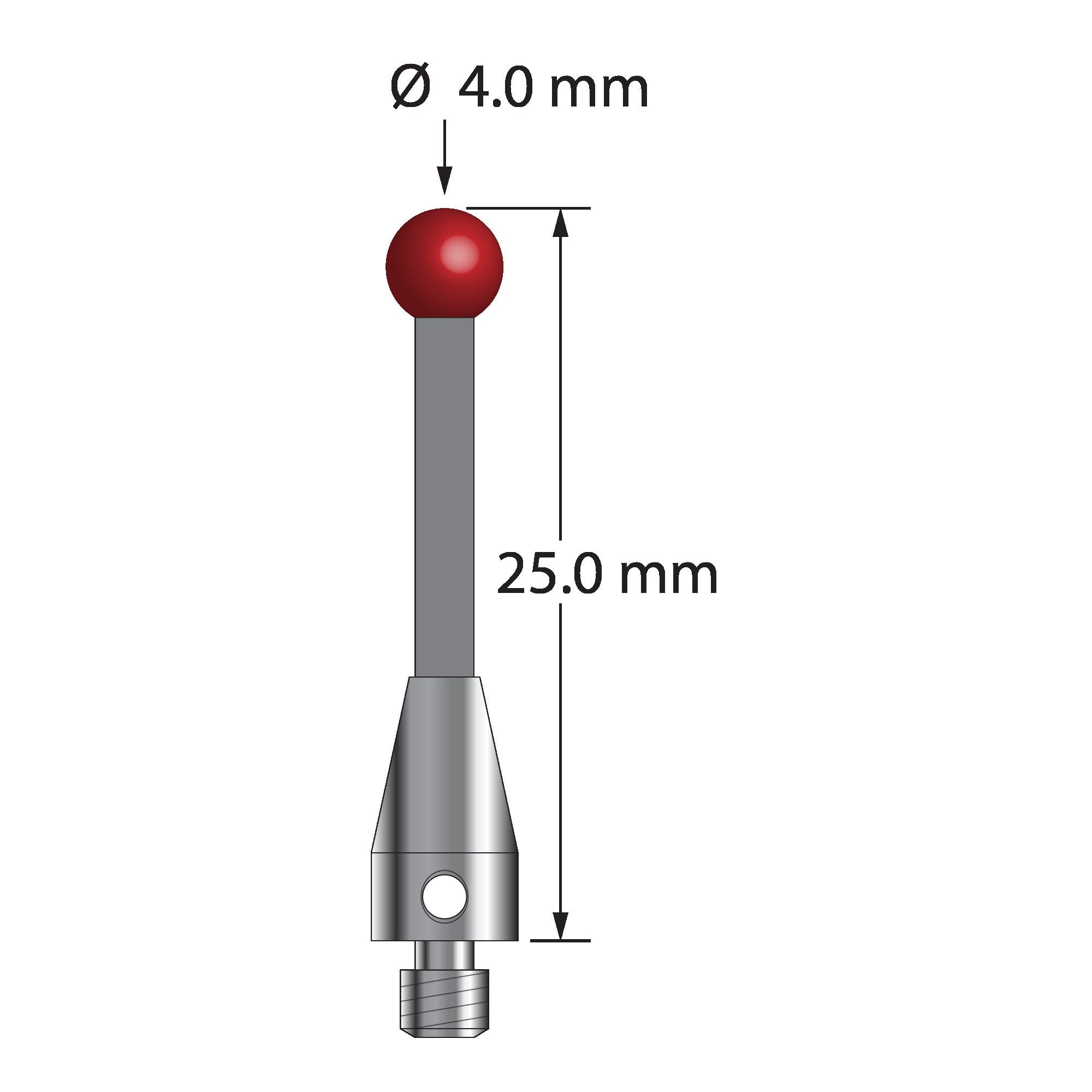

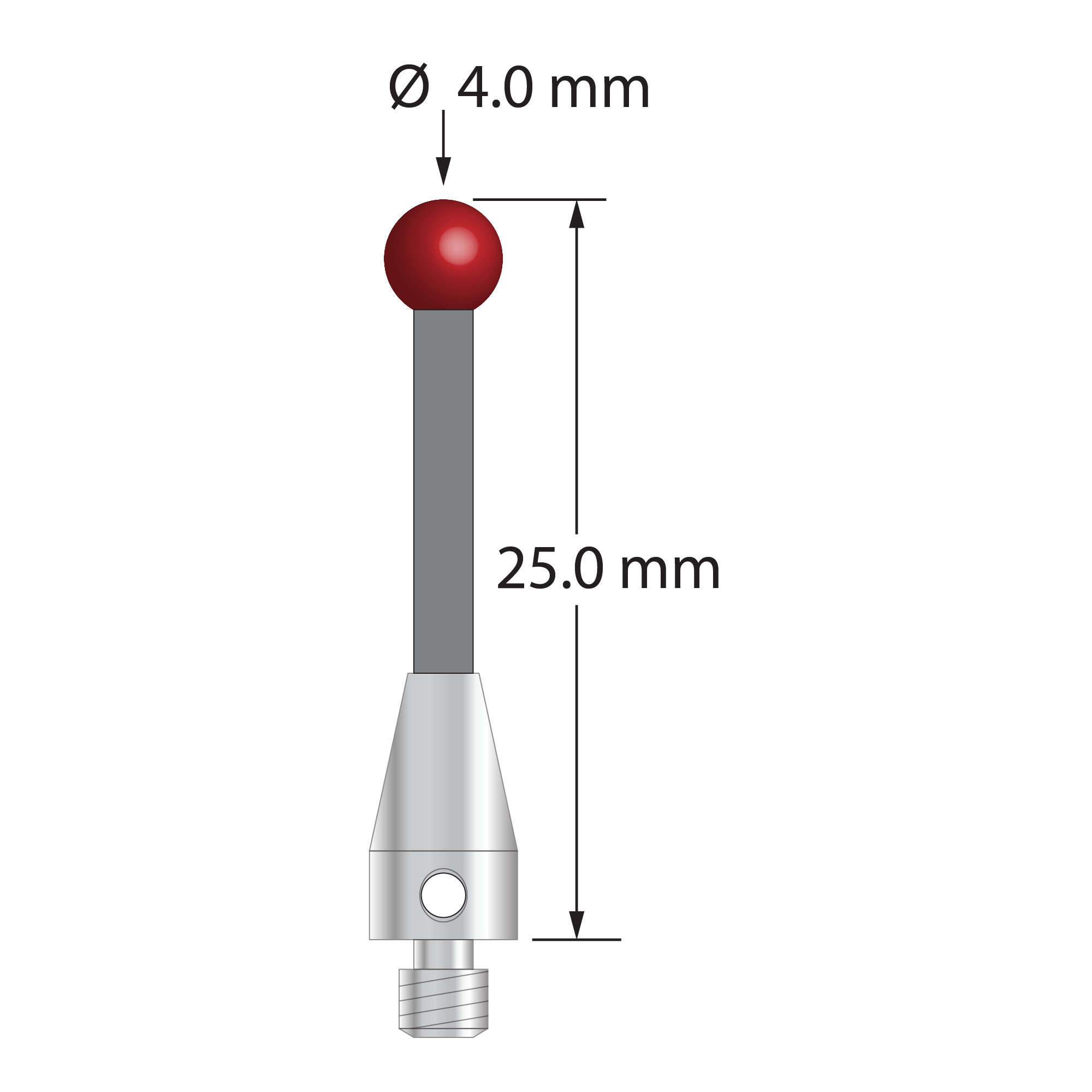

M3 stylus with 4.0 mm diameter ruby ball, 2.0 mm diameter carbon fiber stem, and 5.0 mm diameter x 9.0 mm long titanium base.  Overall stylus length is 25.0 mm.  Stylus weight is 0.61 gram.  Compare to Renishaw A-5004-2786 and Zeiss 626103-0401-050.

Dimensions

ball diameter: 4.0
base diameter: 5.0
length 1: 25.0
length 2: 16.0
stem diameter: 2.0

Materials

ball material: Ruby
base material: Titanium
stem material: Carbon Fiber
