TM3-3022.5-S-SN

$61.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

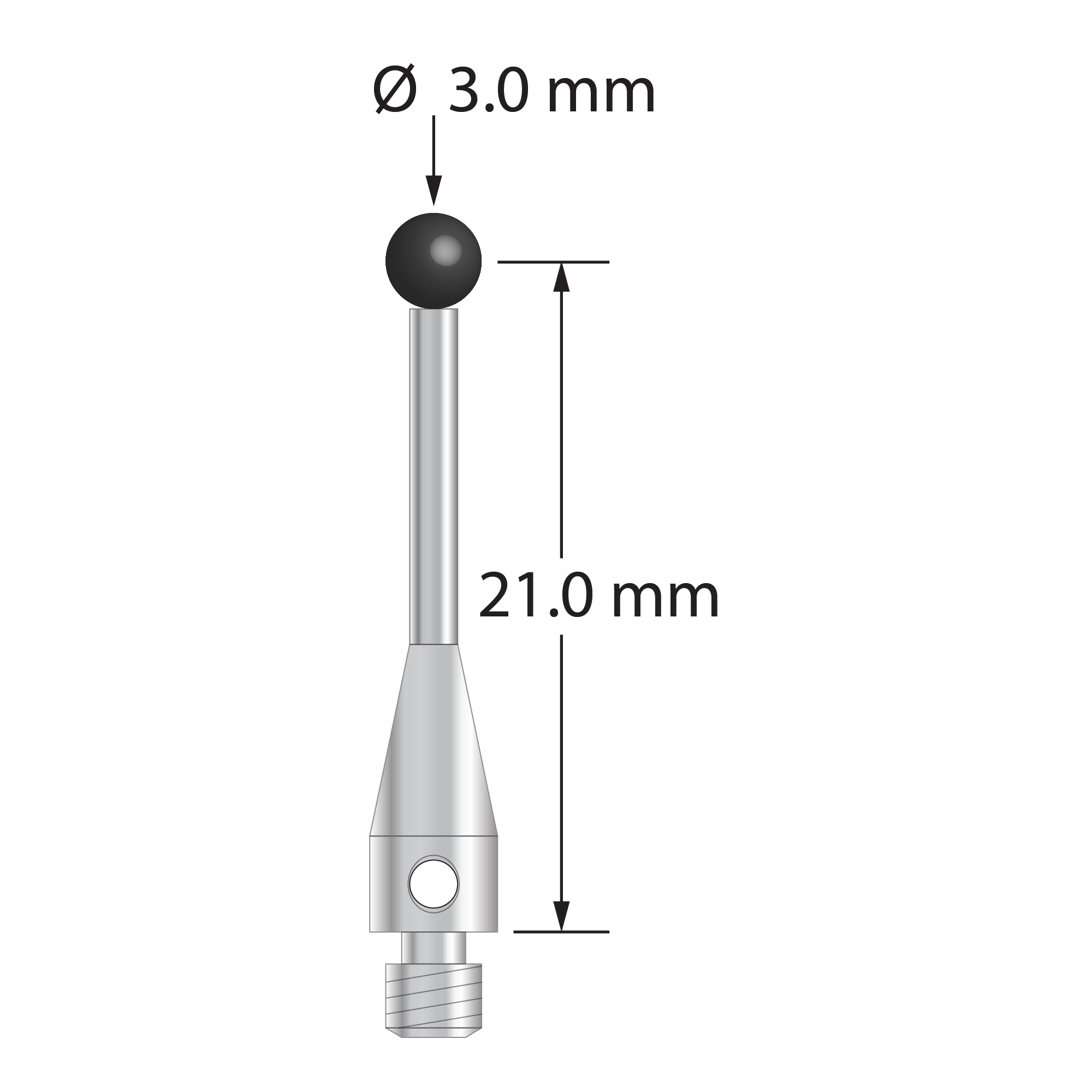

M3 stylus with 3.0 mm diameter silicon nitride ball and stainless steel body.  Stylus length to ball center is 21.0 mm.  Weight is 0.82 gram.

Dimensions

ball diameter: 3.0
base diameter: 4.0
length 1: 22.5
length 2: 13.5
stem diameter: 1.5

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Stainless Steel
