TM3-3021.5
TM3-3021.5

TM3-3021.5

$47.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

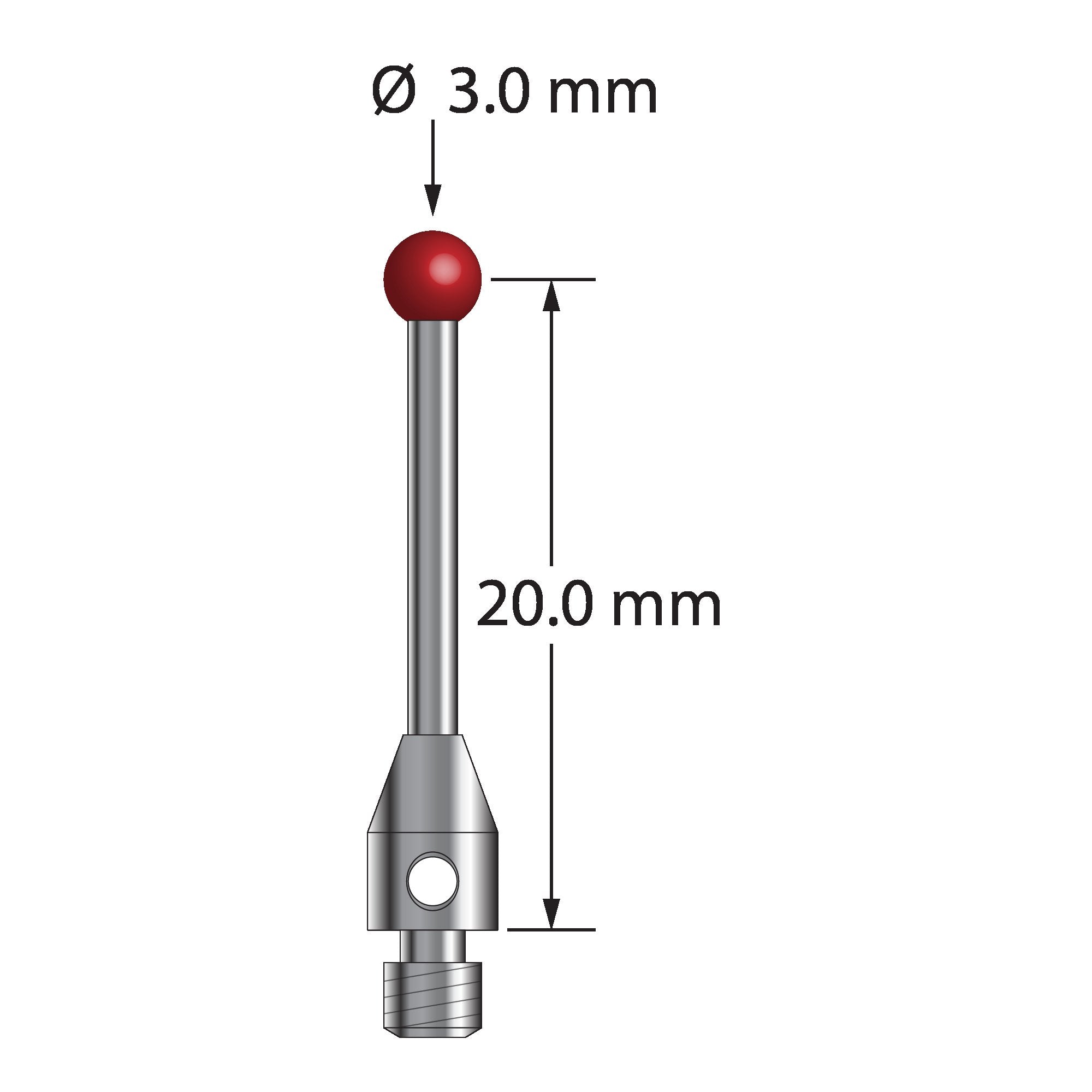

M3 stylus with 3.0 mm diameter ruby ball, 1.5 mm diameter carbide stem, and 4.0 mm diameter x 6.0 mm long stainless steel base. Stylus length to ball center is 20.0 mm. Stylus weight is 0.80 gram. Compare to Zeiss 602030-8021-000.

Dimensions

ball diameter: 3.0
base diameter: 4.0
length 1: 21.5
length 2: 15.5
stem diameter: 1.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
