TM3-3013-CYL

Name: TM3-3013-CYL
Brand: Q-Mark Manufacturing Inc.
Price: 17.0 USD
Availability: InStock

$17.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

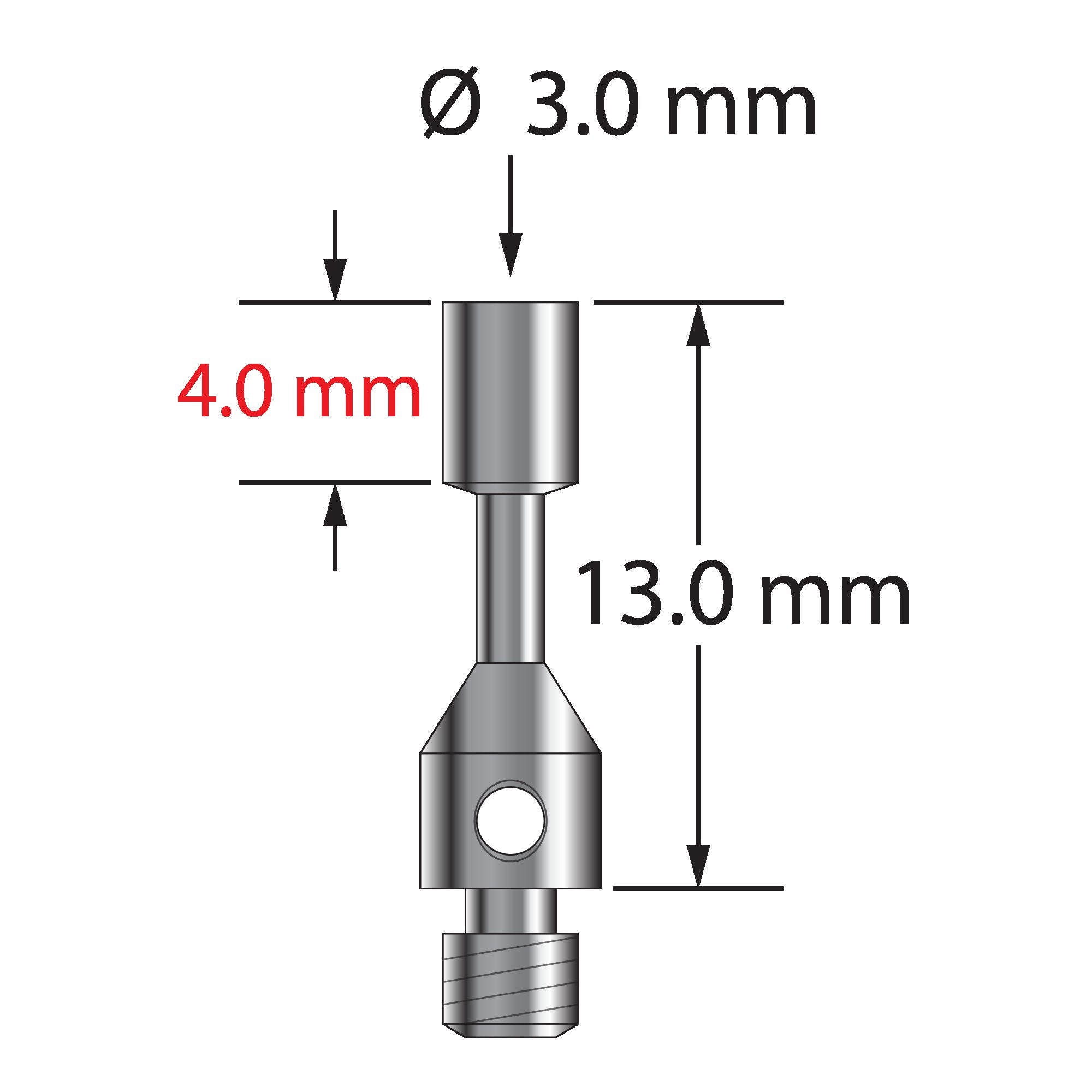

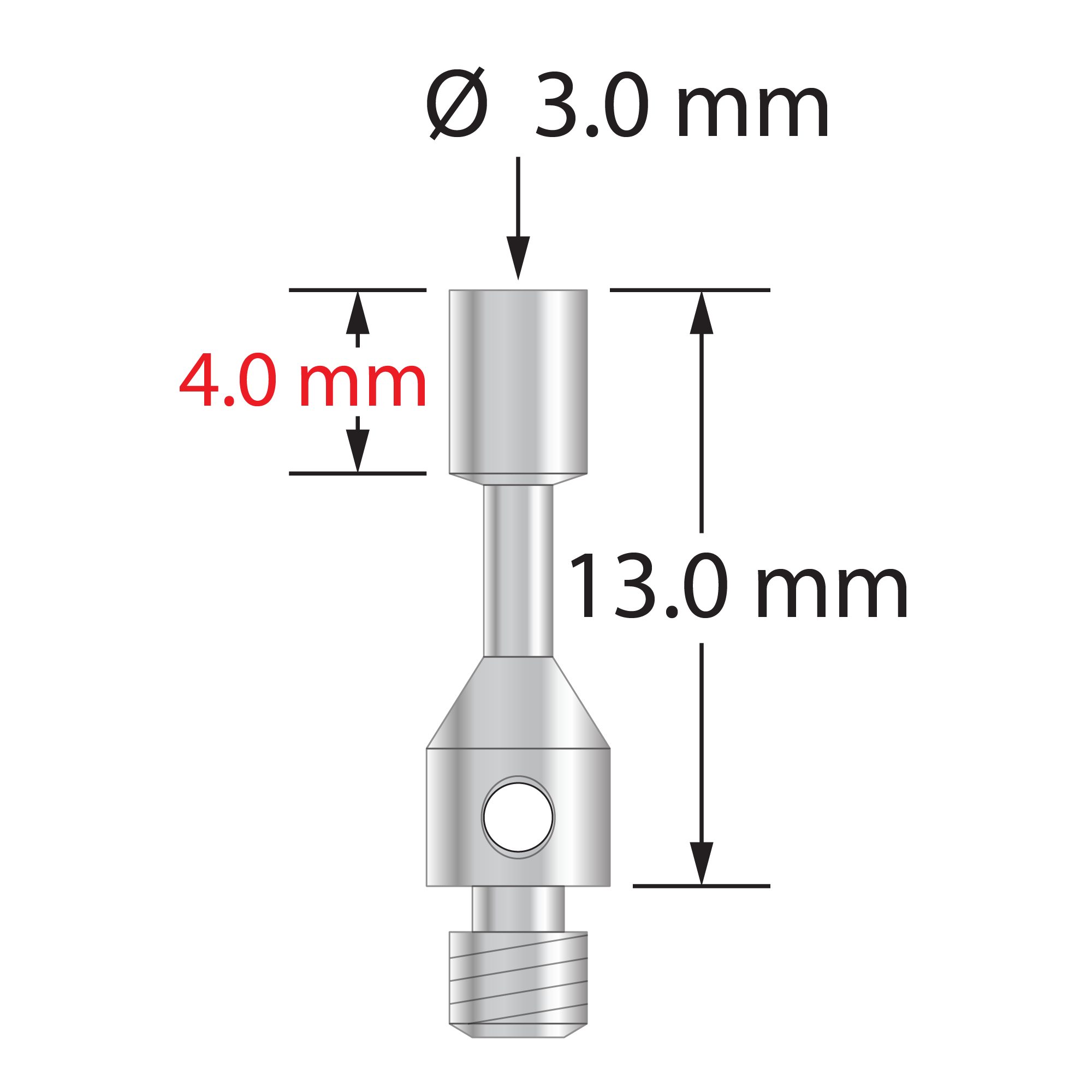

M3 cylinder stylus with 3.0 mm diameter x 4.0 mm long stainless steel cylinder and stainless steel stem and base. Overall length is 13.0 mm. Stylus weight is 0.70 gram. Compare to Zeiss 602030-8099-000, ITP ZH M3 030 04 013, and Mitutoyo K651154.

Cylinder styli are used for edge probing, like those found on stampings or sheet metal parts. They are not recommended for high accuracy work because their form is less precise than a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 3.0

base diameter: 4.0

length 1: 13.0

length 2: 4.0

stem diameter: 1.5

Materials

ball material: Stainless Steel

base material: Stainless Steel

stem material: Stainless Steel
