TM3-2550-Z

$80.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

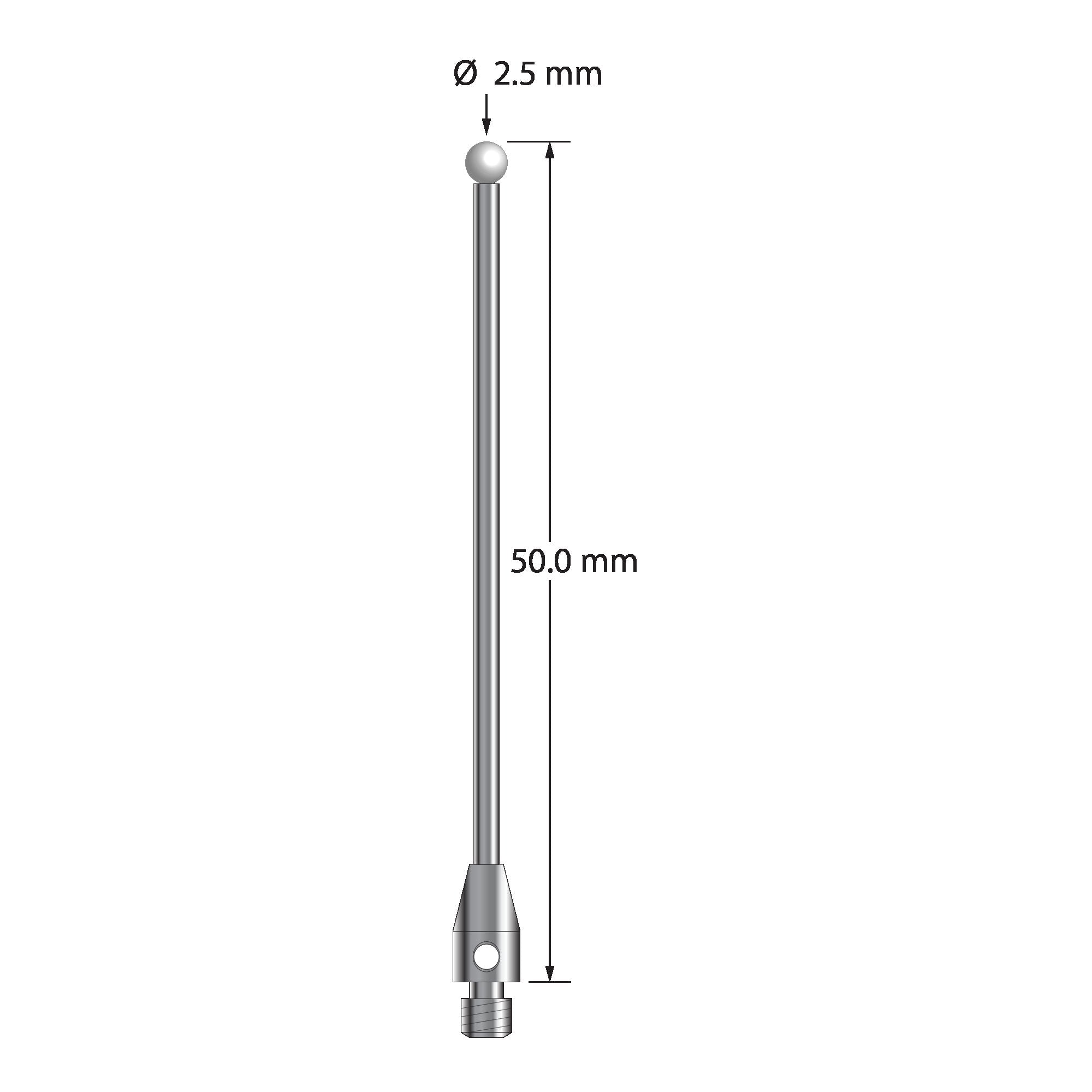

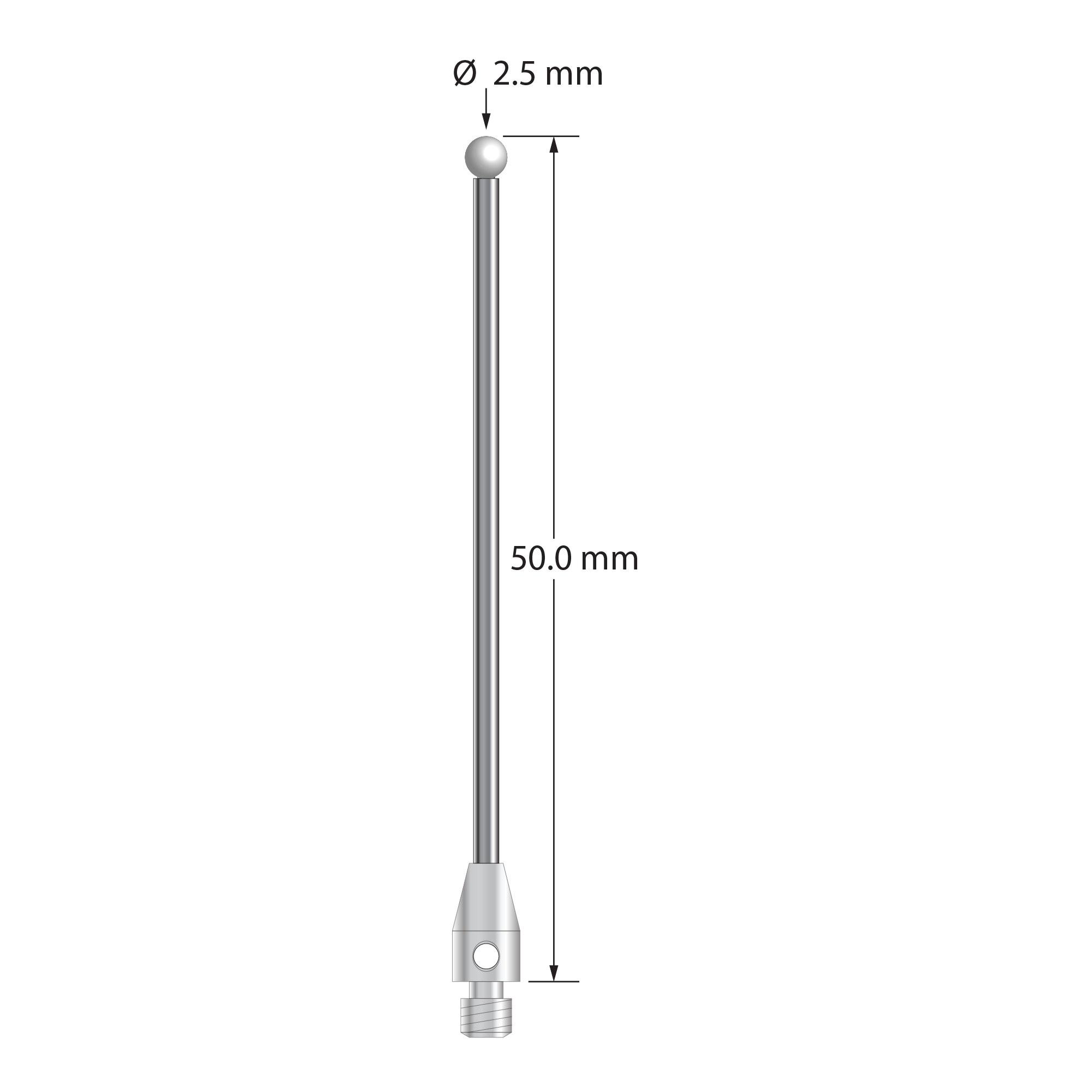

M3 stylus with 2.5 mm diameter zirconia ball, 1.5 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 50.0 mm. Stylus weight is 1.73 grams.

Dimensions

ball diameter: 2.5
base diameter: 4.0
length 1: 50.0
length 2: 43.0
stem diameter: 1.5

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
