TM3-2541.25-DS2-Z

Name: TM3-2541.25-DS2-Z
Brand: Q-Mark Manufacturing Inc.
Price: 78.0 USD
Availability: InStock

$78.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

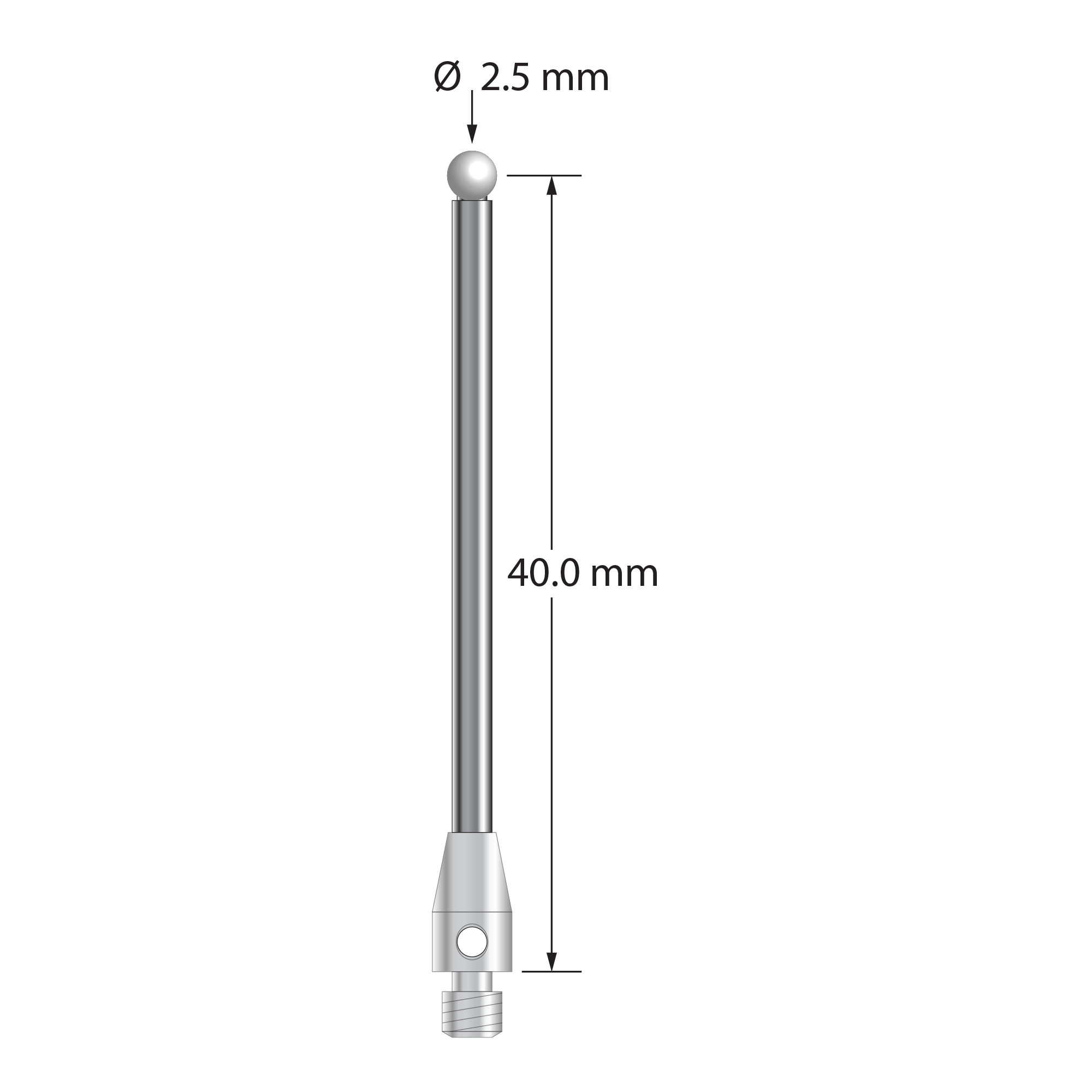

M3 stylus with 2.5 mm diameter zirconia ball, 2.0 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Stylus length to ball center is 40.0 mm. Stylus weight is 2.21 grams.

Dimensions

ball diameter: 2.5

base diameter: 4.0

length: 41.25

length 2: 34.25

stem diameter: 2.0

Materials

ball material: Zirconia

base material: Stainless Steel

stem material: Carbide
