TM3-2540-TX-SN

Name: TM3-2540-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 99.0 USD
Availability: InStock

$99.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

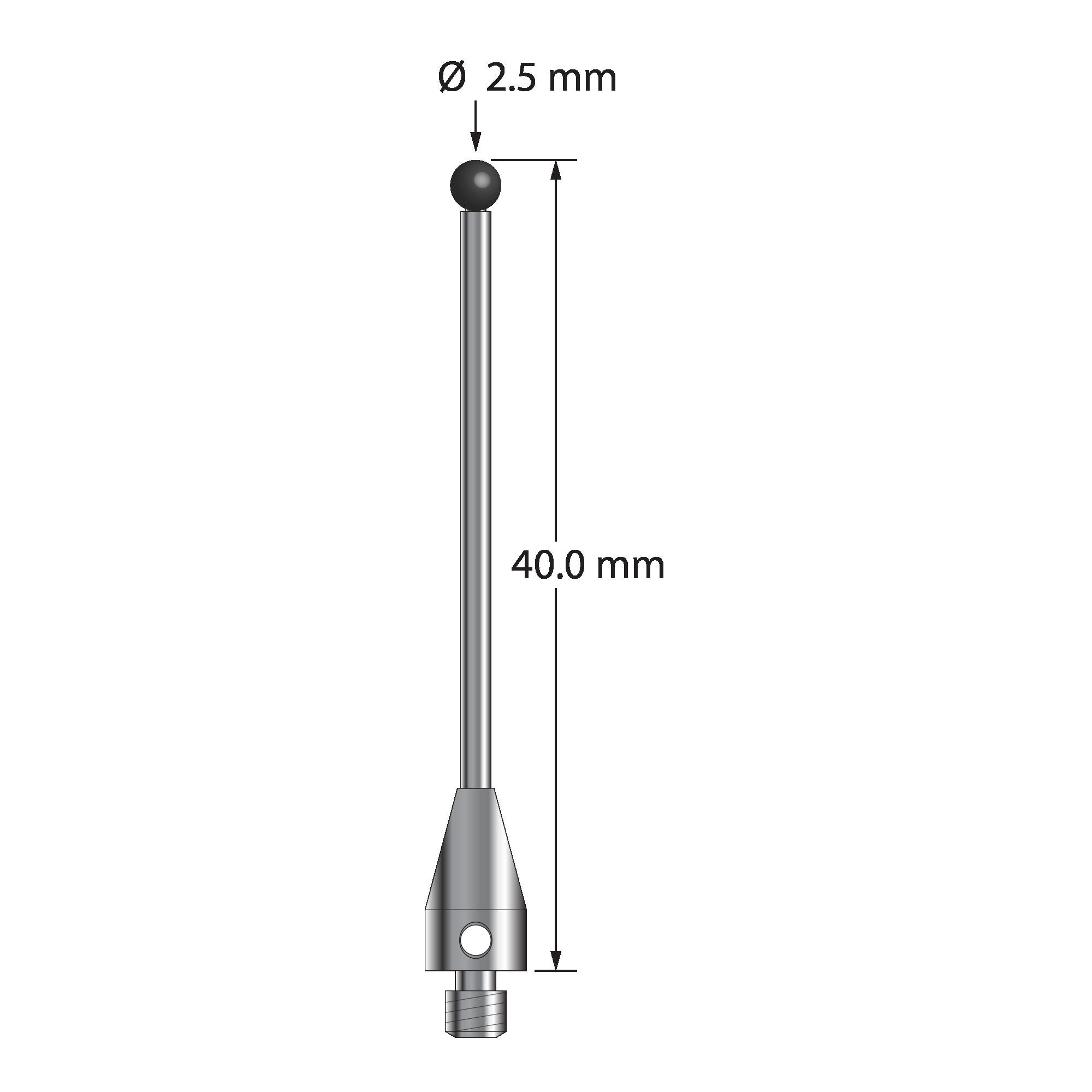

M3 XXT stylus with 2.5 mm diameter silicon nitride ball, 1.5 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 40.0 mm. Stylus weight is 1.28 grams. Compare to Zeiss 626113-0251-040.

Dimensions

ball diameter: 2.5

base diameter: 5.0

length 1: 40.0

length 2: 31.0

stem diameter: 1.5

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbide
