TM3-2075-BC
TM3-2075-BC

TM3-2075-BC

$115.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

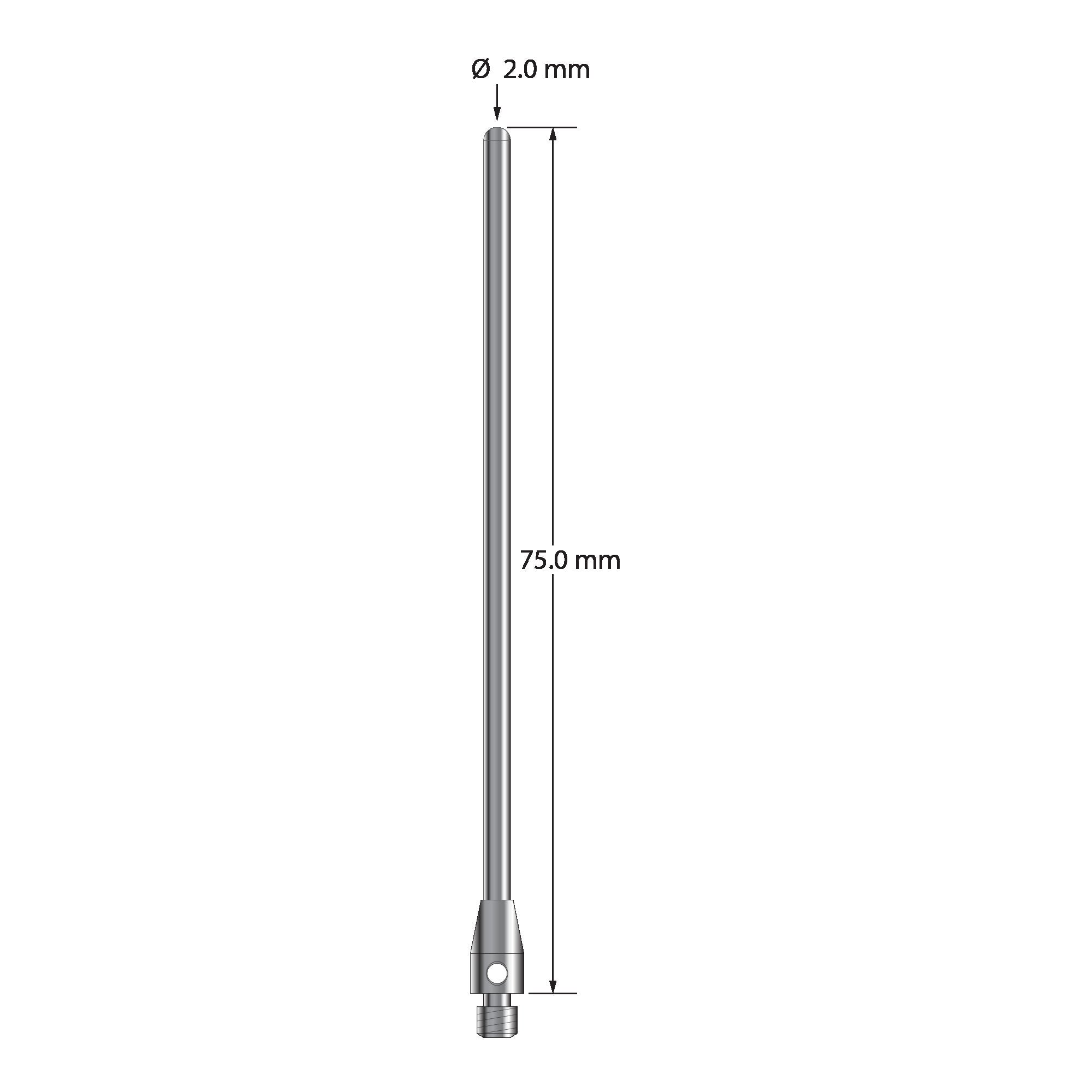

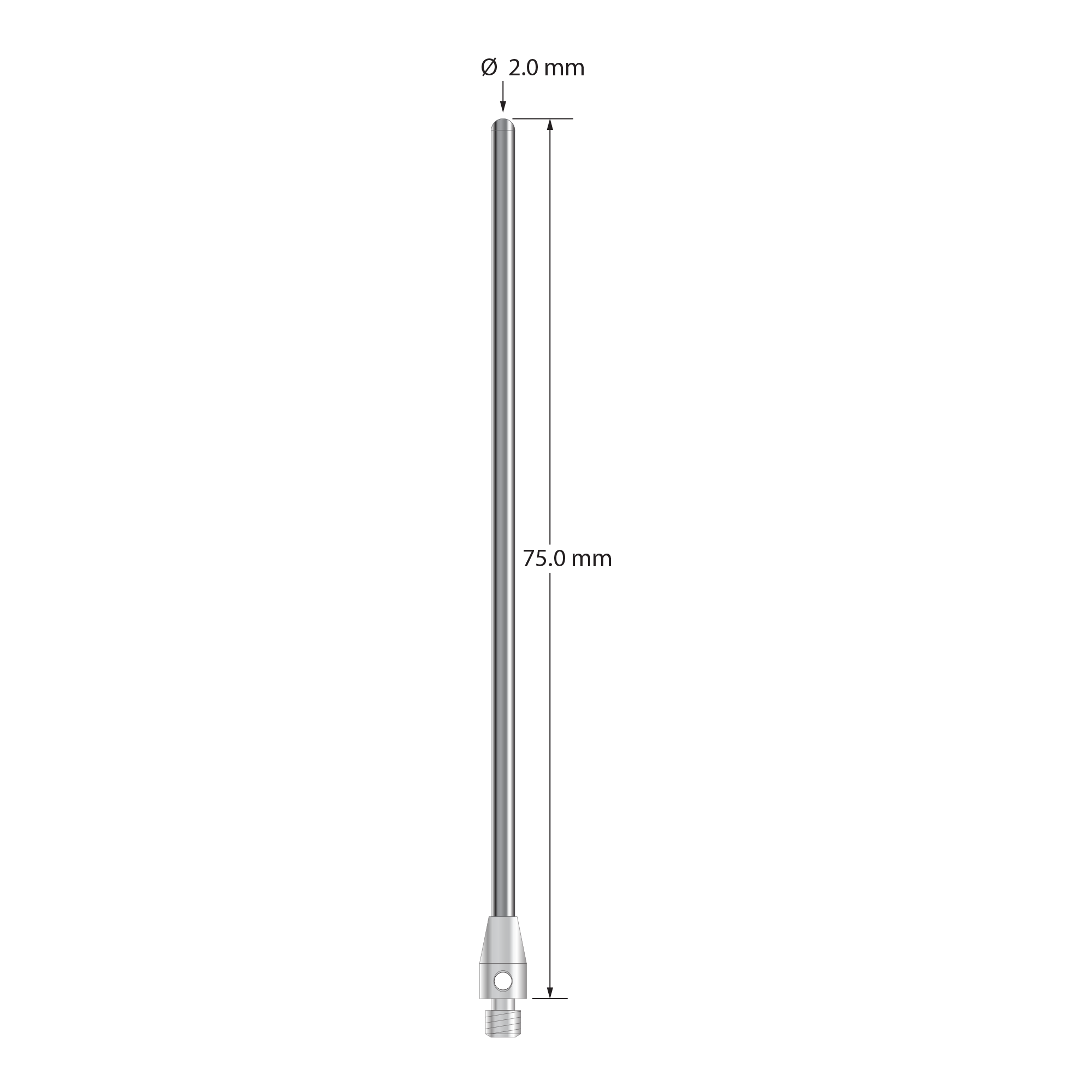

M3 cylinder stylus with 2.0 mm diameter carbide cylinder and 4.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 75.0 mm. Stylus weight is 3.60 grams.

Cylinder styli are used for edge probing, like those found on stampings or sheet metal parts. They are not recommended for high accuracy work because their form is less precise than a sphere. Please contact us with any questions about calibrating or using cylinder styli.

Dimensions

ball diameter: 2.0
base diameter: 4.0
length 1: 75.0
length 2: 68.0
stem diameter: 2.0

Materials

ball material: Carbide
base material: Stainless Steel
stem material: Carbide
