TM3-2038-DS1-SN

Name: TM3-2038-DS1-SN
Brand: Q-Mark Manufacturing Inc.
Price: 49.0 USD
Availability: InStock

$49.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

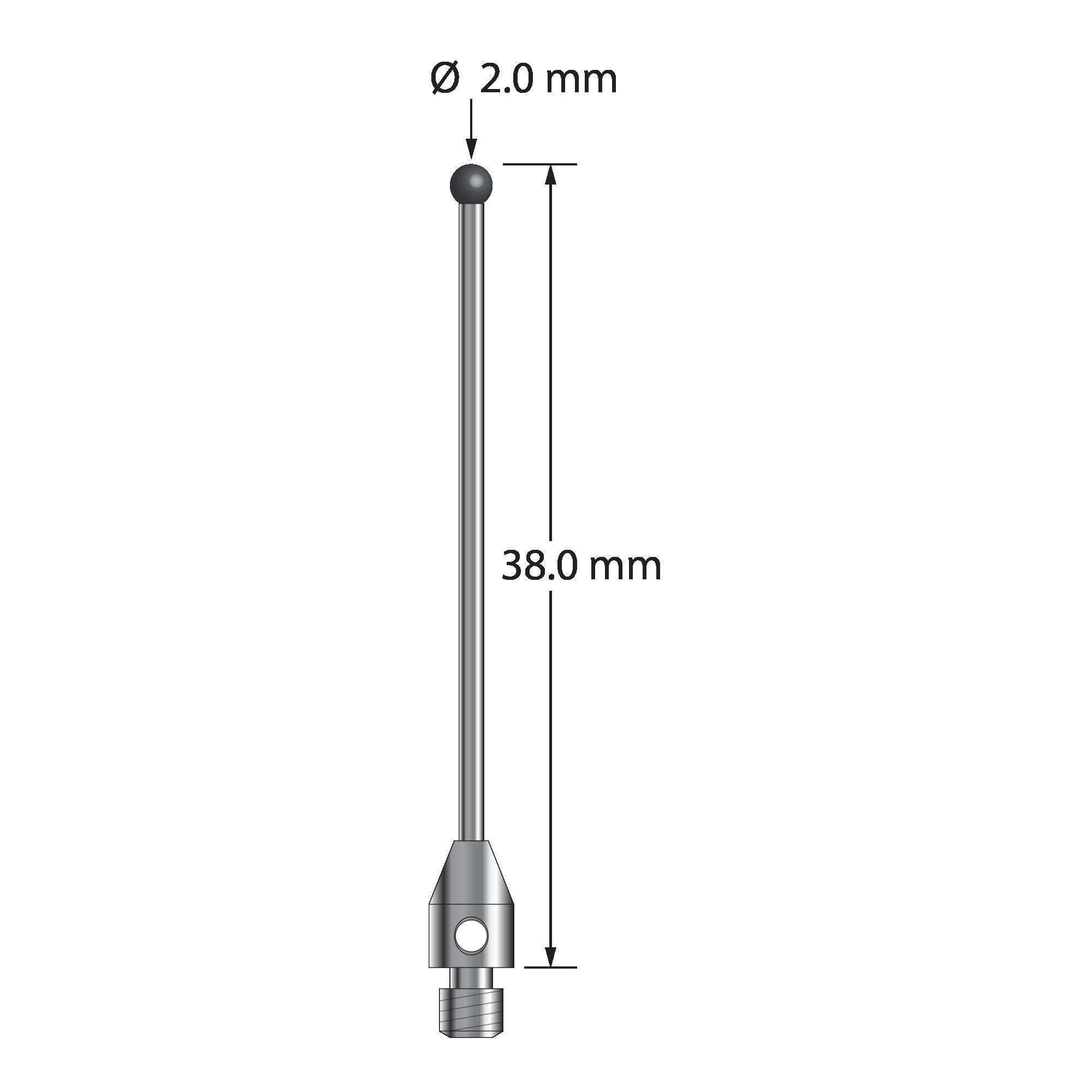

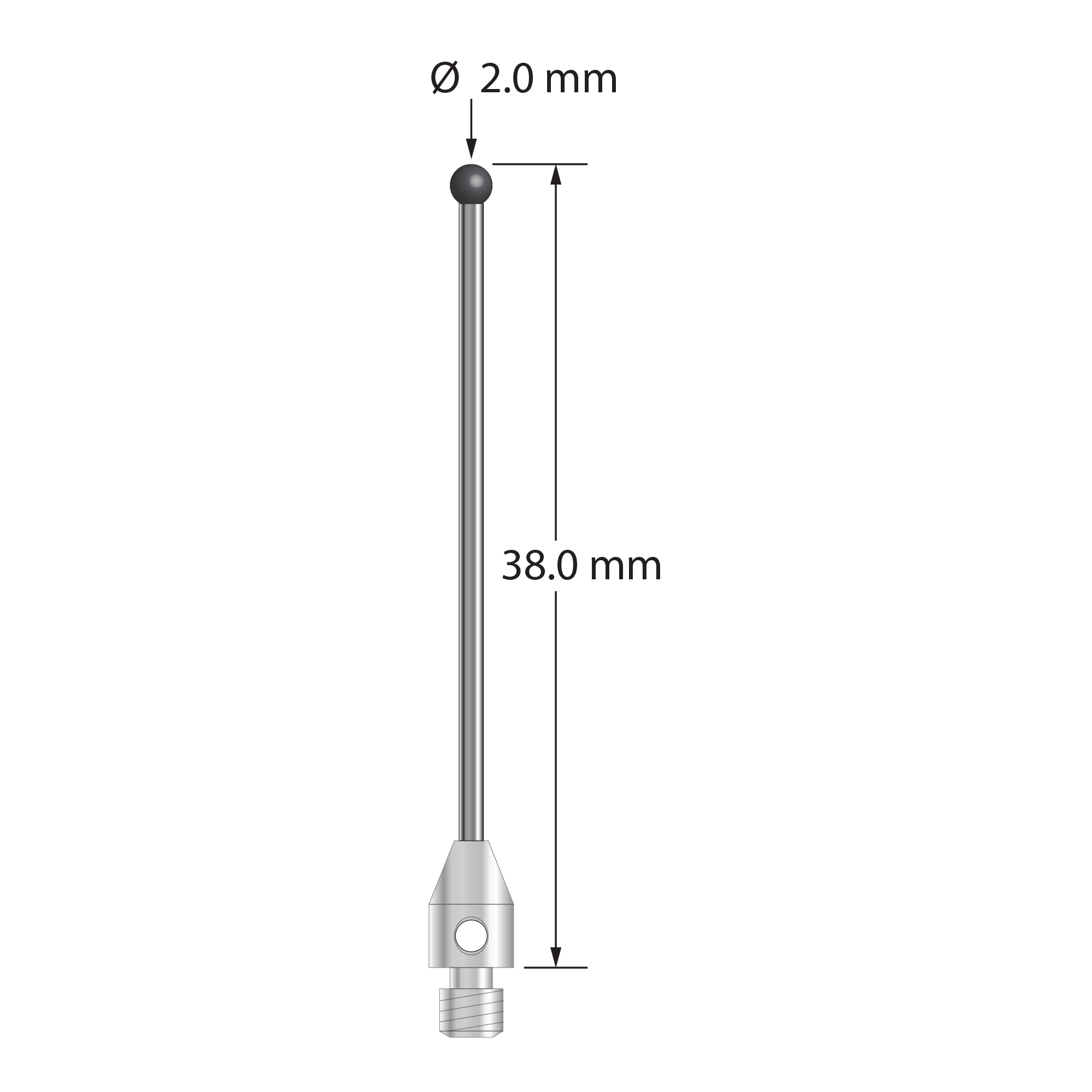

M3 stylus with 2.0 mm diameter silicon nitride ball, 1.0 mm diameter carbide stem, and 4.0 mm diameter by 6.0 mm long stainless steel base. Overall stylus length is 38.0 mm. Stylus weight is 0.81 gram. Compare to Zeiss 626123-0245-038.

Dimensions

ball diameter: 2.0

base diameter: 4.0

length 1: 38.0

length 2: 32.0

stem diameter: 1.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
