Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

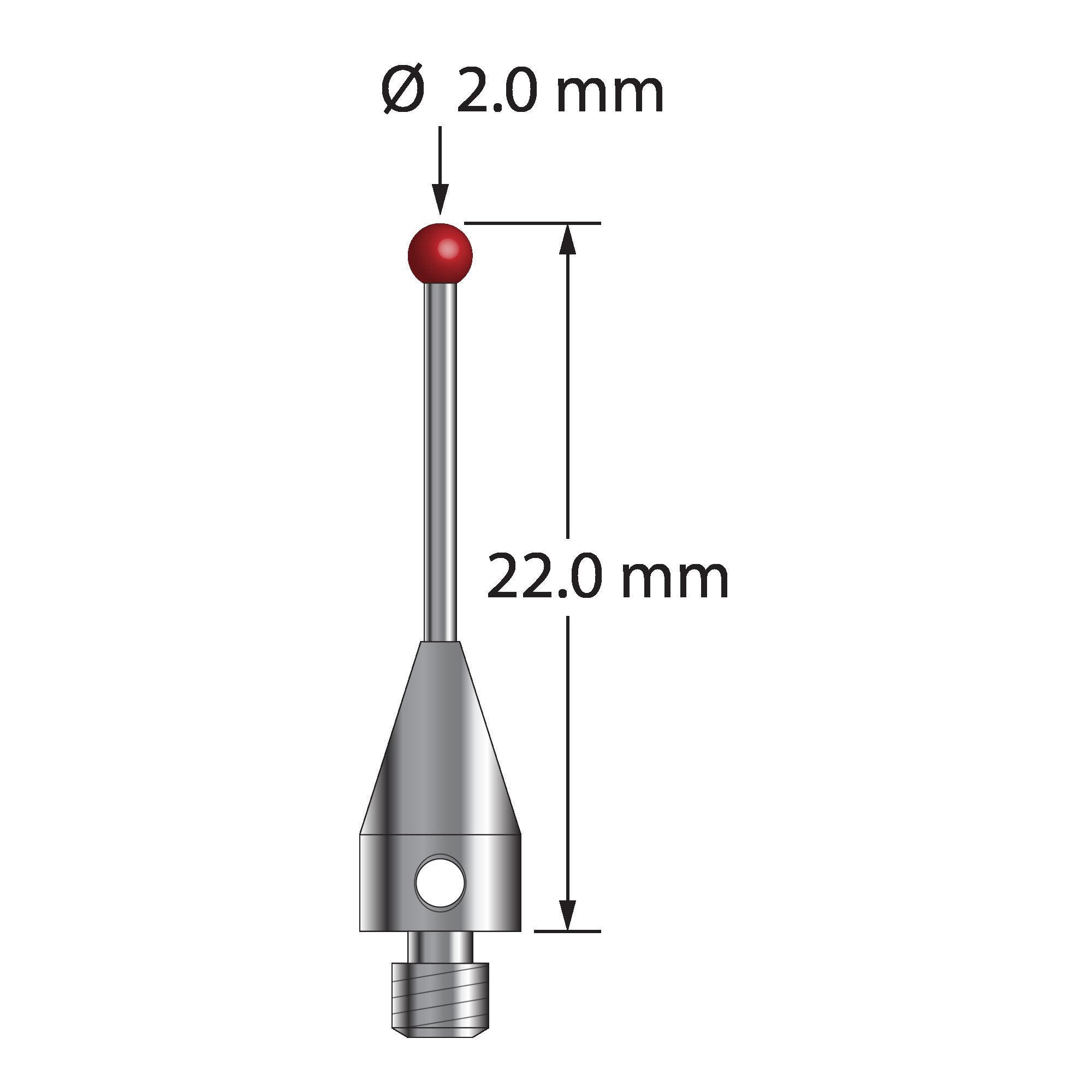

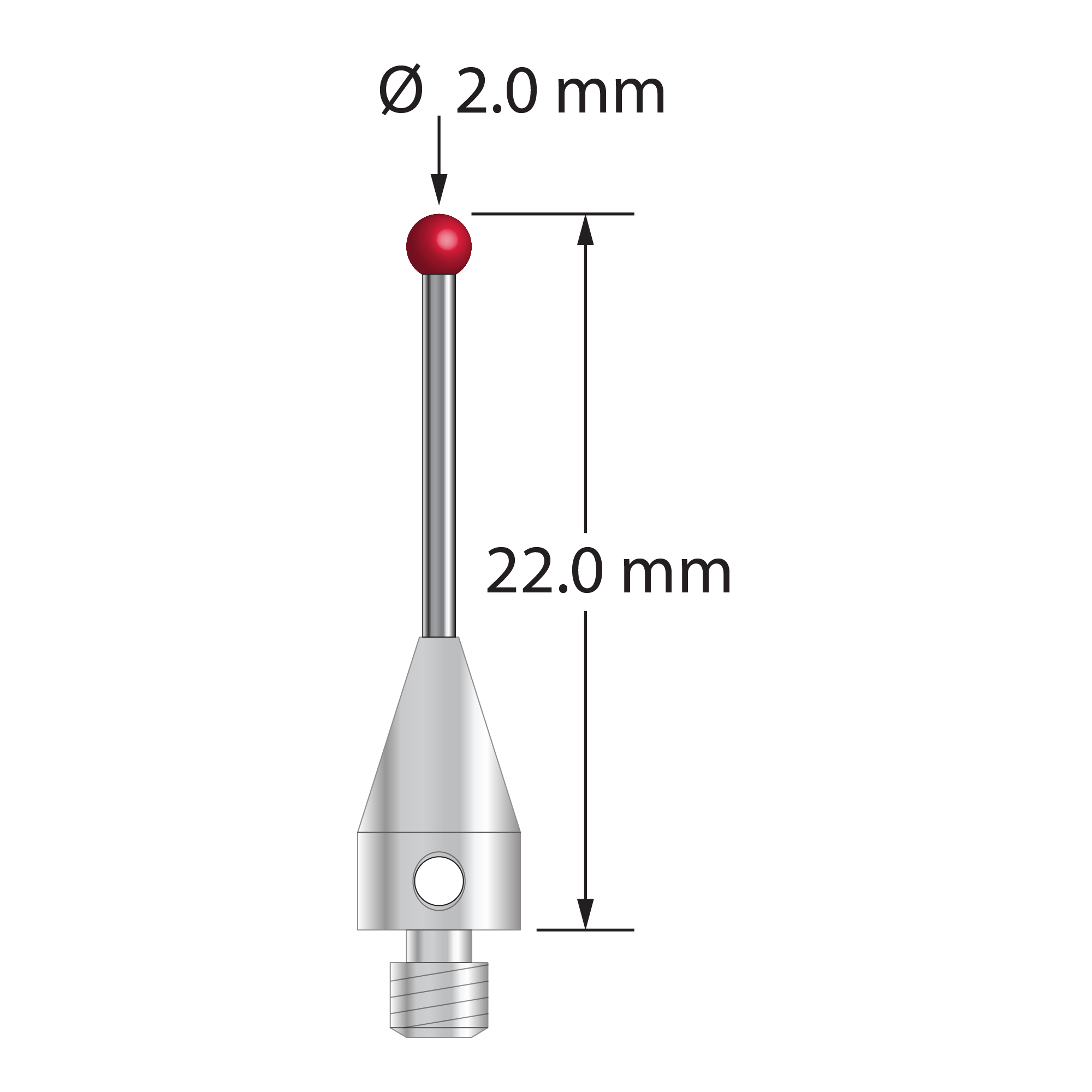

M3 XXT stylus with 2.0 mm diameter ruby ball, 1.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 22.0 mm. Stylus weight is 0.67 gram. Compare to Zeiss 626103-0244-022.

TM3-2022-TX

Name: TM3-2022-TX
Brand: Q-Mark Manufacturing Inc.
Price: 82.0 USD
Availability: InStock

$82.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

M3 XXT stylus with 2.0 mm diameter ruby ball, 1.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 22.0 mm. Stylus weight is 0.67 gram. Compare to Zeiss 626103-0244-022.

Dimensions

ball diameter: 2.0

base diameter: 5.0

length 1: 22.0

length 2: 13.0

stem diameter: 1.0

Materials

ball material: Ruby

base material: Titanium

stem material: Carbide
