TM3-1570-TX-SN
TM3-1570-TX-SN

TM3-1570-TX-SN

$115.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

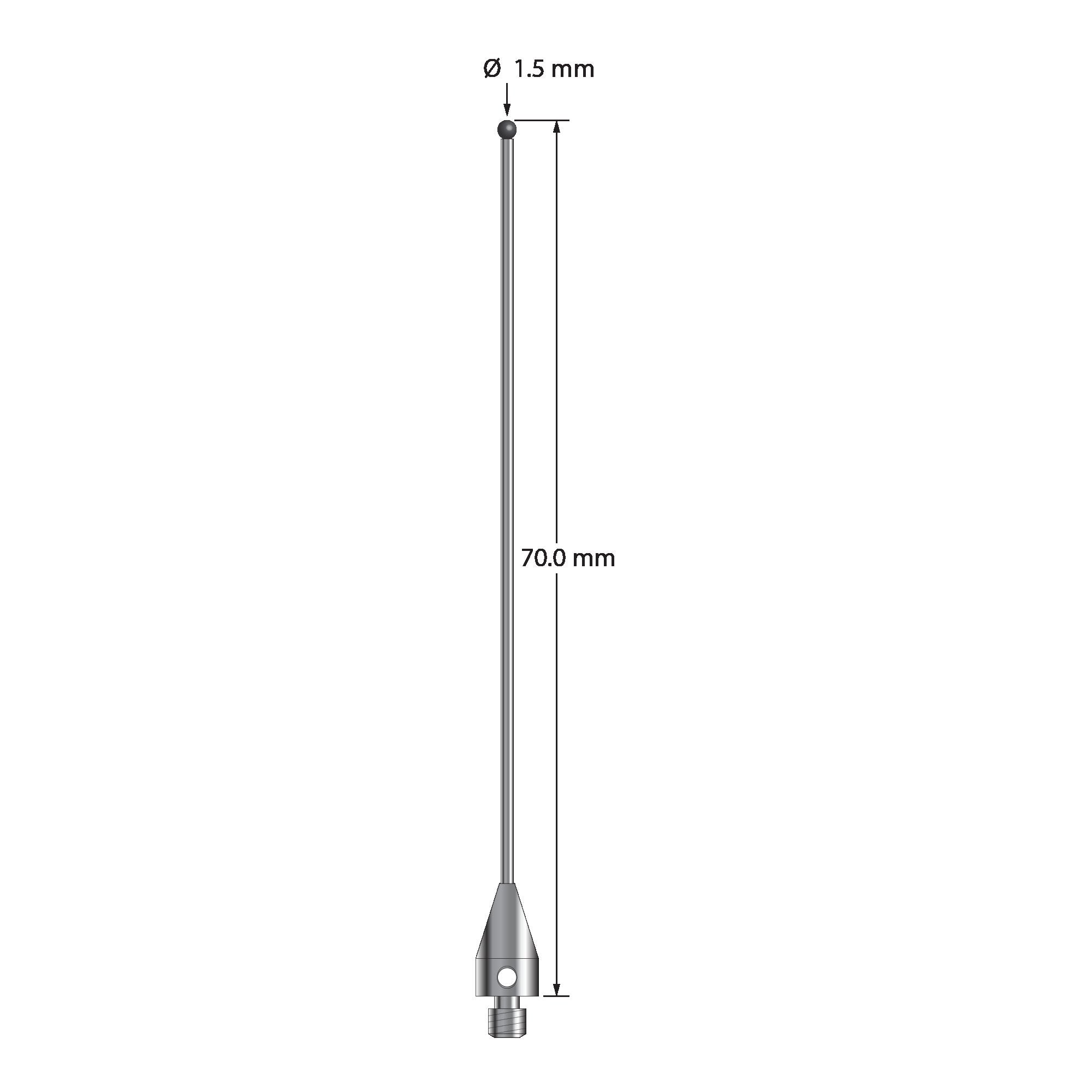

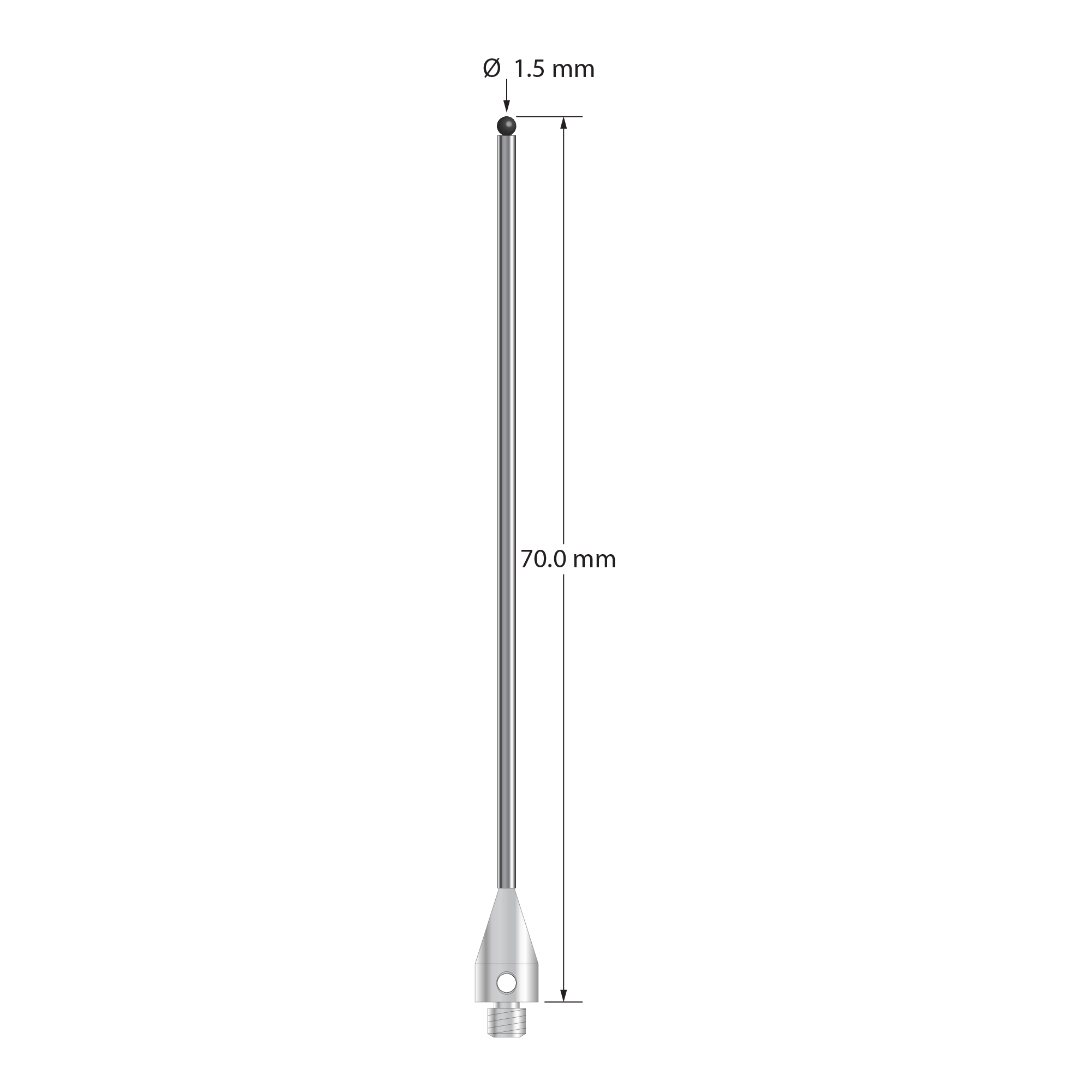

M3 XXT stylus with 1.5 mm diameter silicon nitride ball, 1.0 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 70.0 mm. Stylus weight is 1.29 grams. Compare to Zeiss 626113-0151-070.

Dimensions

ball diameter: 1.5
base diameter: 5.0
length 1: 70.0
length 2: 61.0
stem diameter: 1.0

Materials

ball material: Silicon Nitride
base material: Titanium
stem material: Carbide
