TM3-1530-Z

Name: TM3-1530-Z
Brand: Q-Mark Manufacturing Inc.
Price: 80.0 USD
Availability: InStock

$80.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

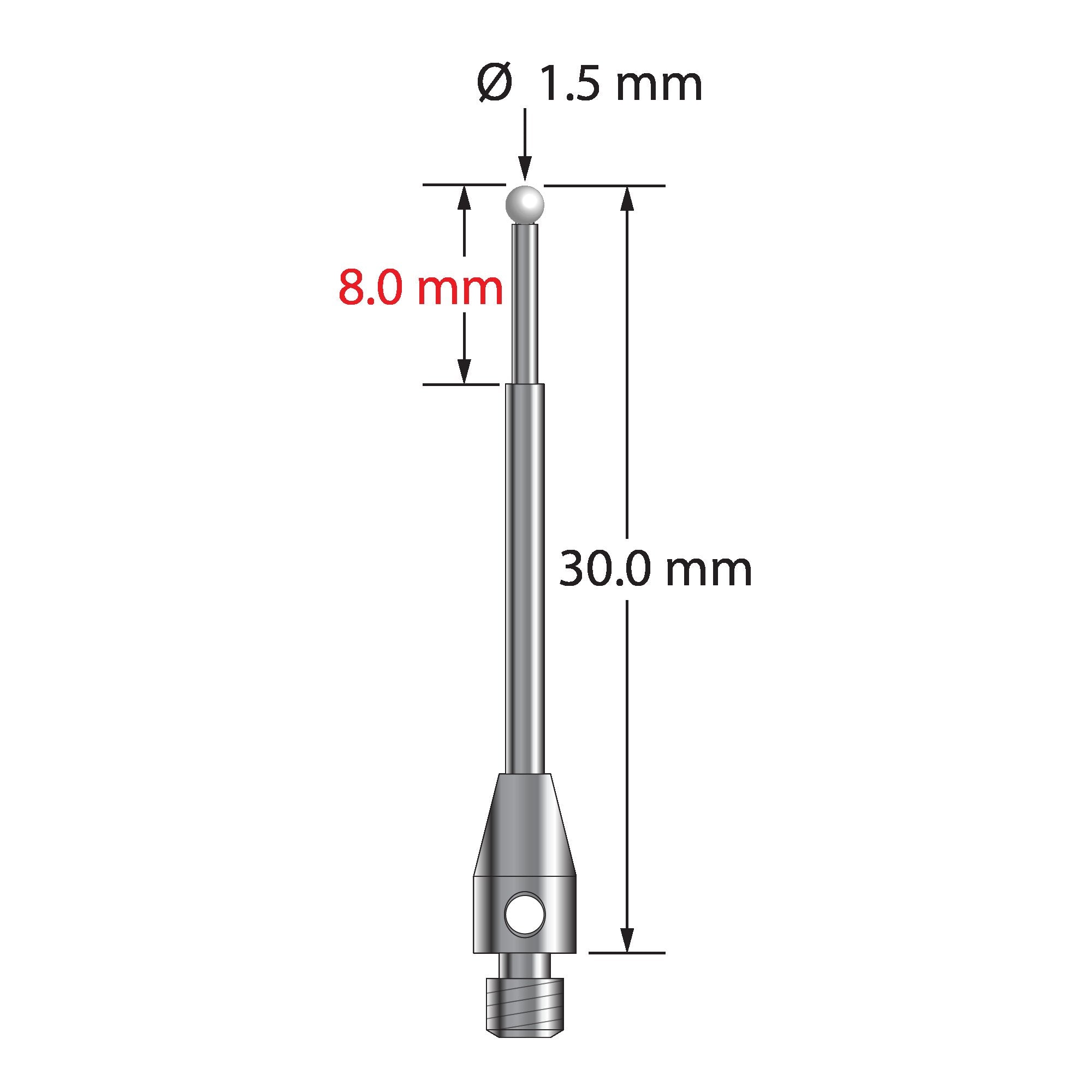

M3 stylus with 1.5 mm diameter zirconia ball, stepped carbide stem, and 4.0 mm diameter x 8.0 mm long stainless steel base. Minor stem diameter is 1.0 mm, major stem diameter is 1.5 mm. Overall stylus length is 30.0 mm. Stylus weight is 0.90 gram.

Dimensions

ball diameter: 1.5

base diameter: 4.0

length 1: 30.0

length 2: 22.0

stem diameter: 1.5

stem step diameter: 1.0

Materials

ball material: Zirconia

base material: Stainless Steel

stem material: Carbide
