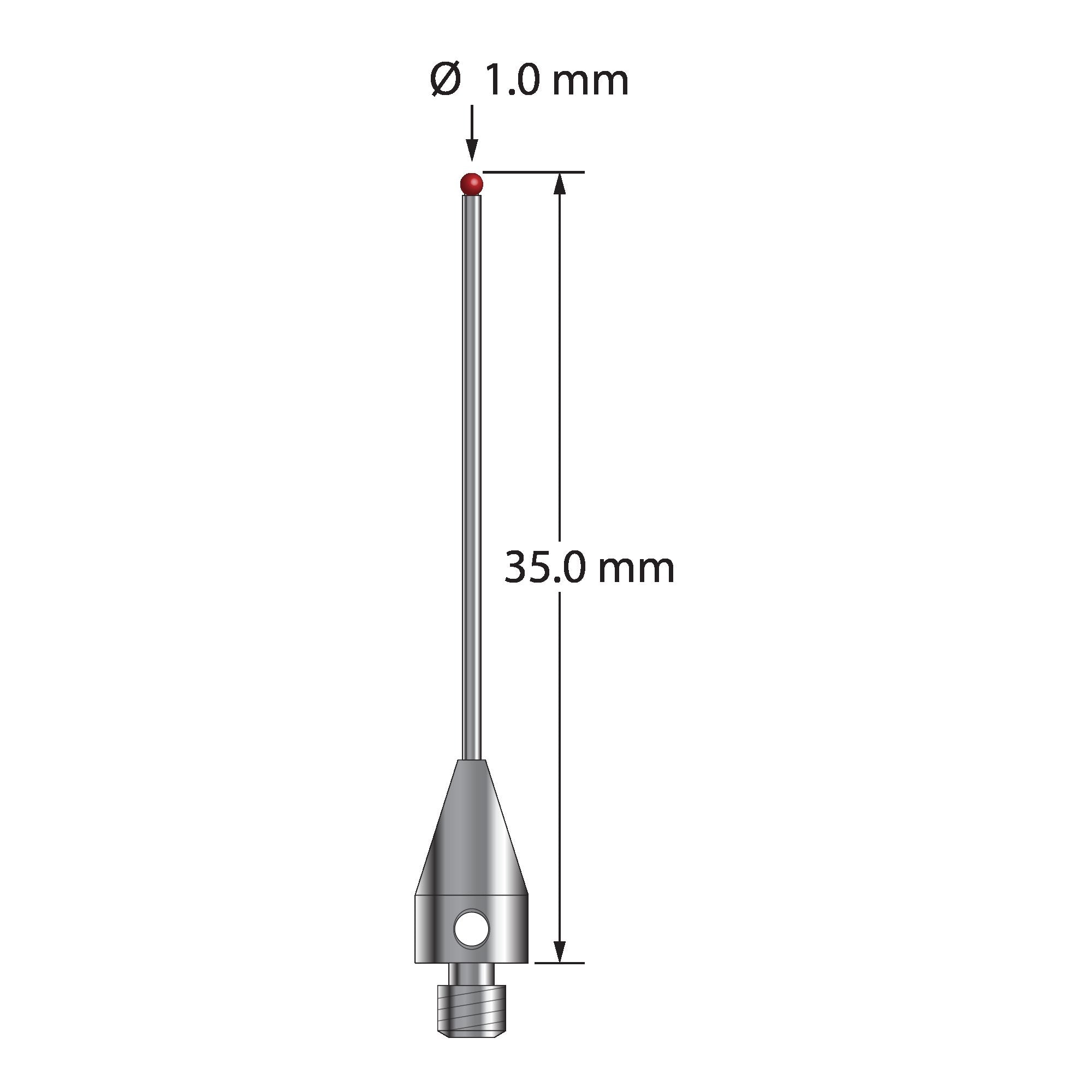

M3 stylus with 1.0 mm diameter ruby ball, 0.8 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 35.0 mm. Stylus weight is 0.82 gram.

TM3-1035-TX-8

Name: TM3-1035-TX-8
Brand: Q-Mark Manufacturing Inc.
Price: 79.0 USD
Availability: InStock

$79.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

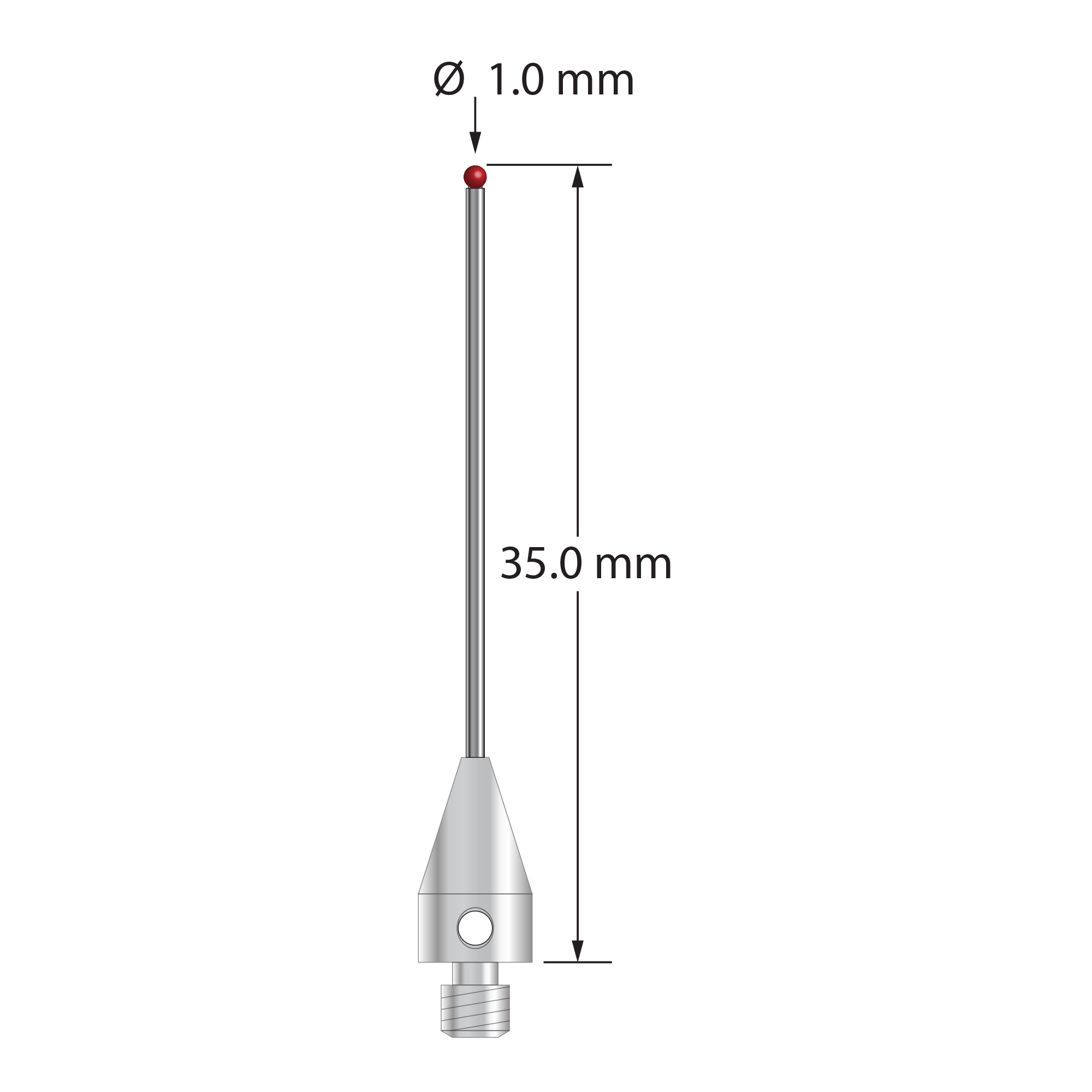

M3 XXT stylus with 1.0 mm diameter ruby ball, 0.8 mm diameter carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Overall stylus length is 35.0 mm. Stylus weight is 0.82 gram.

Dimensions

ball diameter: 1.0

base diameter: 5.0

length 1: 35.0

length 2: 26.0

stem diameter: 0.8

Materials

ball material: Ruby

base material: Titanium

stem material: Carbide
