TM3-1031-TX-Z

Name: TM3-1031-TX-Z
Brand: Q-Mark Manufacturing Inc.
Price: 94.0 USD
Availability: InStock

$94.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

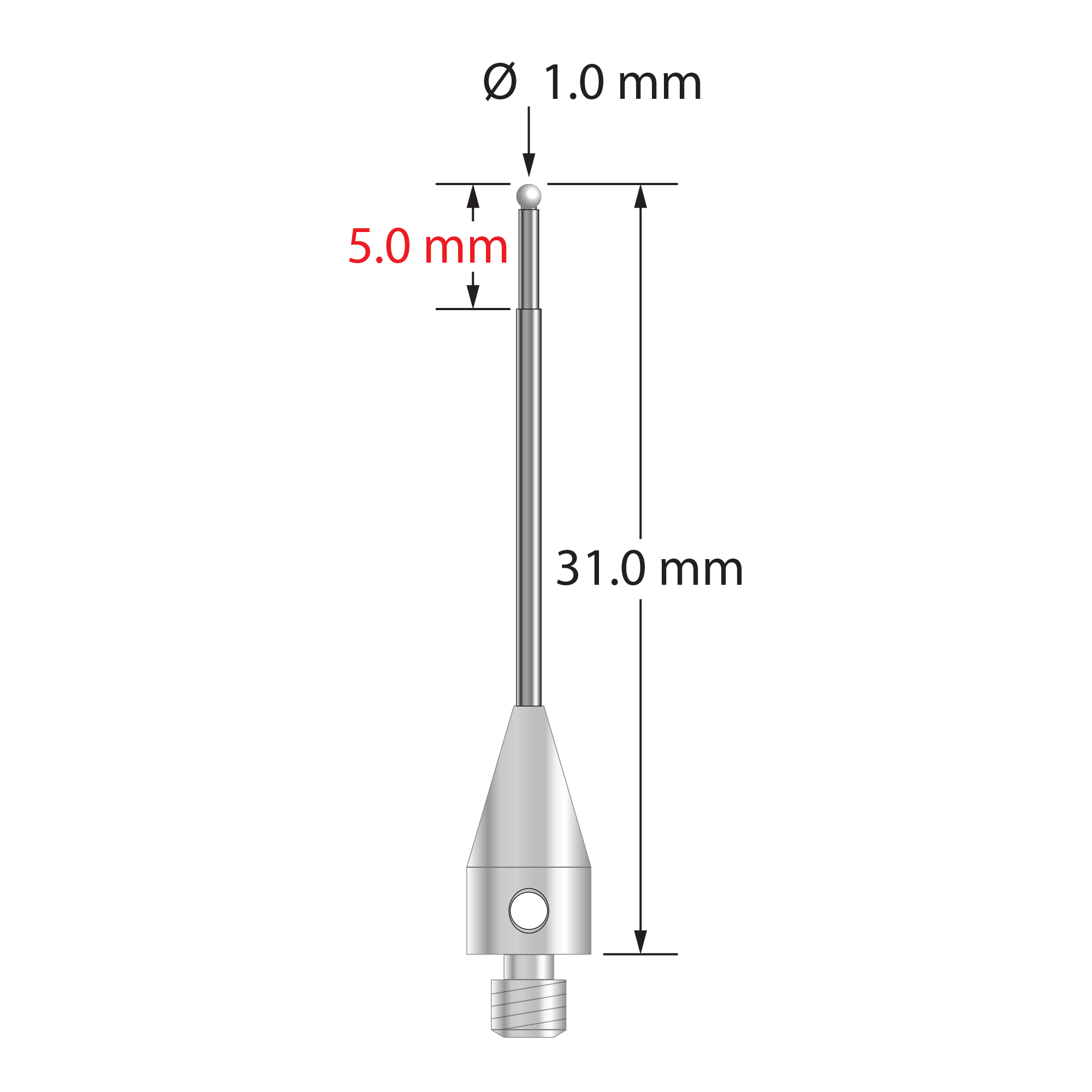

M3 XXT stylus with 1.0 mm diameter zirconia ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Minor stem diameter is 0.8 mm, major diameter is 1.0 mm. Stylus weight is 0.77 gram.

Dimensions

ball diameter: 1.0

base diameter: 5.0

length 1: 31.0

length 2: 22.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.8

Materials

ball material: Zirconia

base material: Titanium

stem material: Carbide
