TM3-1027-DS.8

Name: TM3-1027-DS.8
Brand: Q-Mark Manufacturing Inc
SKU: TM3-1027-DS.8
Price: 115.0 USD
Availability: InStock

$115.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

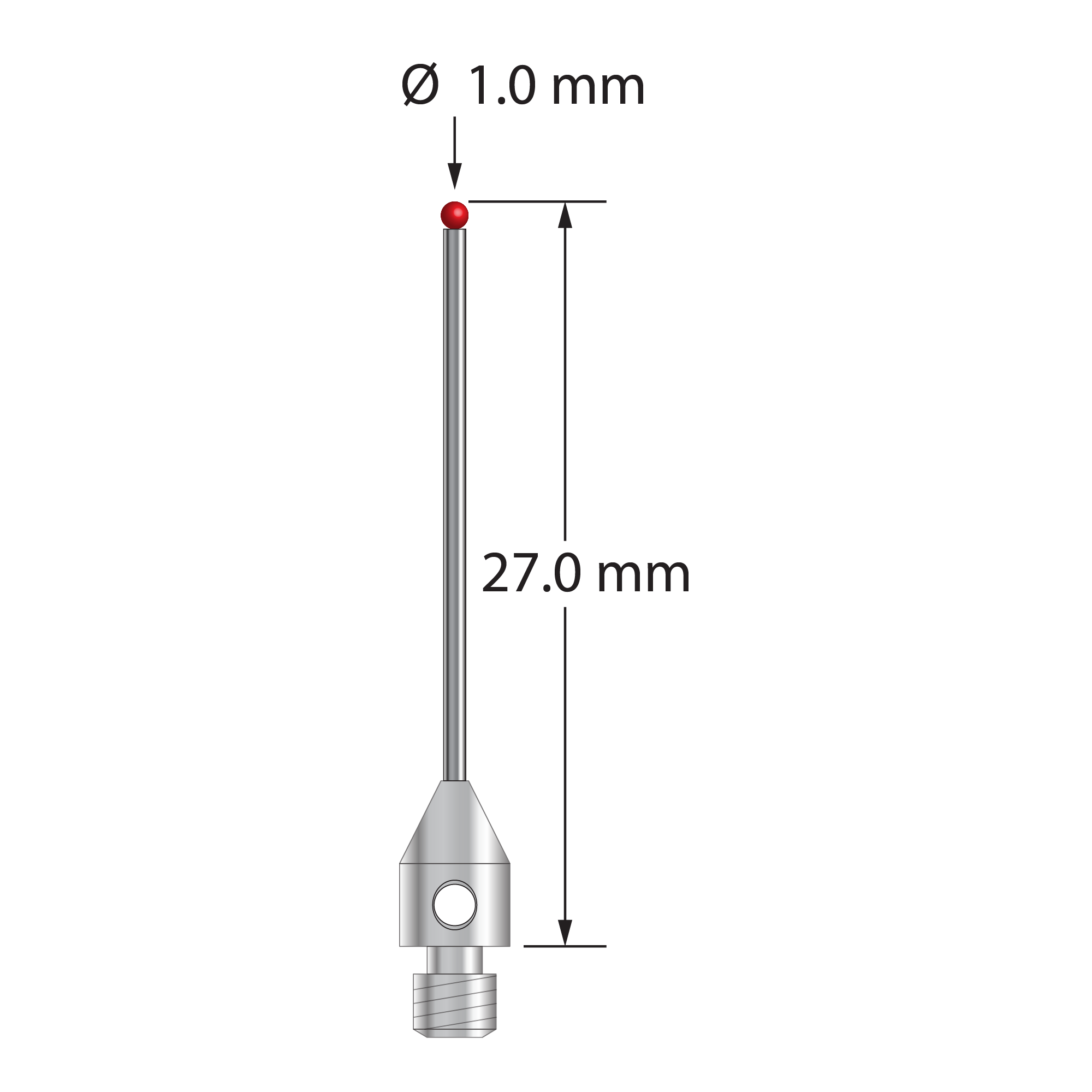

M3 stylus with 1.0 mm diameter ruby ball, 0.8 mm diameter carbide stem, and 4.0 mm diameter x 6.0 mm long stainless steel base. Overall stylus length is 27.0 mm. Stylus weight is 0.68 gram. Compare to Zeiss 626113-0100-027.

Dimensions

ball diameter: 1.0

base diameter: 4.0

length 1: 27.0

length 2: 21.0

stem diameter: 0.8

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
