TM3-1024-06-SN

Name: TM3-1024-06-SN
Brand: Q-Mark Manufacturing Inc.
Price: 58.0 USD
Availability: InStock

$58.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

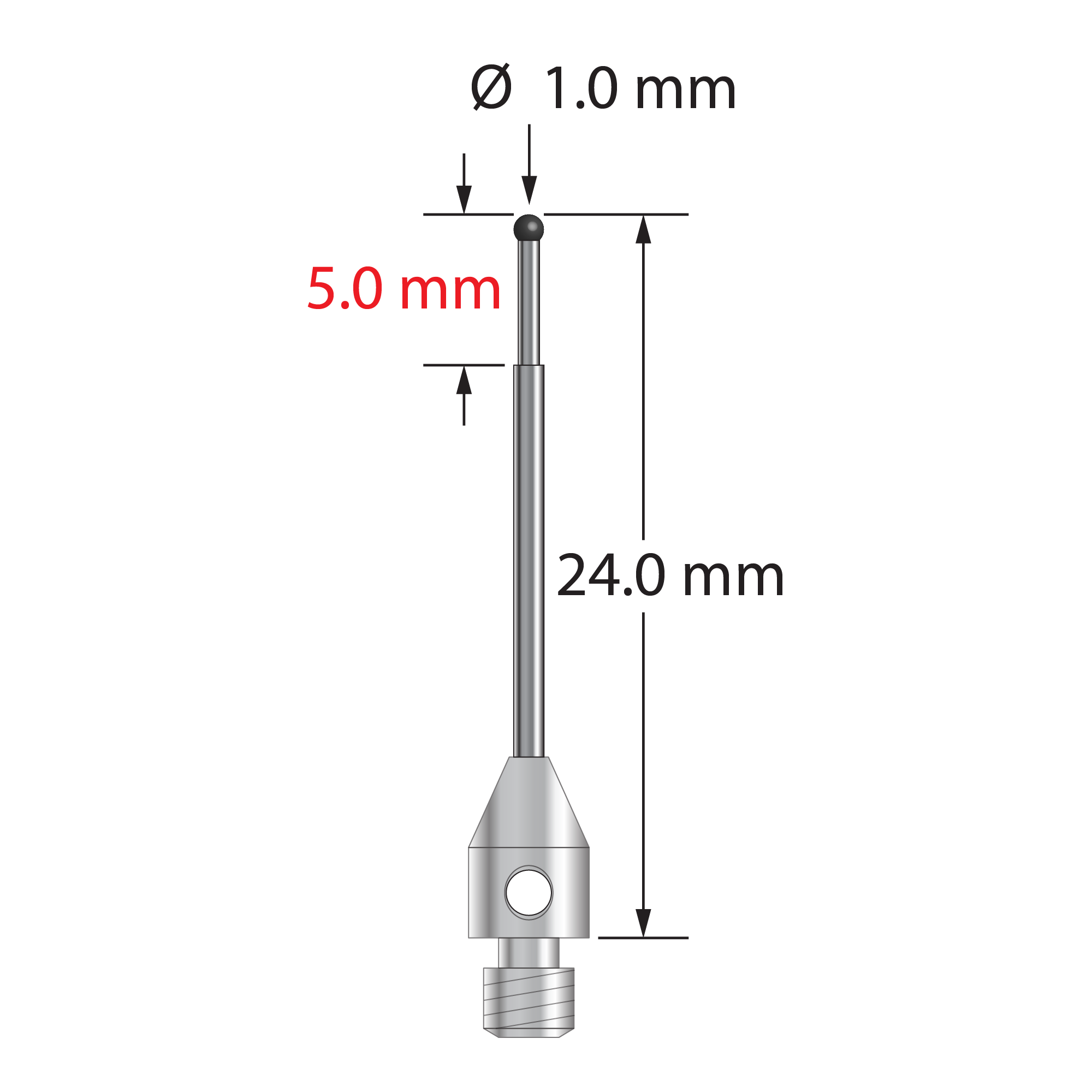

M3 stylus with 1.0 mm diameter silicon nitride ball, carbide stem, and 4.0 mm diameter by 6.0 mm long stainless steel base. Minor stem diameter is 0.8 mm, major stem diameter is 1.0 mm. Overall stylus length is 24.0 mm. Stylus weight is 0.66 gram. Compare to Zeiss 626123-0045-024.

Dimensions

ball diameter: 1.0

base diameter: 4.0

length 1: 24.0

length 2: 18.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.8

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
