TM3-1021.5-DS.8-SN

$71.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

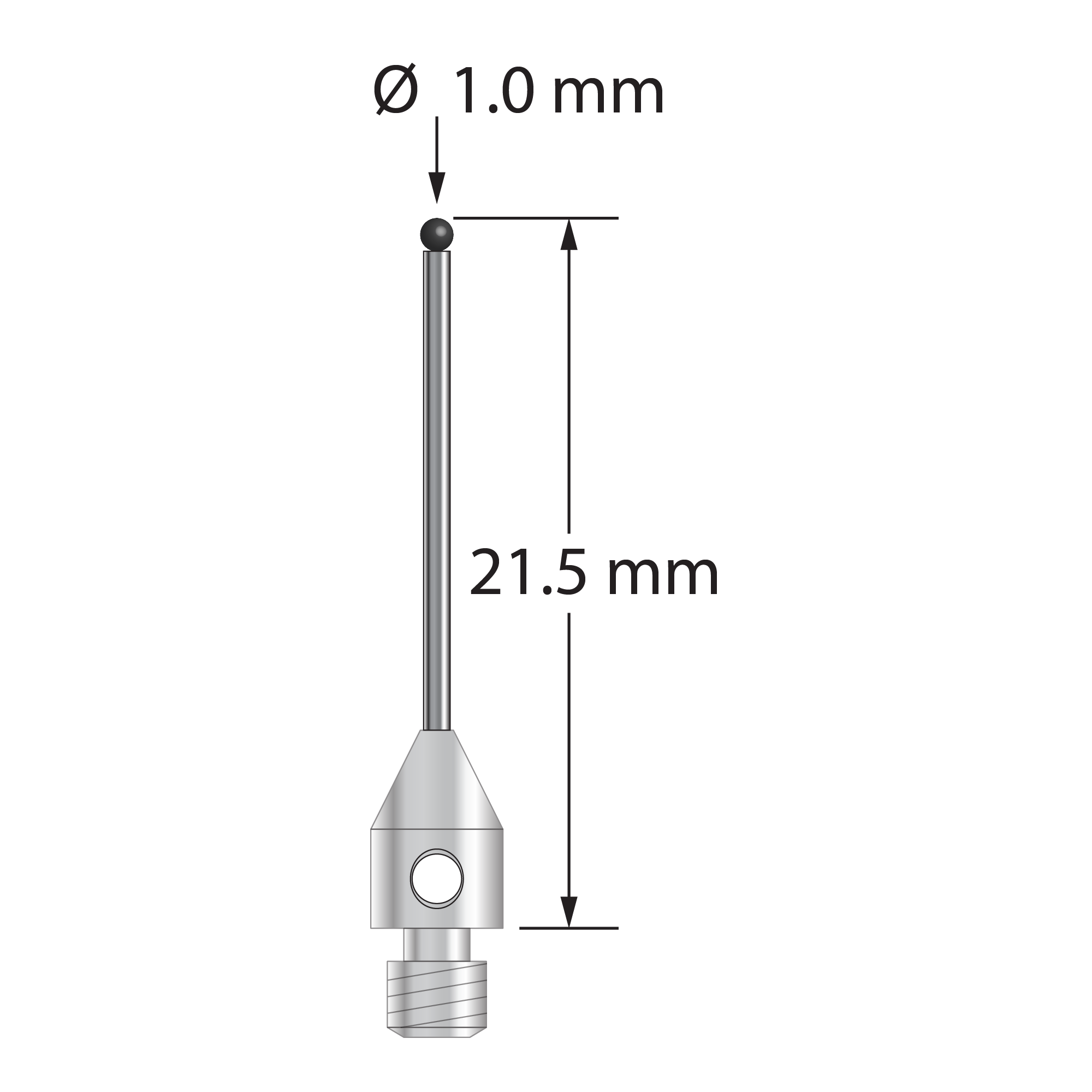

M3 stylus with 1.0 mm diameter silicon nitride ball, 0.8 mm diameter carbide stem, and 4.0 mm diameter x 6.0 mm long stainless steel base.  Overall stylus length is 21.5 mm.  Stylus weight is 0.64 gram.

Dimensions

ball diameter: 1.0
base diameter: 4.0
length 1: 21.5
length 2: 15.5
stem diameter: 0.8

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
