TM3-1021

Name: TM3-1021
Brand: Q-Mark Manufacturing Inc
SKU: TM3-1021
Price: 50.0 USD
Availability: InStock

$50.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

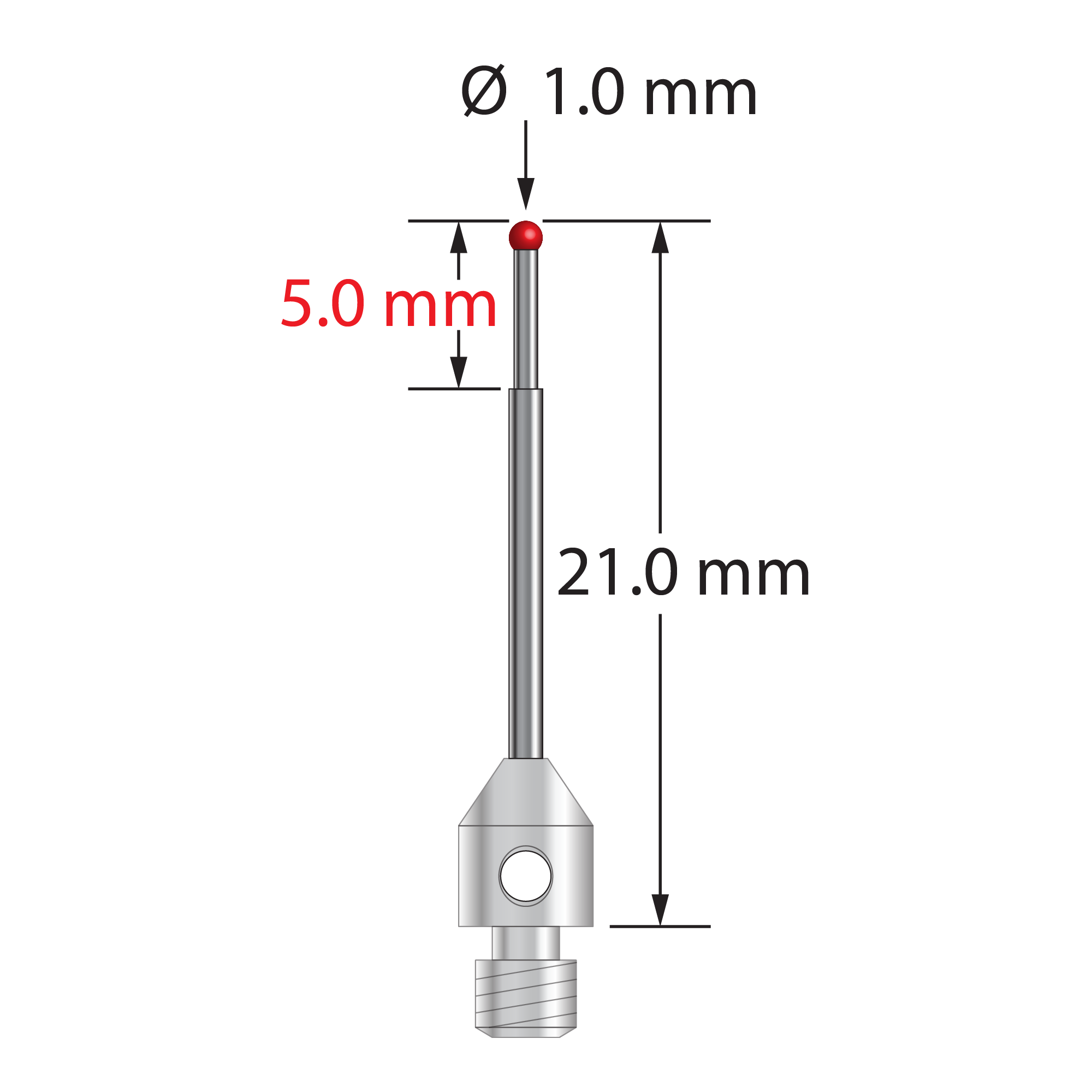

M3 stylus with 1.0 mm diameter ruby ball, stepped carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.7 mm, major diameter is 1.0 mm. Stylus length to ball center is 20.0 mm. Stylus weight is 0.70 gram.

Dimensions

ball diameter: 1.0

base diameter: 4.0

length 1: 21.0

length 2: 16.0

length 3: 5.0

stem diameter: 1.0

stem step diameter: 0.7

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
