TM3-1020.5-H-S

Name: TM3-1020.5-H-S
Brand: Q-Mark Manufacturing Inc
Price: 120.0 USD
Availability: InStock

$120.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

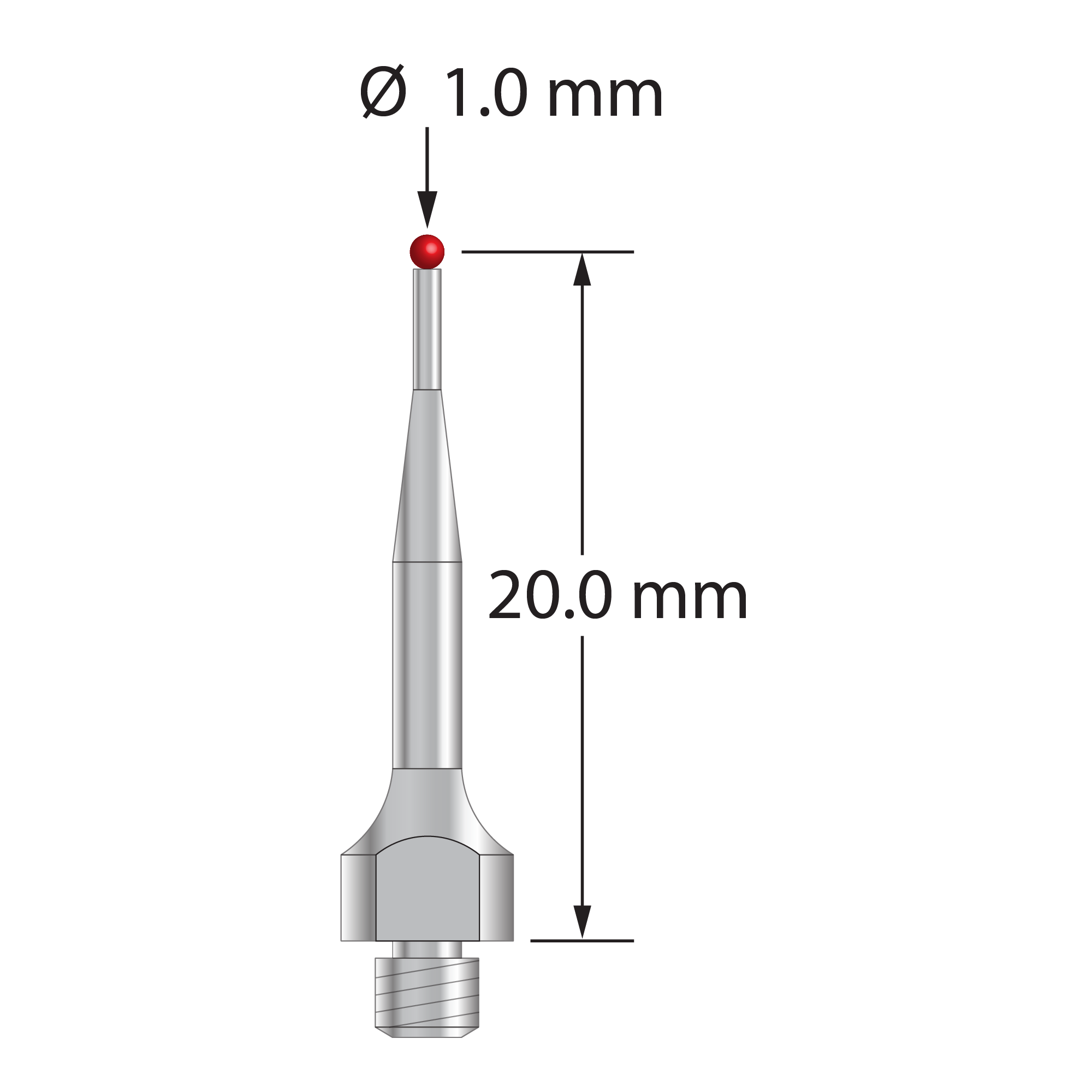

M3 stylus with 1.0 mm diameter ruby ball, tapered stainless steel stem and 5.0 mm diameter stainless steel base with 4.0 mm wrench flats for tightening. Stylus length to ball center is 20.0 mm. Compare to Hexagon M00-694-214-000.

Dimensions

ball diameter: 1.0

base diameter: 5.0

length 1: 20.5

length 2: 15.5

stem diameter: 2.0

stem step diameter: 0.8

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Stainless Steel
