TM3-1015
TM3-1015

TM3-1015

$50.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

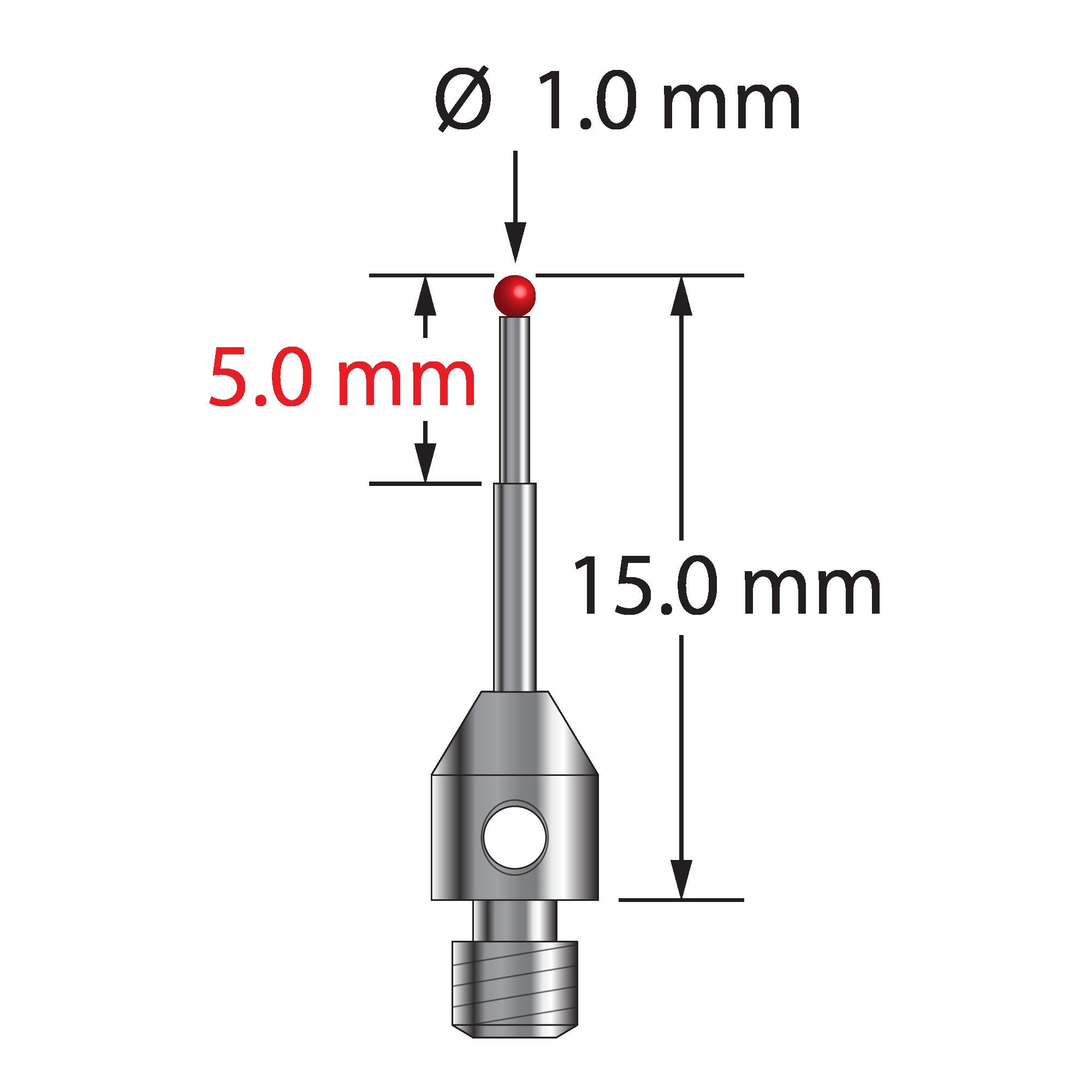

M3 stylus with 1.0 mm diameter ruby ball, stepped carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base.  Minor stem diameter is 0.7 mm, major diameter is 1.0 mm.  Overall length is 15.0 mm.  Stylus weight is 0.60 gram.

Dimensions

ball diameter: 1.0
base diameter: 4.0
length 1: 15.0
length 2: 10.0
length 3: 5.0
stem diameter: 1.0
stem step diameter: 0.7

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
