TM3-0840-TX

Name: TM3-0840-TX
Brand: Q-Mark Manufacturing Inc
Price: 79.0 USD
Availability: InStock

$79.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

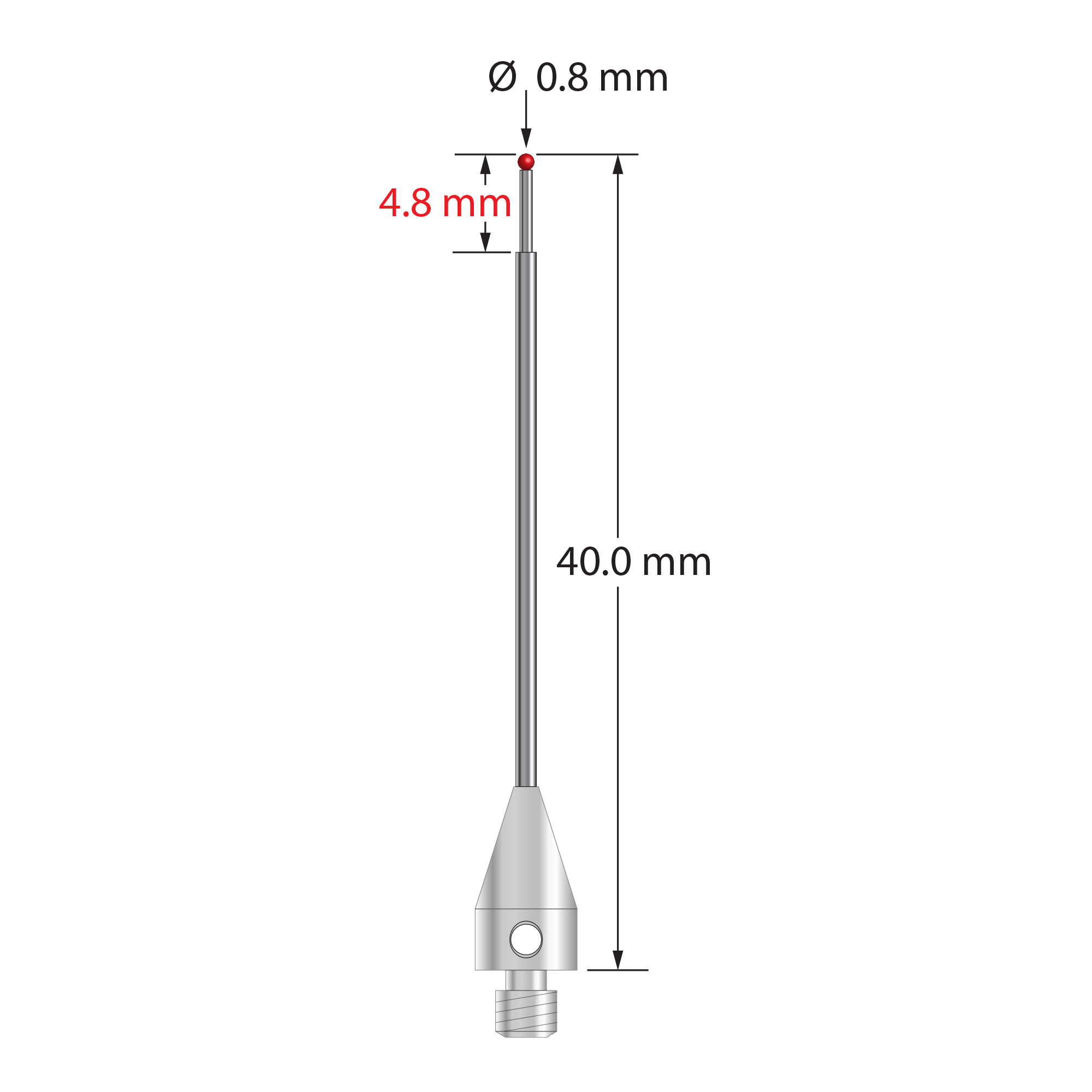

M3 XXT stylus with 0.8 mm diameter ruby ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Minor stem diameter is 0.6 mm, major diameter is 1.0 mm. Overall stylus length is 40.0 mm. Stylus weight is 0.80 gram.

Dimensions

ball diameter: 0.8

base diameter: 5.0

length 1: 40.0

length 2: 31.0

length 3: 4.8

stem diameter: 1.0

stem step diameter: 0.6

Materials

ball material: Ruby

base material: Titanium

stem material: Carbide
