TM3-0820-TX

$80.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

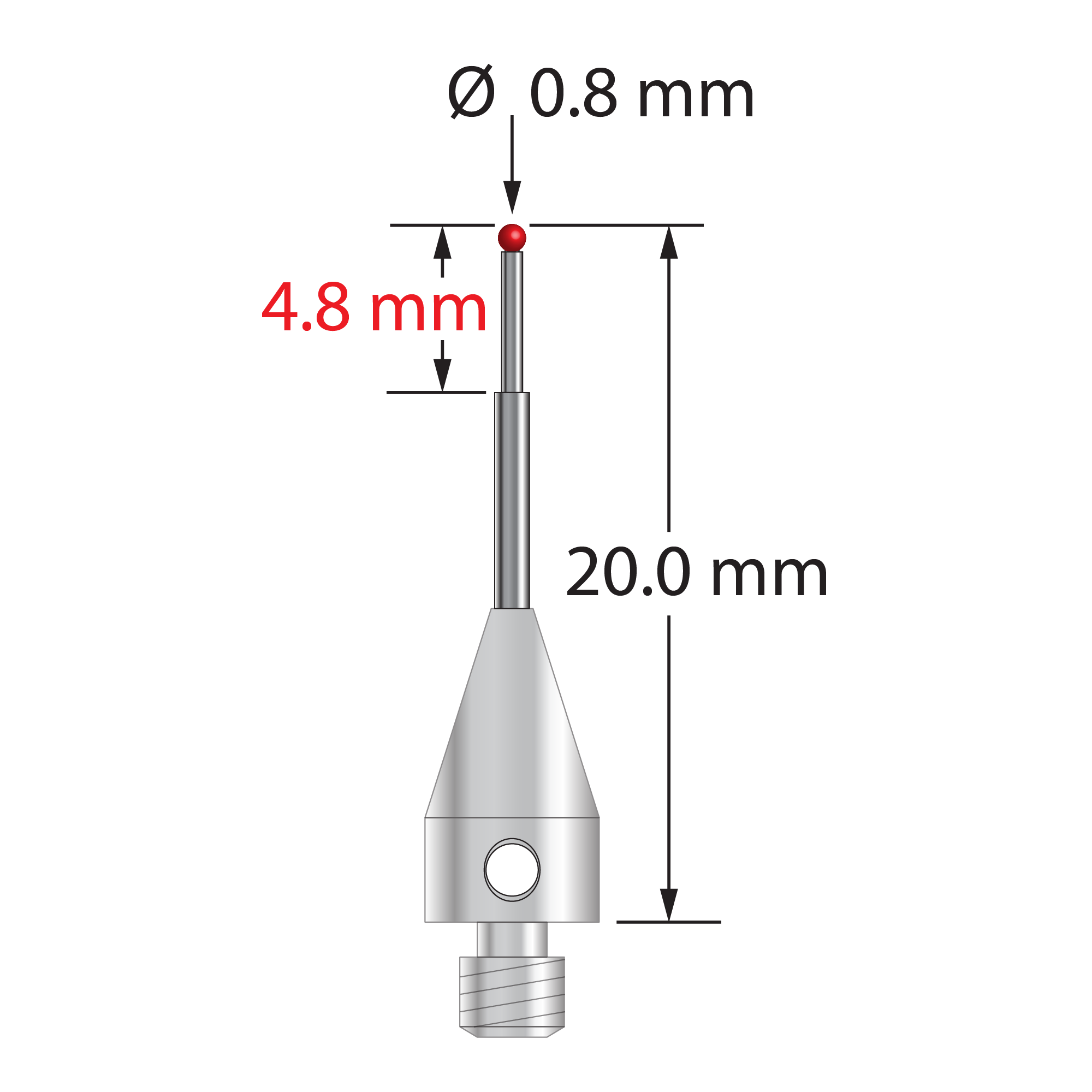

M3 stylus with 0.8 mm diameter ruby ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base.  Major stem diameter is 1.0 mm, minor diameter is 0.6 mm.  Overall stylus length is 20.0 mm.  Stylus weight is 0.60 gram.  Compare to Zeiss 626113-0080-020.

Dimensions

ball diameter: 0.8
base diameter: 5.0
length 1: 20.0
length 2: 11.0
length 3: 4.8
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Ruby
base material: Titanium
stem material: Carbide
