TM3-0812-SN

$104.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

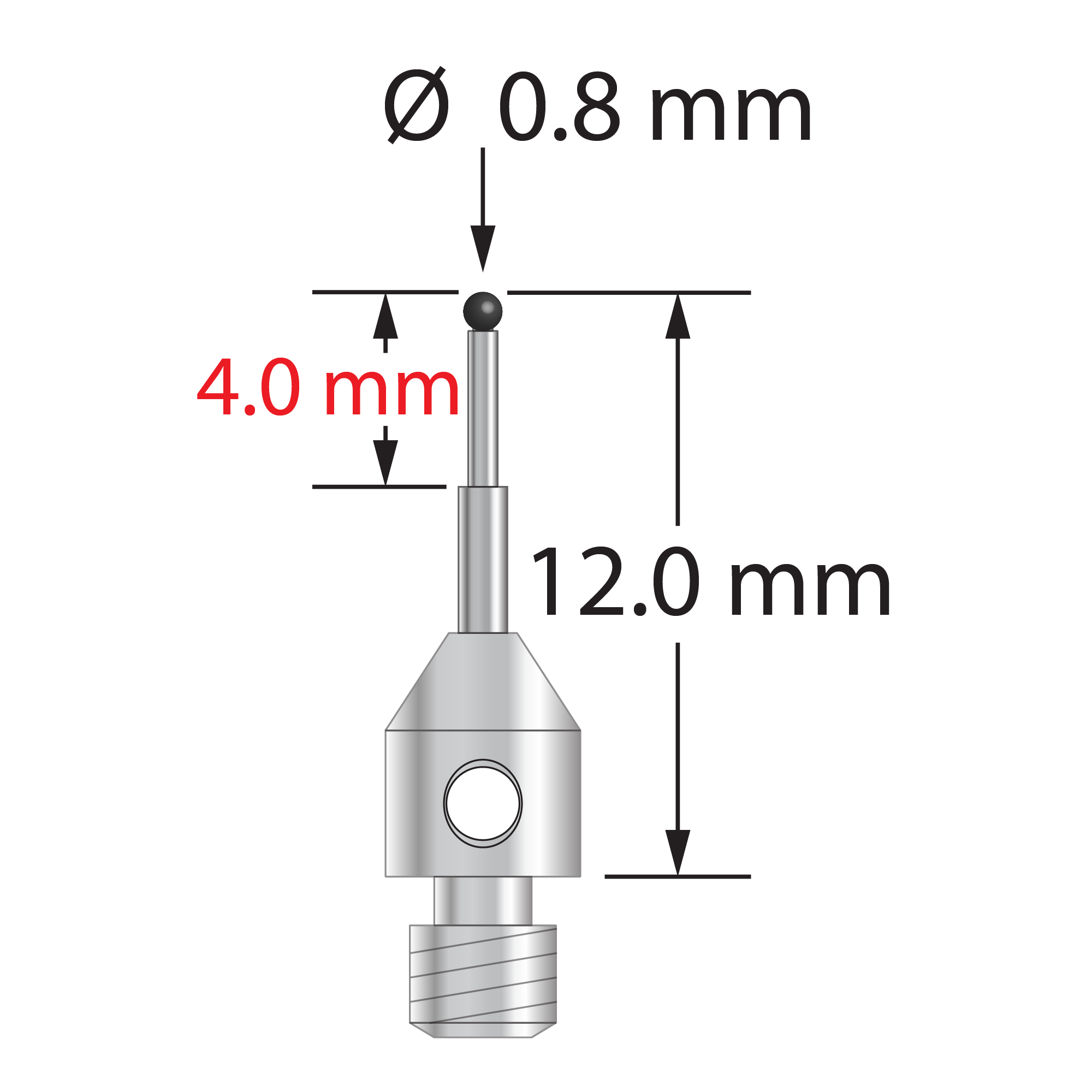

M3 stylus with 0.8 mm diameter silicon nitride ball, stepped carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base.  Major stem diameter is 1.0 mm, minor diameter is 0.6 mm.  Overall stylus length is 12.0 mm.  Stylus weight is 0.53 gram.

Dimensions

ball diameter: 0.8
base diameter: 4.0
length 1: 12.0
length 2: 7.0
length 3: 4.0
stem diameter: 1.0
stem step diameter: 0.6

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
