TM3-0720-TX

Name: TM3-0720-TX
Brand: Q-Mark Manufacturing Inc
Price: 215.0 USD
Availability: InStock

$215.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

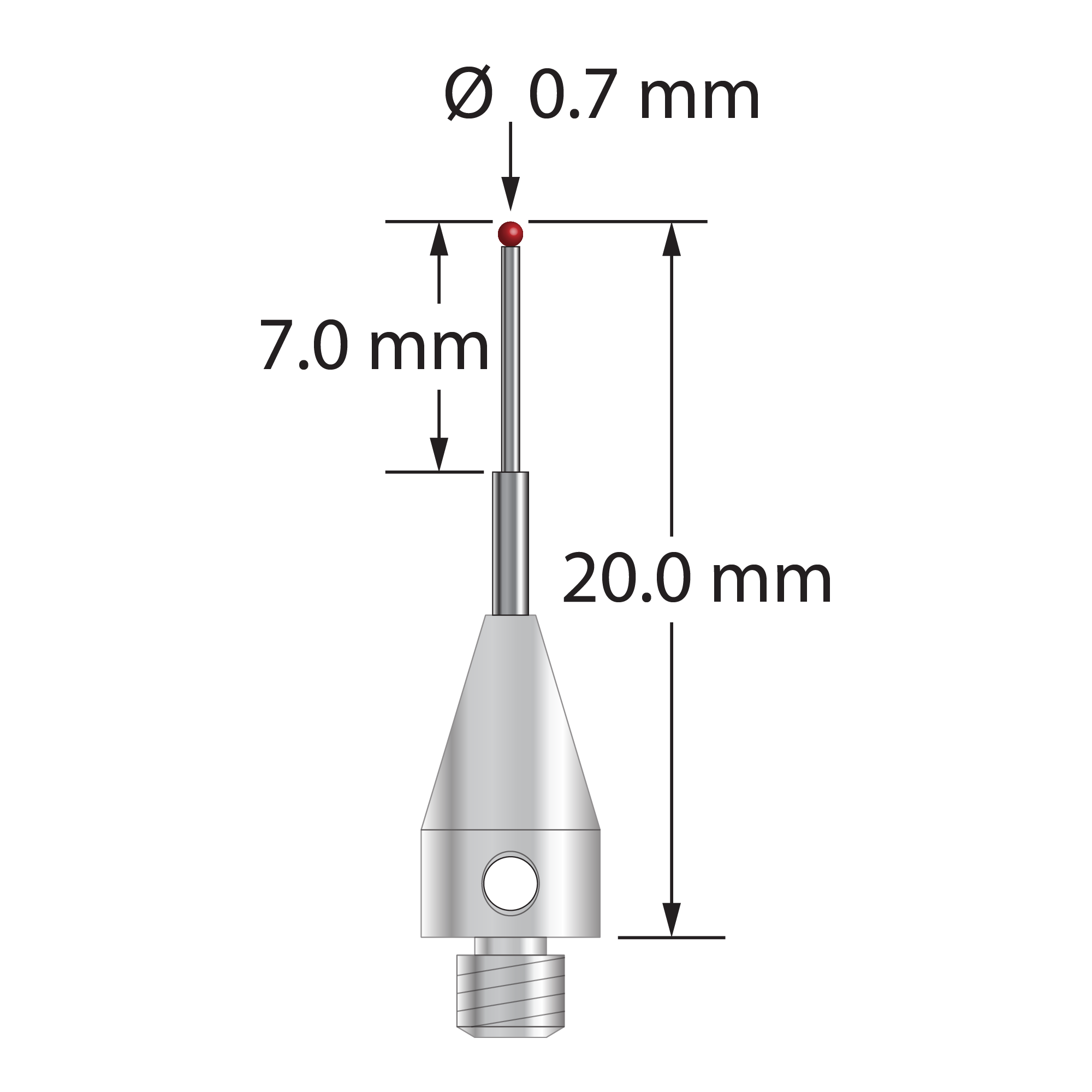

M3 XXT stylus with 0.7 mm diameter ruby ball, 5.0 mm diameter x 9.0 mm long titanium base, and stepped carbide stem. Minor stem diameter is 0.5 mm, major diameter is 1.0 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.72 gram. Compare to Zeiss 626113-0071-020.

Dimensions

ball diameter: 0.7

base diameter: 5.0

length 1: 20.0

length 2: 11.0

length 3: 7.0

stem diameter: 1.0

stem step diameter: 0.5

Materials

ball material: Ruby

base material: Titanium

stem material: Carbide
