TM3-0624-TX-SN

Name: TM3-0624-TX-SN
Brand: Q-Mark Manufacturing Inc.
Price: 122.0 USD
Availability: InStock

$122.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

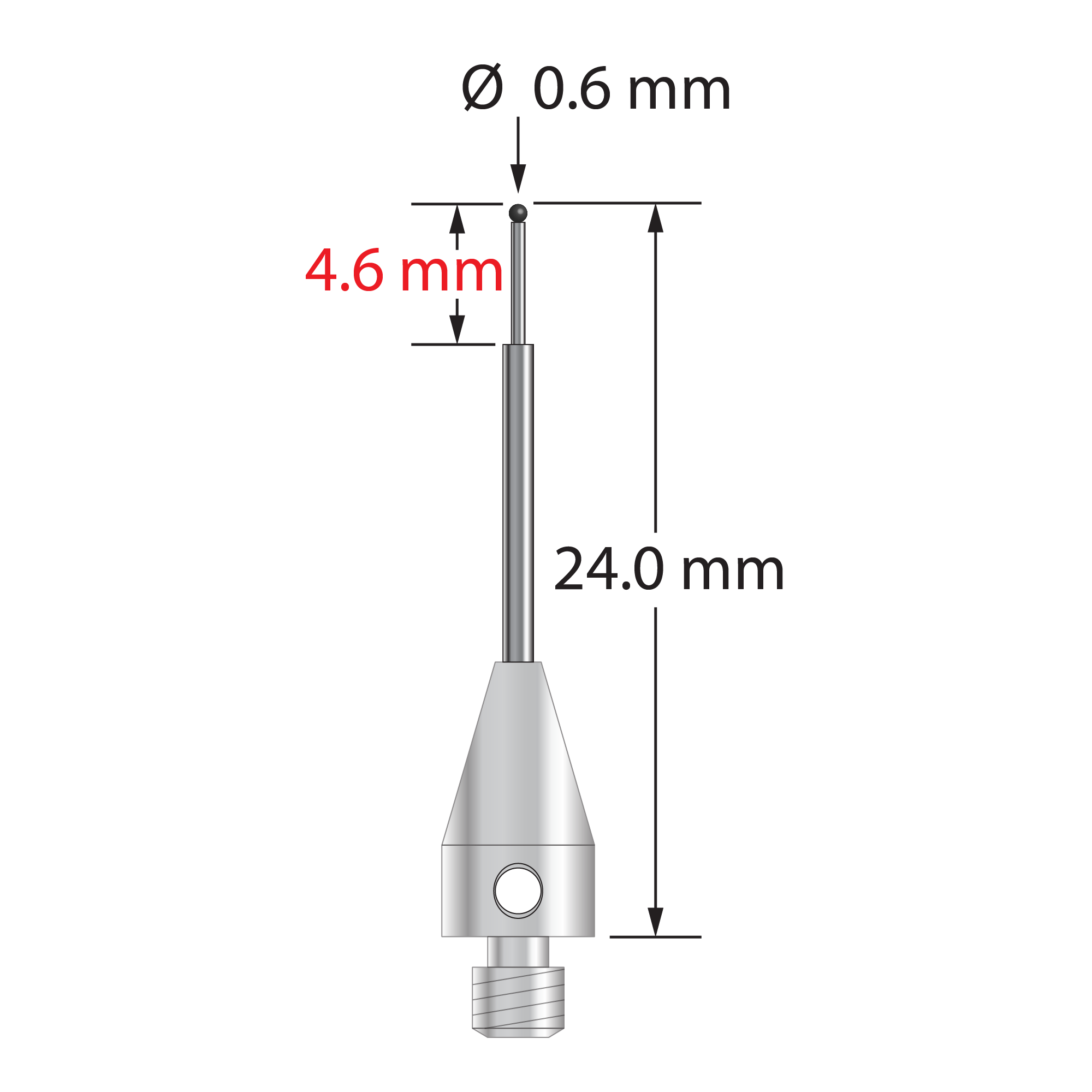

M3 XXT stylus with 0.6 mm diameter silicon nitride ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Major stem diameter is 1.0 mm, minor diameter is 0.4 mm. Overall stylus length is 24.0 mm. Stylus weight is 0.61 gram.

Dimensions

ball diameter: 0.6

base diameter: 5.0

length 1: 24.0

length 2: 15.0

length 3: 4.6

stem diameter: 1.0

stem step diameter: 0.4

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbide
