Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM3-0521.25-02-SN

Name: TM3-0521.25-02-SN
Brand: Q-Mark Manufacturing Inc
Price: 270.0 USD
Availability: InStock

$270.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

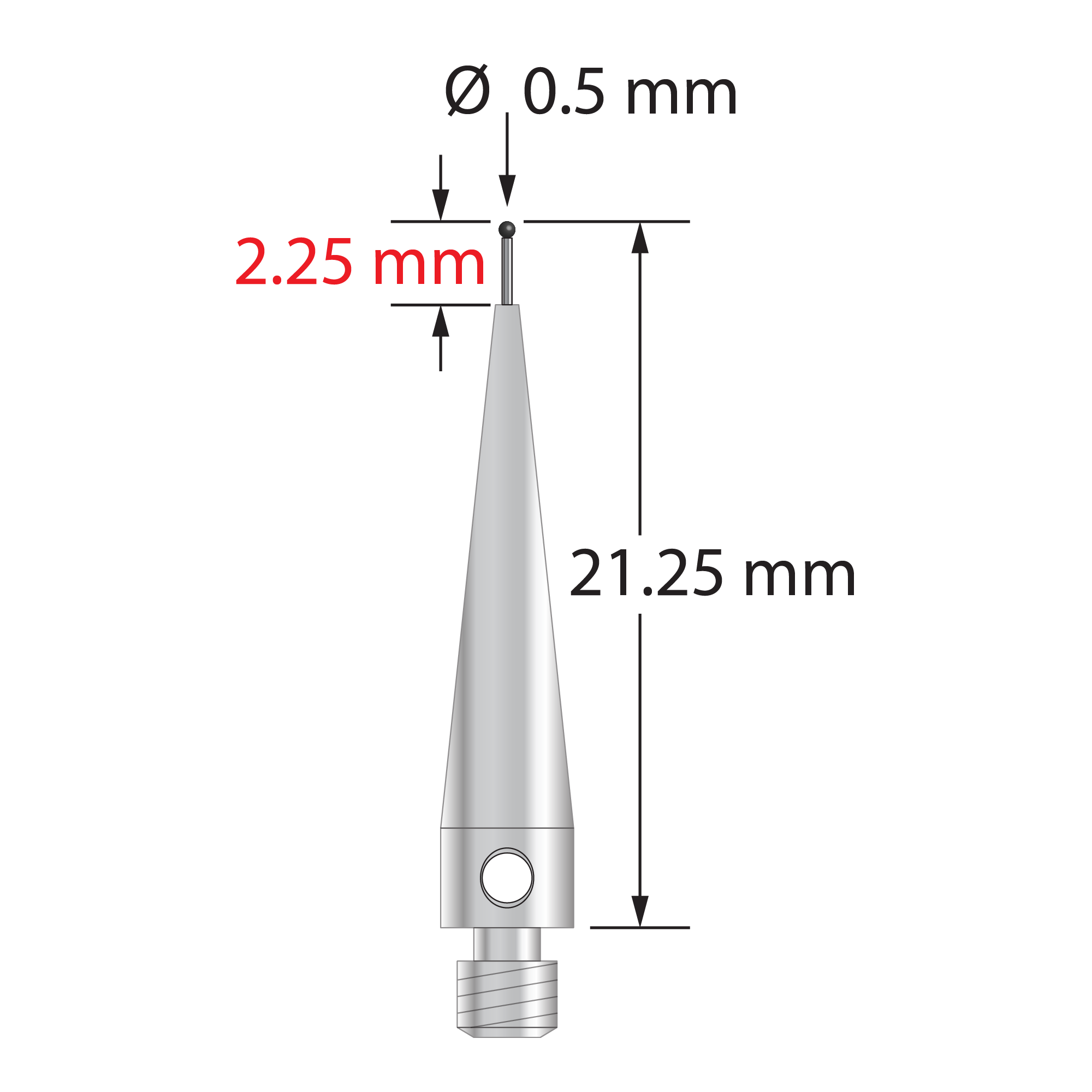

M3 stylus with 0.5 mm diameter ruby ball, 0.4 mm diameter carbide stem, and 4.0 mm diameter x 19.0 mm long tapered stainless steel base. Overall stylus length is 21.25 mm. Stylus weight is 0.89 gram. Compare to Renishaw A-5004-2023.

Dimensions

ball diameter: 0.5

base diameter: 4.0

length 1: 21.25

length 2: 2.25

stem diameter: 0.4

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
