TM3-0521.25

$64.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

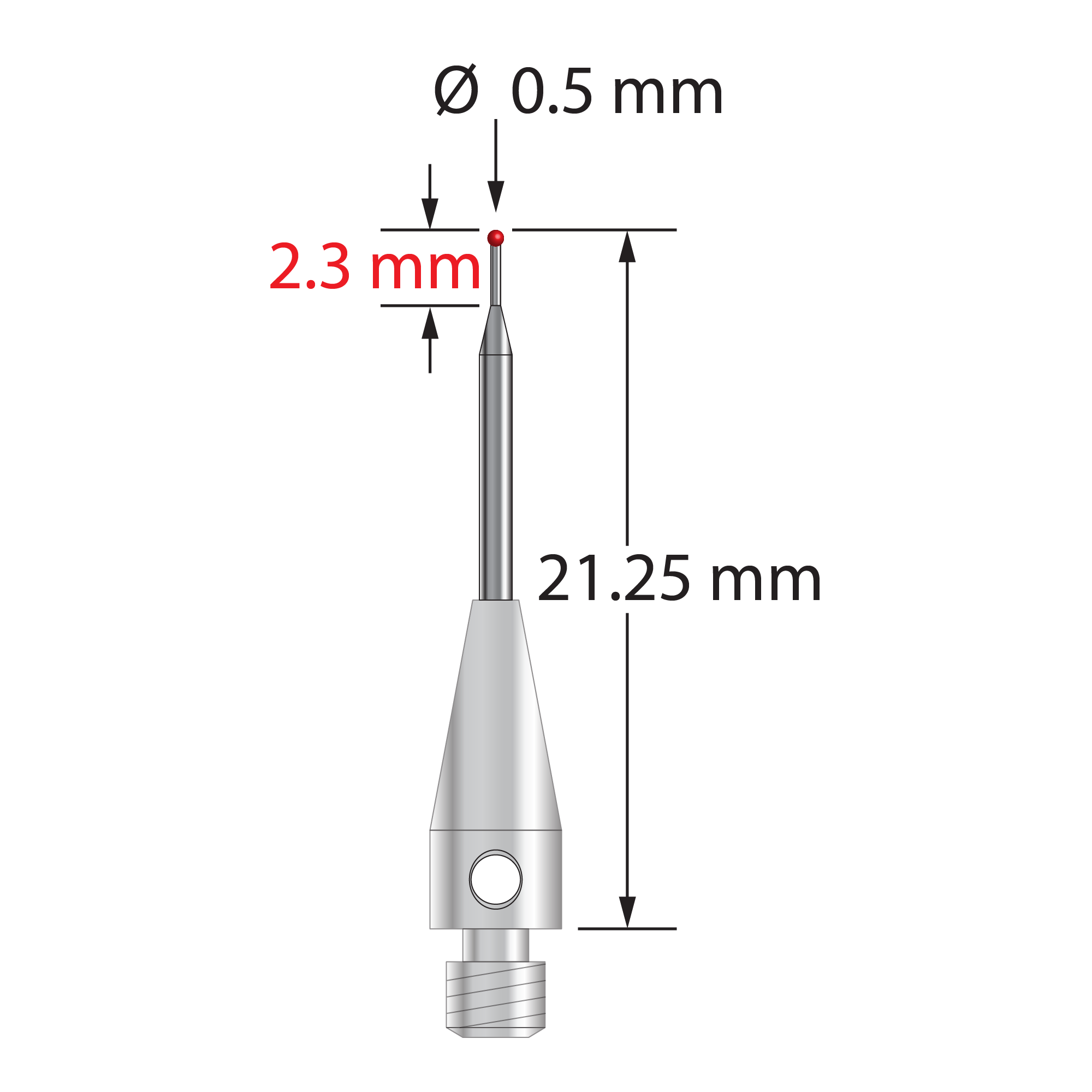

M3 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 4.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 21.25 mm. Stylus weight is 0.89 gram. Compare to Zeiss 602030-8115-000.

Dimensions

ball diameter: 0.5
base diameter: 4.0
length 1: 21.25
length 2: 11.25
length 3: 2.5
stem diameter: 1.0
stem step diameter: 0.3

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
