TM3-0521-02
TM3-0521-02

TM3-0521-02

$95.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

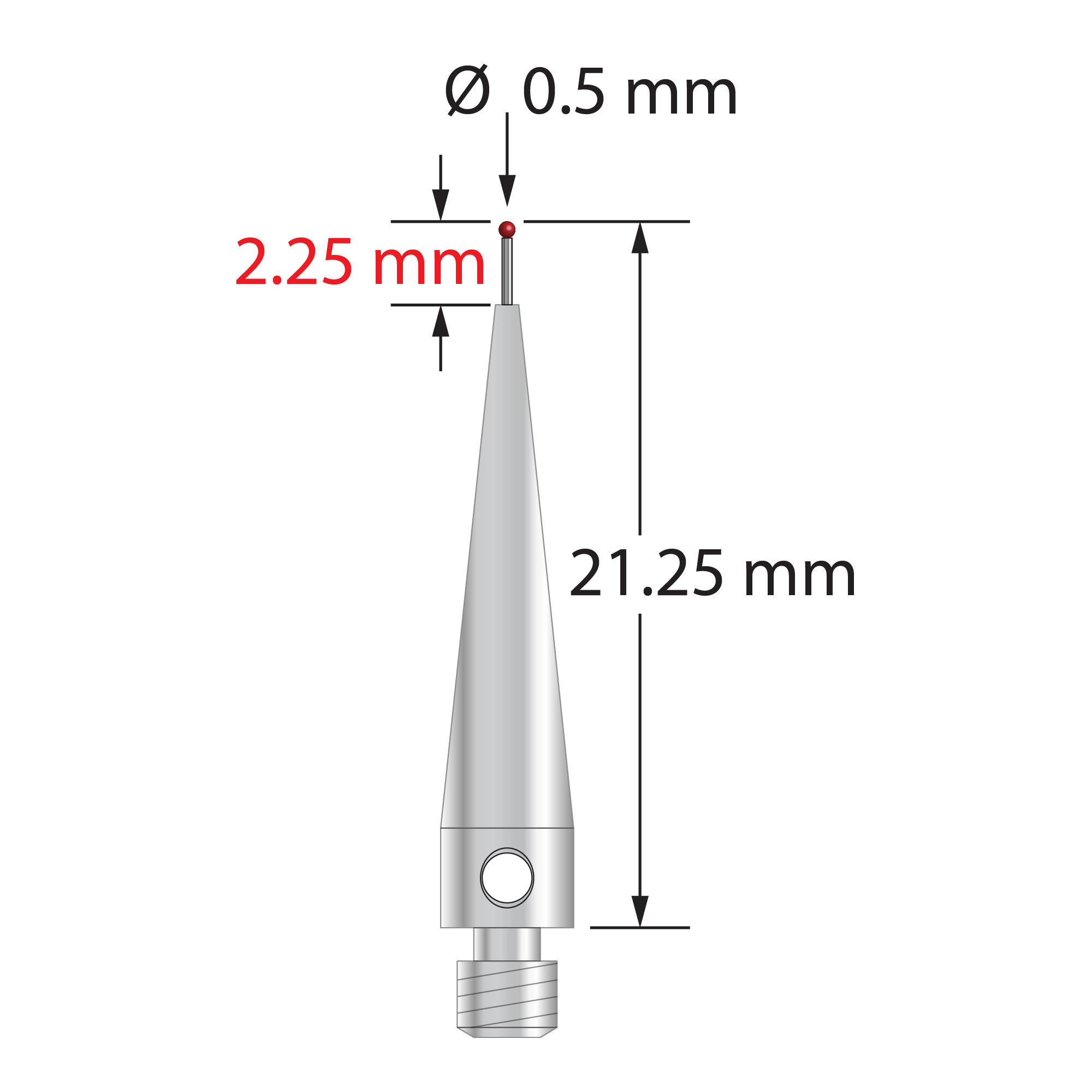

M3 stylus with 0.5 mm diameter ruby ball, 0.4 mm diameter carbide stem, and stainless steel base. 21.25 mm long overall.  Weight is 1.04 gram.  Compare to Renishaw A-5000-7632 and Zeiss 623062-3194-000.

Dimensions

ball diameter: 0.5
base diameter: 4.0
length 1: 21.25
length 2: 2.25
stem diameter: 0.4

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
