TM3-0520-TX-SN

Name: TM3-0520-TX-SN
Brand: Q-Mark Manufacturing Inc
SKU: TM3-0520-TX-SN
Price: 135.0 USD
Availability: InStock

$135.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

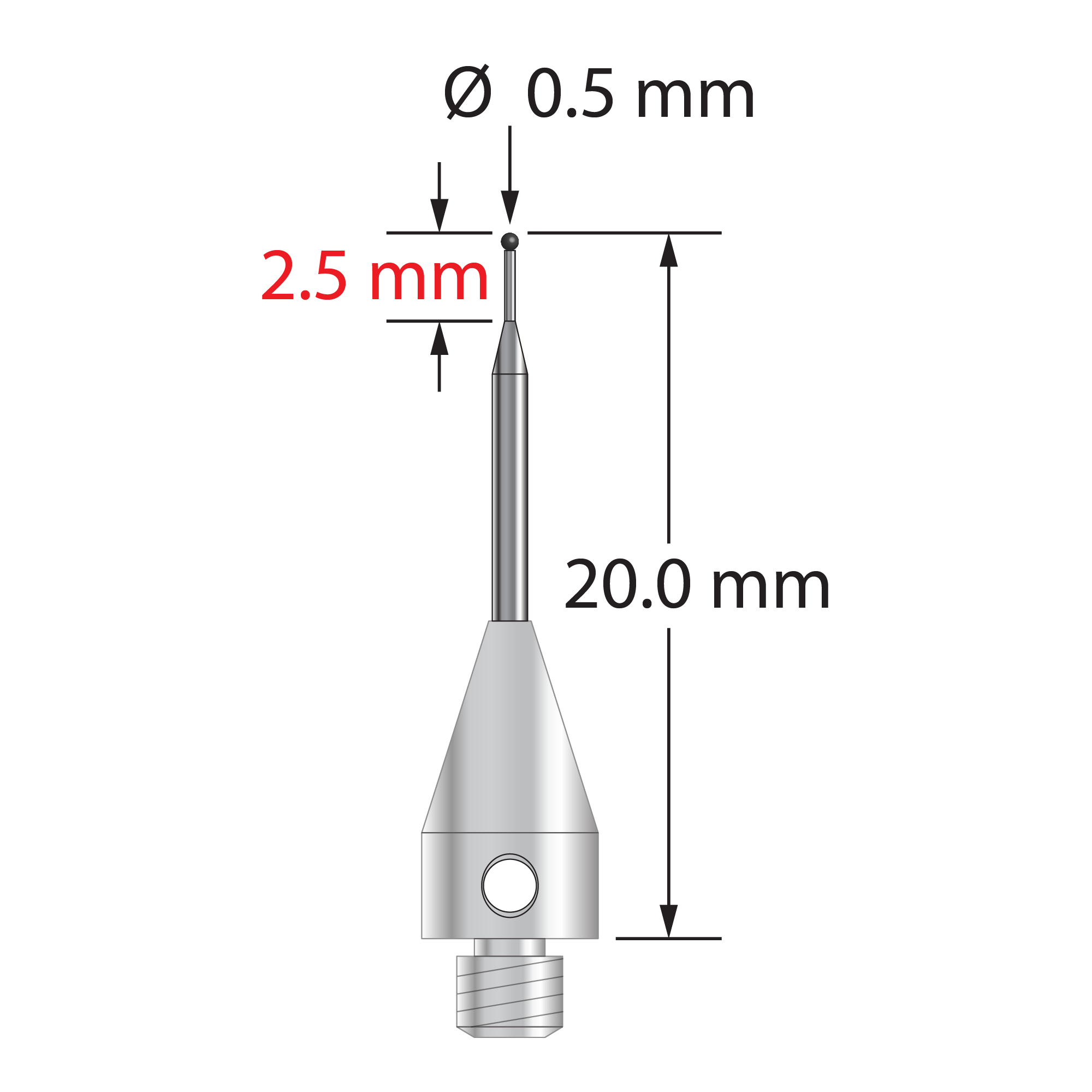

M3 XXT stylus with 0.5 mm diameter silicon nitride ball, tapered carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.55 gram.

Dimensions

ball diameter: 0.5

base diameter: 5.0

length 1: 20.0

length 2: 11.0

length 3: 2.5

stem diameter: 1.0

stem step diameter: 0.3

Materials

ball material: Silicon Nitride

base material: Titanium

stem material: Carbide
