Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM3-0519-SN

Name: TM3-0519-SN
Brand: Q-Mark Manufacturing Inc.
Price: 148.0 USD
Availability: InStock

$148.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

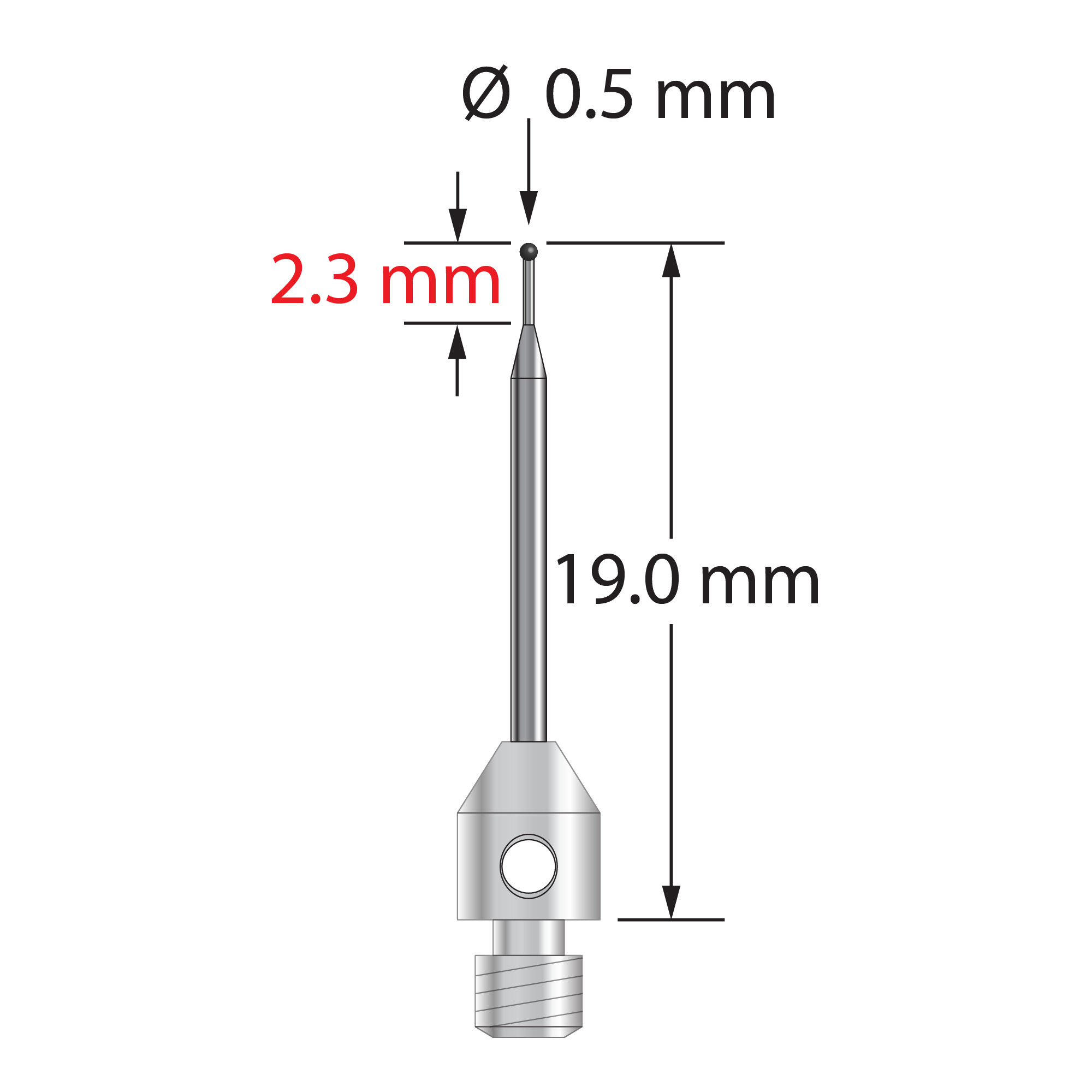

M3 stylus with 0.5 mm diameter silicon nitride ball, tapered carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 19.0 mm. Stylus weight is 0.56 gram.

Dimensions

ball diameter: 0.5

base diameter: 4.0

length 1: 19.0

length 2: 14.0

length 3: 2.5

stem diameter: 1.0

stem first step diameter: 0.3

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide

{% for machine in Machines.userdata.machines %} {% if machine.parts contains title %}

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

{% for part in machine.parts %} {% assign the_handle = part | handle %} {% if the_handle != handle %}

{% endif %} {% endfor %}

{% endif %}

{% endfor %}

TM3-0519-SN

Dimensions

Materials

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

Added to your cart:

Request for Quote

TM3-0519-SN Favorite {% assign in_list = false %} {% for item in items %} {% if item.handle == "tm3-0519-sn" %} {% assign in_list = true %} {% break %} {% endif %} {% endfor %} {% if in_list %} {% else %} {% endif %}

Dimensions

Materials

Also compatible with {{machine.make}} {{machine.model}} {{machine.probe_head}}

Request for Quote

TM3-0519-SN
