TM3-0512-SN

Name: TM3-0512-SN
Brand: Q-Mark Manufacturing Inc
Price: 81.0 USD
Availability: InStock

$81.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

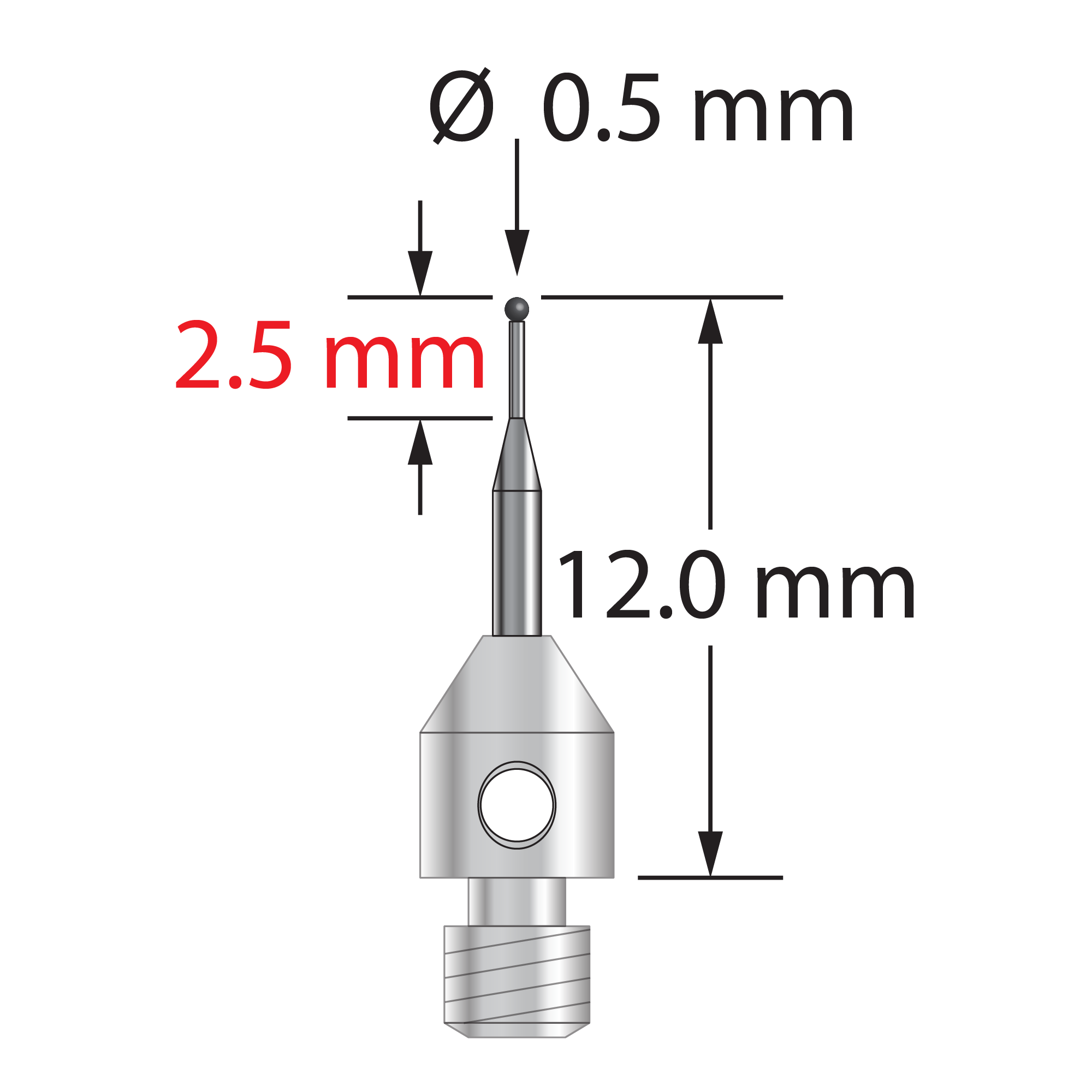

M3 stylus with 0.5 mm diameter silicon nitride ball, tapered carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Major stem diameter is 1.0 mm, minor diameter is 0.3 mm. Overall stylus length is 12.0 mm. Stylus weight is 0.53 gram. Compare to Zeiss 626123-5445-012.

Dimensions

ball diameter: 0.5

base diameter: 4.0

length 1: 12.0

length 2: 7.0

stem diameter: 1.0

stem step diameter: 0.3

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
