TM3-0320-TX-C

Name: TM3-0320-TX-C
Brand: Q-Mark Manufacturing Inc.
Price: 105.0 USD
Availability: InStock

$105.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

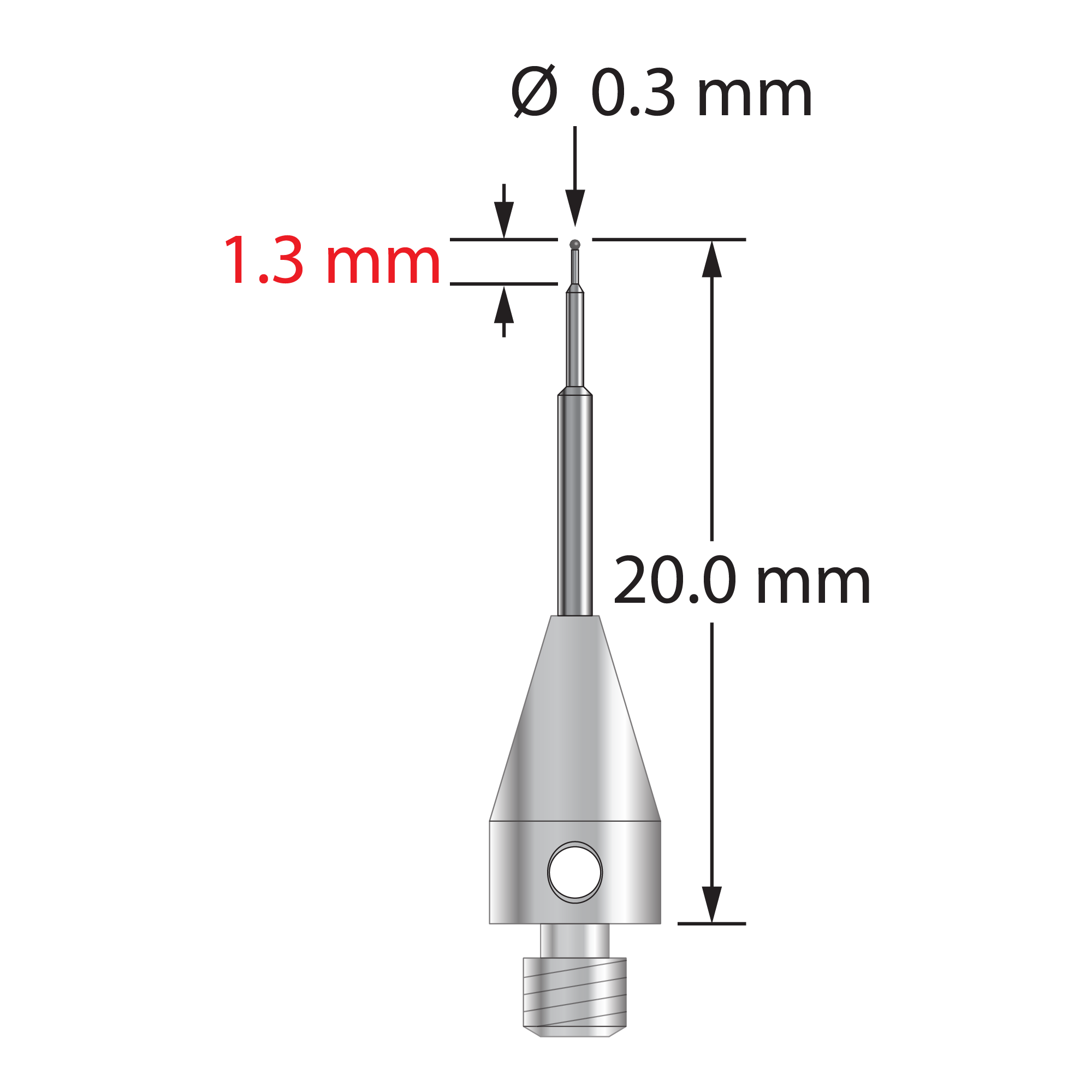

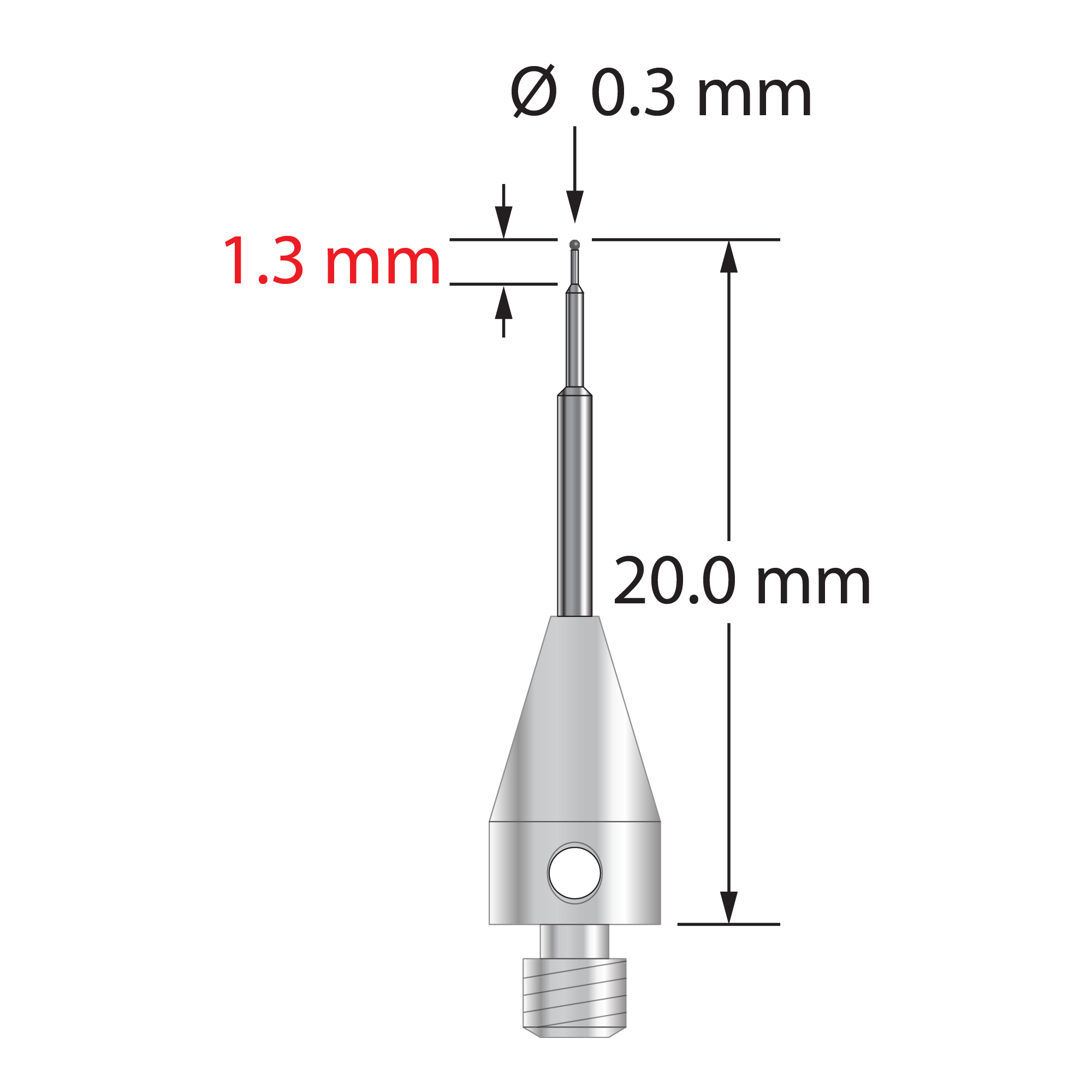

M3 XXT stylus with 0.3 mm diameter carbide ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Minor stem diameter is 0.2 mm, intermediate diameter is 0.5 mm, and major diameter is 1.0 mm. Overall stylus length is 20.0 mm. Stylus weight is 0.54 gram.

Dimensions

ball diameter: 0.3

base diameter: 5.0

length 1: 20.0

length 2: 11.0

length 3: 1.3

stem diameter: 1.0

stem first step diameter: 0.2

stem step diameter: 0.5

Materials

ball material: Carbide

base material: Titanium

stem material: Carbide
