TM3-0318-R

Name: TM3-0318-R
Brand: Q-Mark Manufacturing Inc.
Price: 87.0 USD
Availability: InStock

$87.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

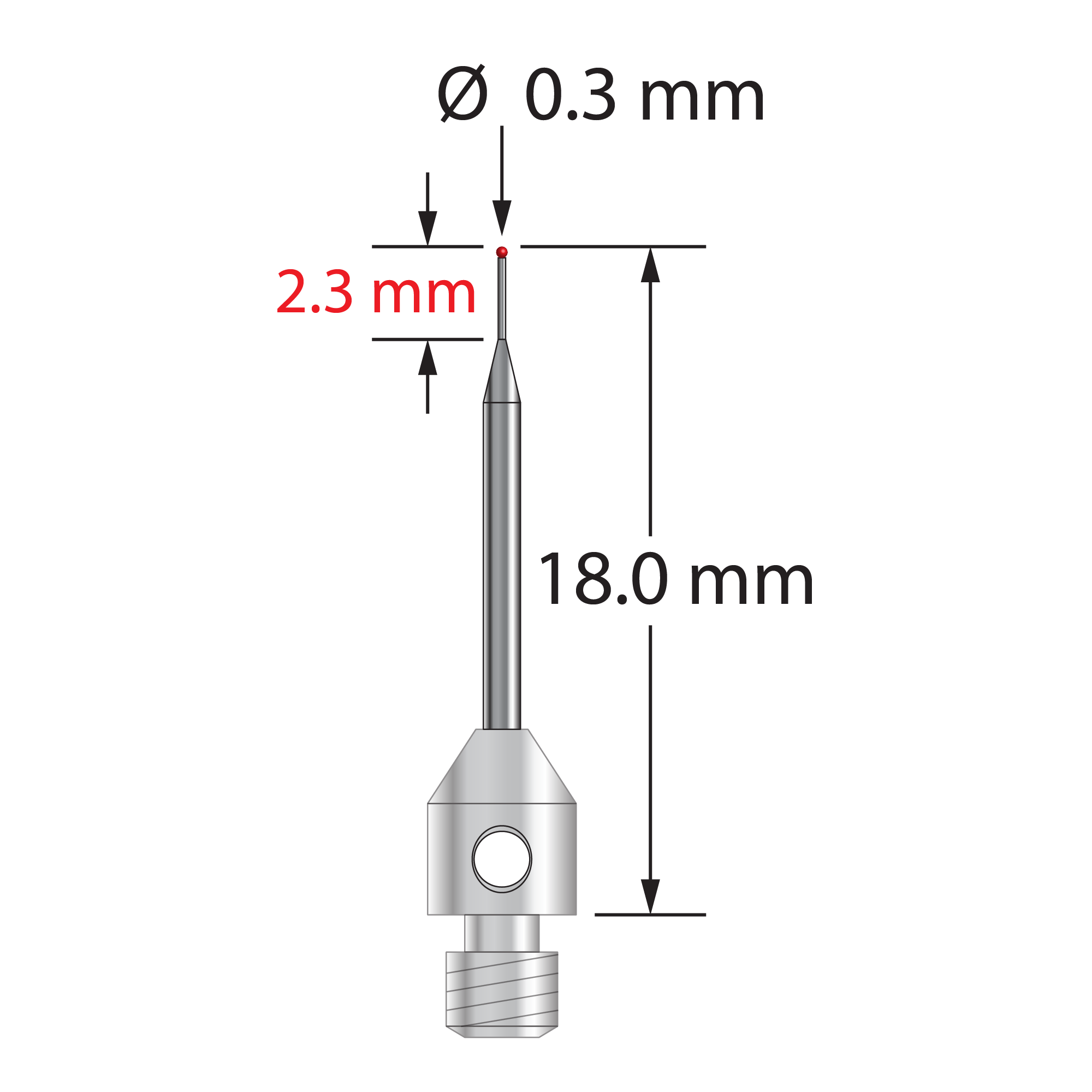

M3 stylus with 0.3 mm diameter ruby ball, tapered carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Minor stem diameter is 0.2 mm, major diameter is 1.0 mm. Overall stylus length is 18.0 mm. Stylus weight is 0.52 gram.

Dimensions

ball diameter: 0.3

base diameter: 3.0

length 1: 18.0

length 2: 13.0

length 3: 2.3

stem diameter: 1.0

stem first step diameter: 0.2

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
