TM3-0315-TX
TM3-0315-TX

TM3-0315-TX

$95.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

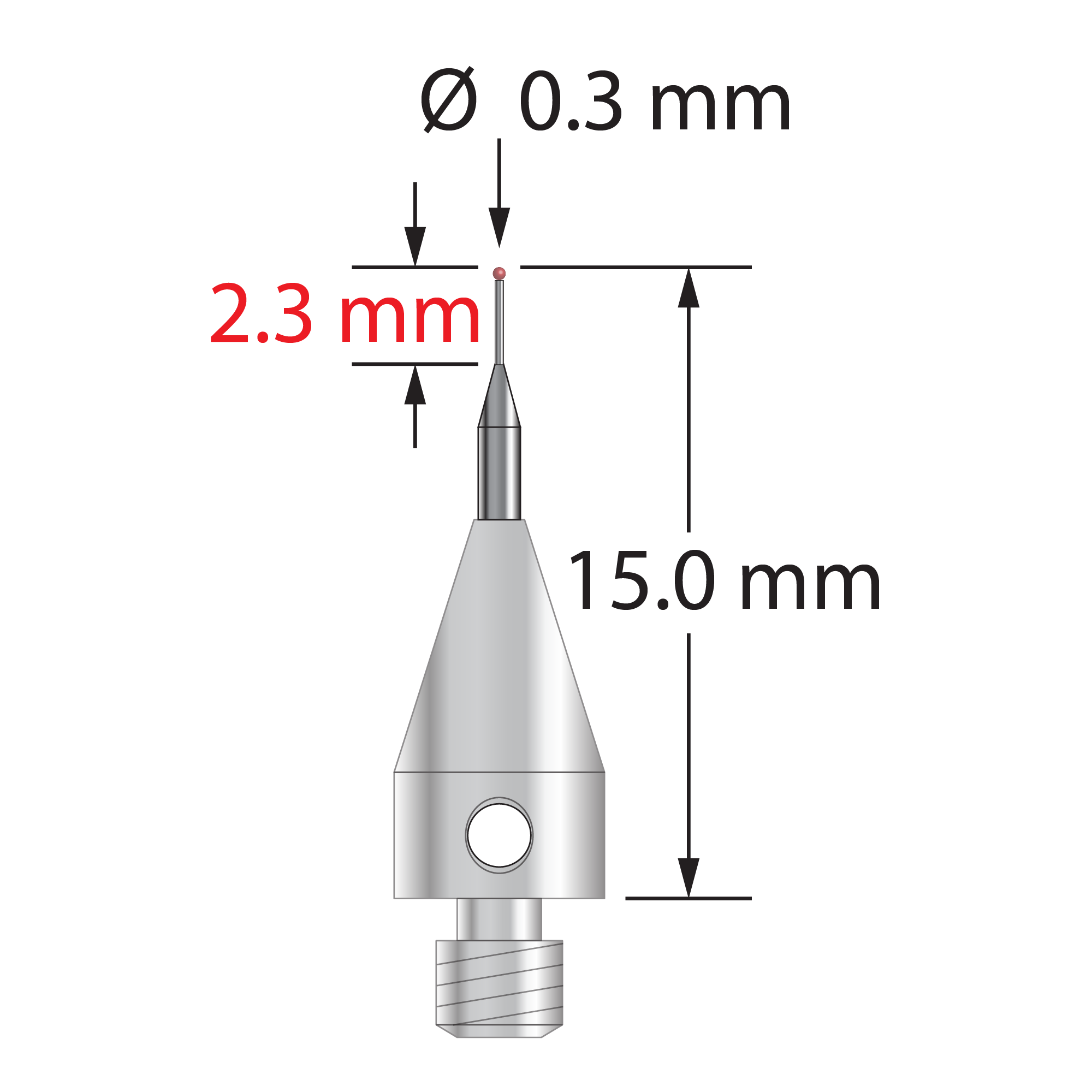

M3 stylus with 0.3 mm diameter ruby ball, tapered carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base.  Minor stem diameter is 0.2 mm, major diameter is 1.0 mm.  Overall stylus length is 15.0 mm.  Stylus weight is 0.49 gram.  Compare to Zeiss 626113-0030-015.

Dimensions

ball diameter: 0.3
base diameter: 5.0
length 1: 15.0
length 2: 6.0
length 3: 2.3
stem diameter: 1.0
stem first step diameter: 0.2
stem step diameter: 0.5

Materials

ball material: ruby
base material: titanium
stem material: carbide
