TM3-0313-TX-C

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

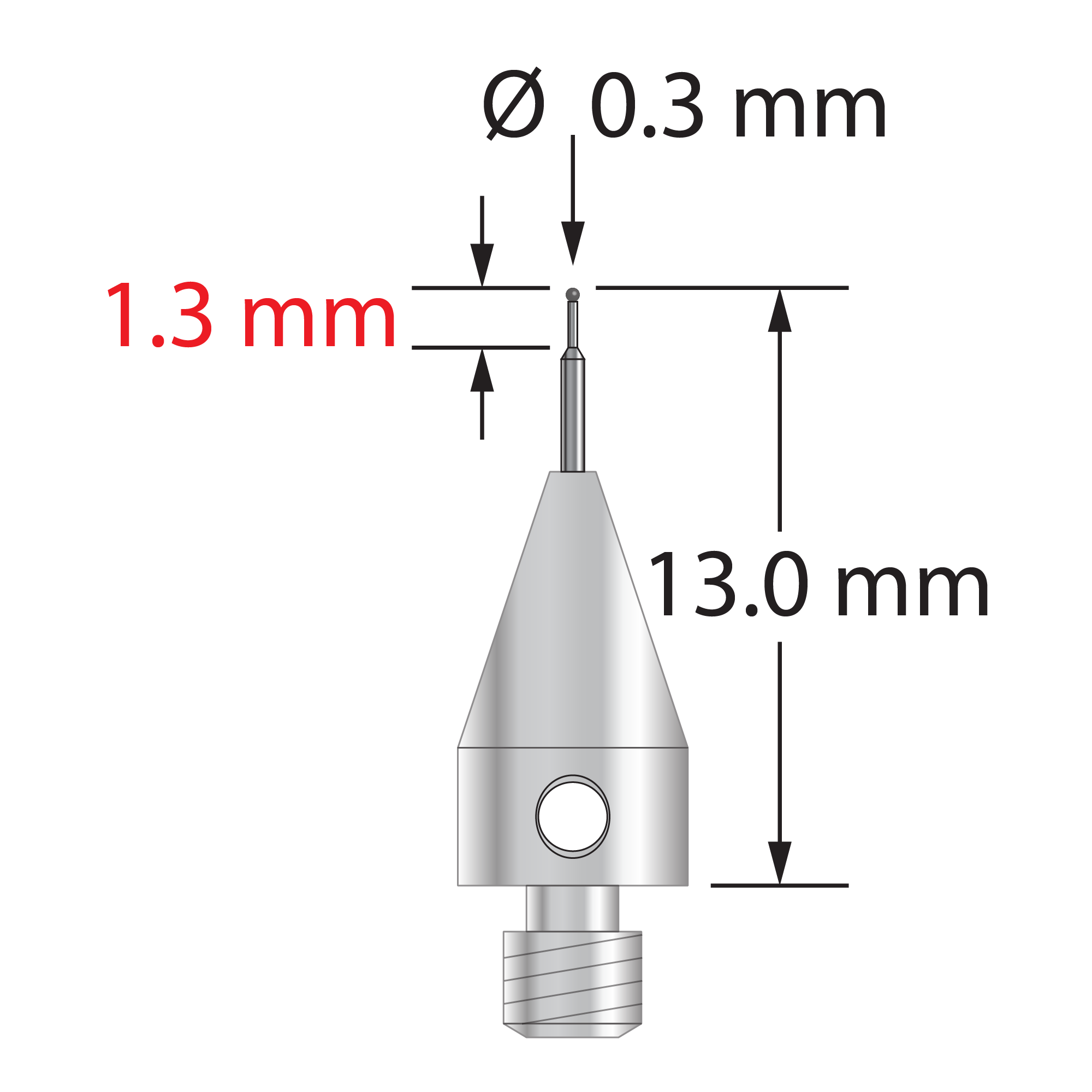

M3 stylus with 0.3 mm diameter carbide ball, stepped carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base.  Minor stem diameter is 0.2 mm, major diameter is 0.5 mm.  Overall stylus length is 13.0 mm.  Stylus weight is 0.46 gram.

Dimensions

ball diameter: 0.3
base diameter: 5.0
length 1: 13.0
length 2: 4.0
length 3: 1.3
stem diameter: 1.0
stem first step diameter: 0.2
stem step diameter: 0.5

Materials

ball material: Carbide
base material: Titanium
stem material: Carbide
