Q-Mark Probe Styli: Orders Placed by Noon PT Ship Out Same-Day* | Ultra-Fast Service | Always Guaranteed | Proudly USA Made

TM2-8015-S

Name: TM2-8015-S
Brand: Q-Mark Manufacturing Inc.
Price: 71.0 USD
Availability: InStock

$71.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

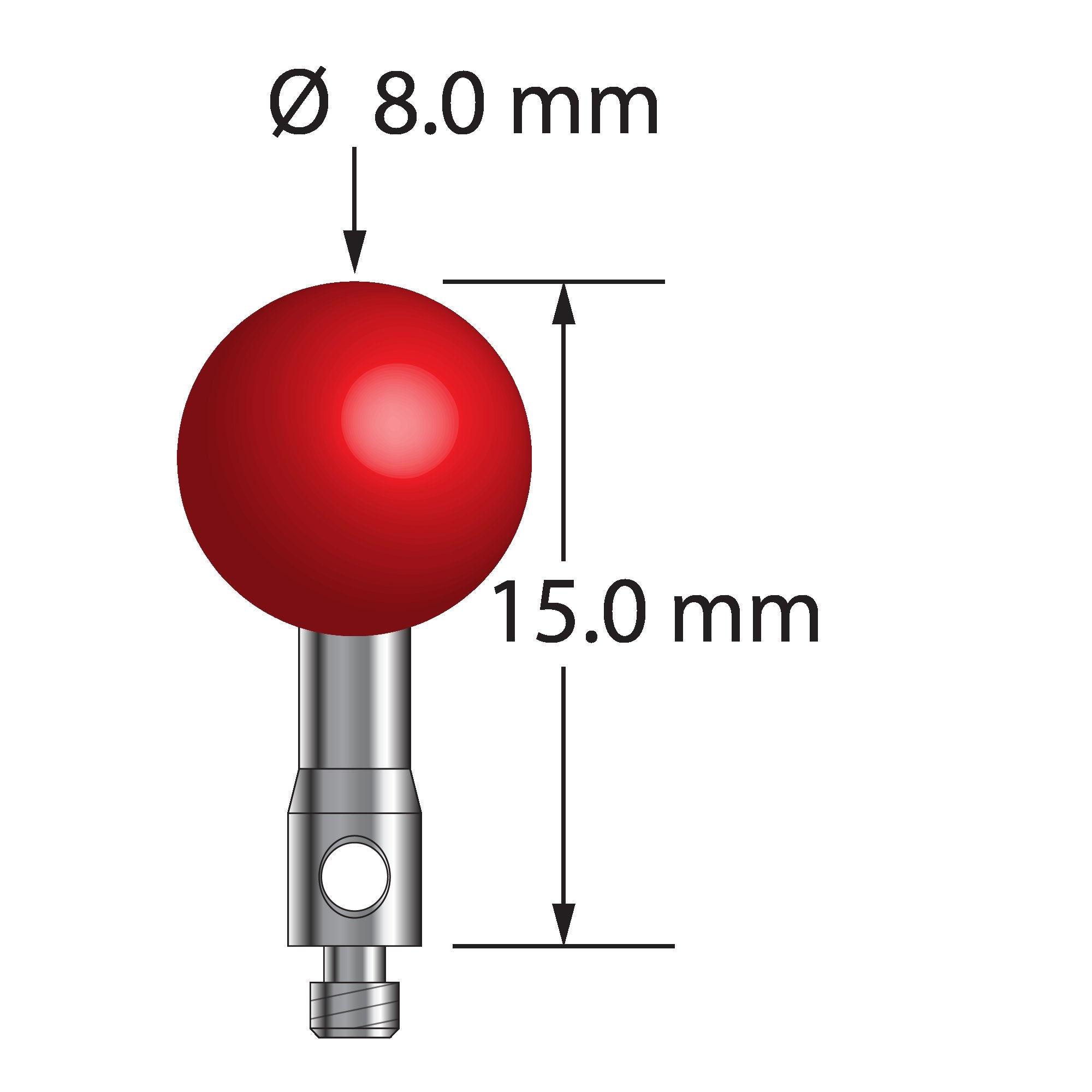

M2 stylus with 8.0 mm diameter ruby ball, 2.5 mm diameter stainless steel stem, and 3.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 2.35 grams. Compare to Renishaw A-5000-4158 and Mitutoyo K651025.

Dimensions

ball diameter: 8.0

base diameter: 3.0

length 1: 15.0

stem diameter: 2.5

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Stainless Steel
