TM2-5052.5-C-SN

Name: TM2-5052.5-C-SN
Brand: Q-Mark Manufacturing Inc.
Price: 120.0 USD
Availability: InStock

$120.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

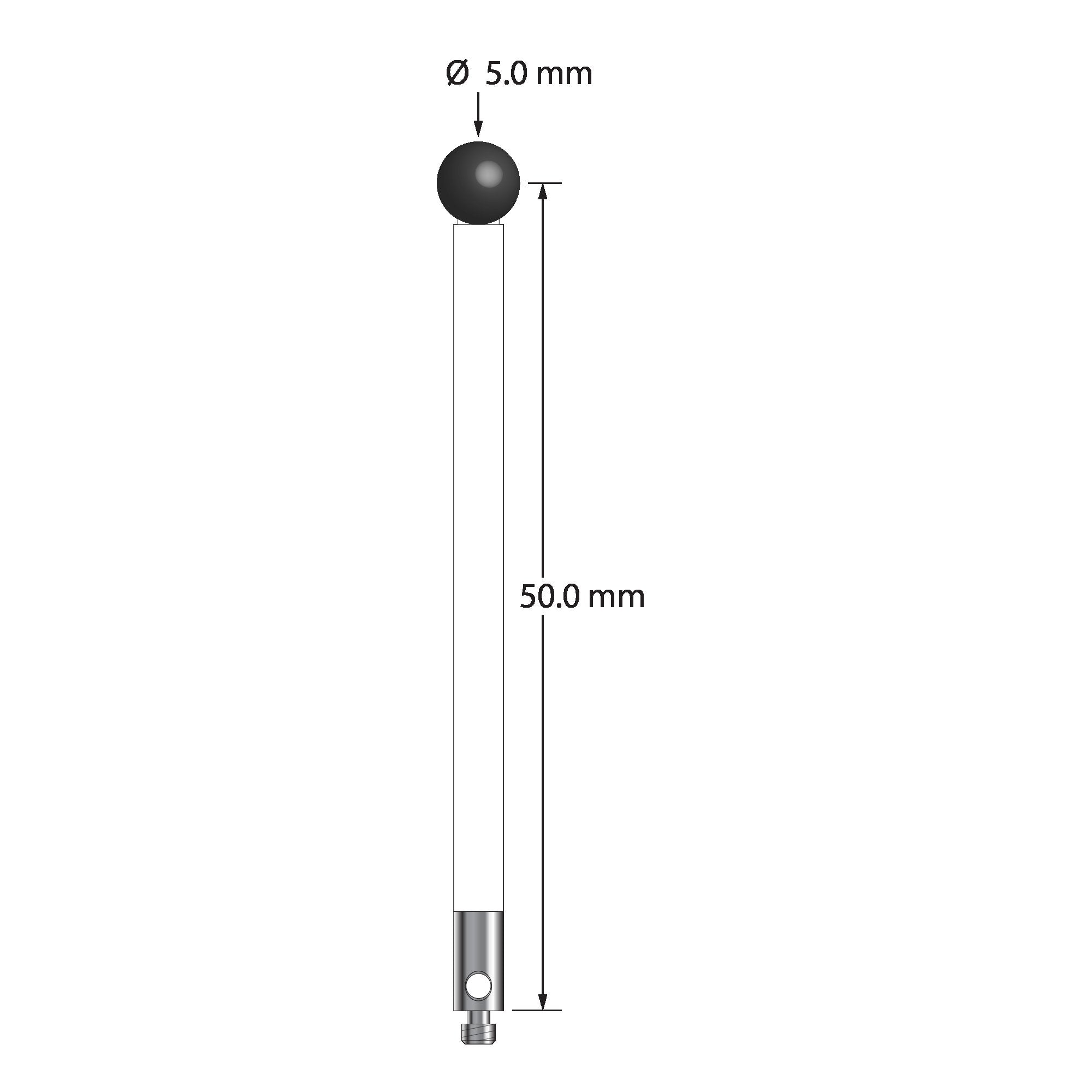

M2 stylus with 5.0 mm diameter silicon nitride ball, 3.0 mm diameter ceramic stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 1.27 grams.

Dimensions

ball diameter: 5.0

base diameter: 3.0

length 1: 52.5

length 2: 46.5

stem diameter: 3.0

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Ceramic
