TM2-5052.5-C

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

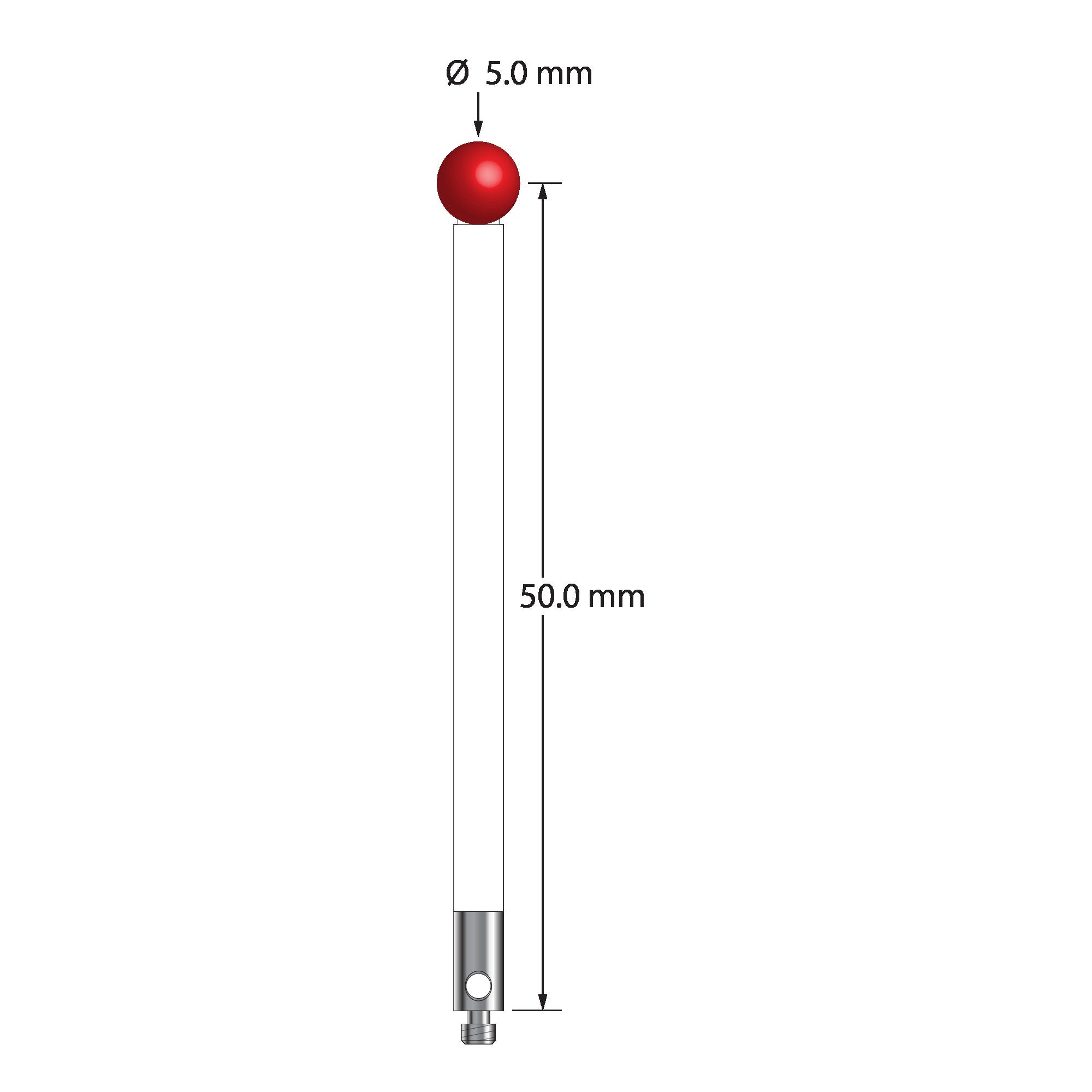

M2 stylus with 5.0 mm diameter ruby ball, 2.5 mm diameter ceramic stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Stylus length to ball center is 50.0 mm. Stylus weight is 1.27 grams. Compare to Renishaw A-5003-0066.

Dimensions

ball diameter: 5.0
base diameter: 3.0
length 1: 52.5
length 2: 46.5
stem diameter: 3.0

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Ceramic
