TM2-5042.5

$52.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

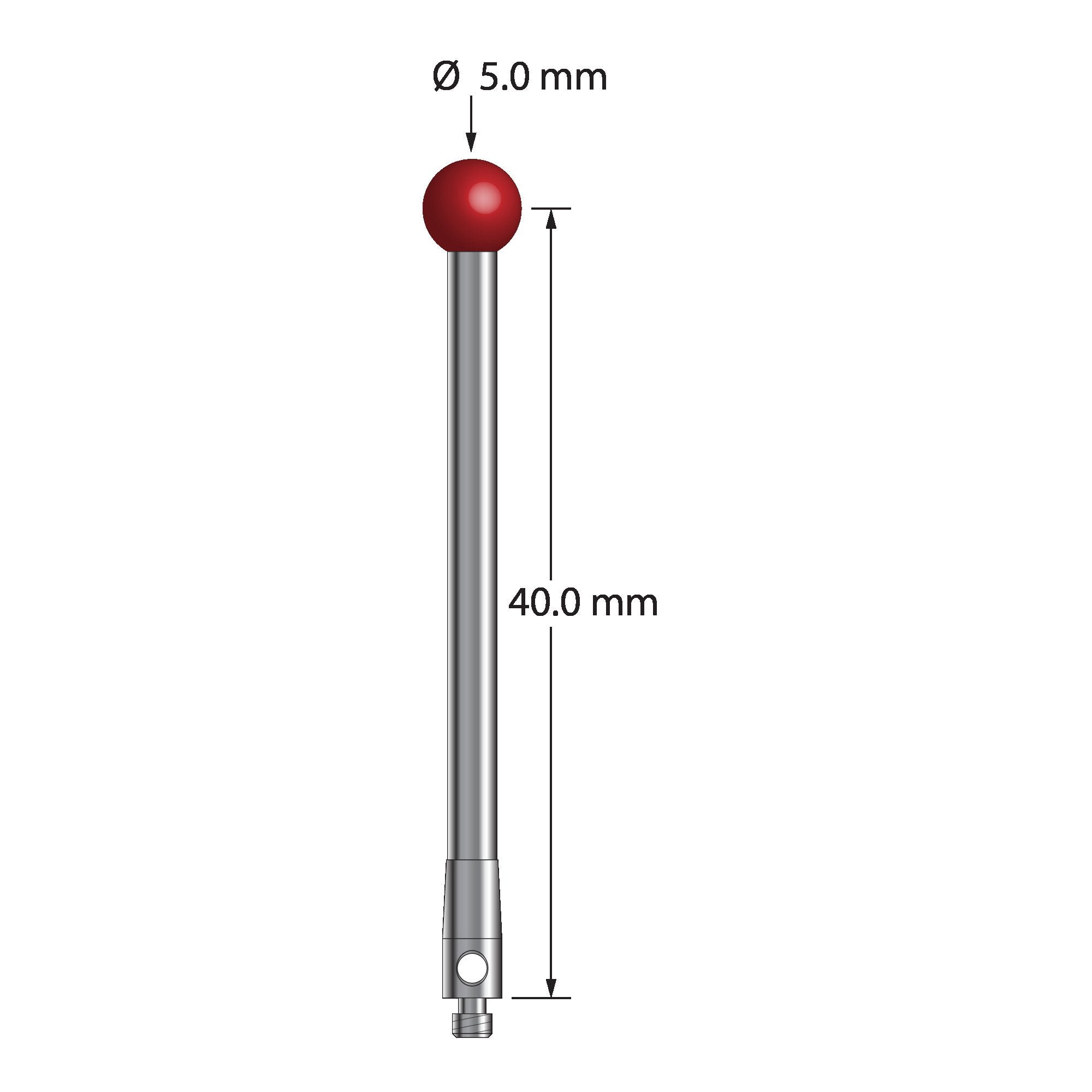

M2 stylus with 5.0 mm diameter ruby ball, 2.5 mm diameter carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base.  Stylus length to ball center is 40.0 mm.  Stylus weight is 3.08 grams.  Compare to Renishaw A-5003-0048.

Dimensions

ball diameter: 5.0
base diameter: 3.0
length 1: 42.5
length 2: 36.5
stem diameter: 2.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
