TM2-5020-SN

Name: TM2-5020-SN
Brand: Q-Mark Manufacturing Inc.
Price: 90.0 USD
Availability: InStock

$90.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

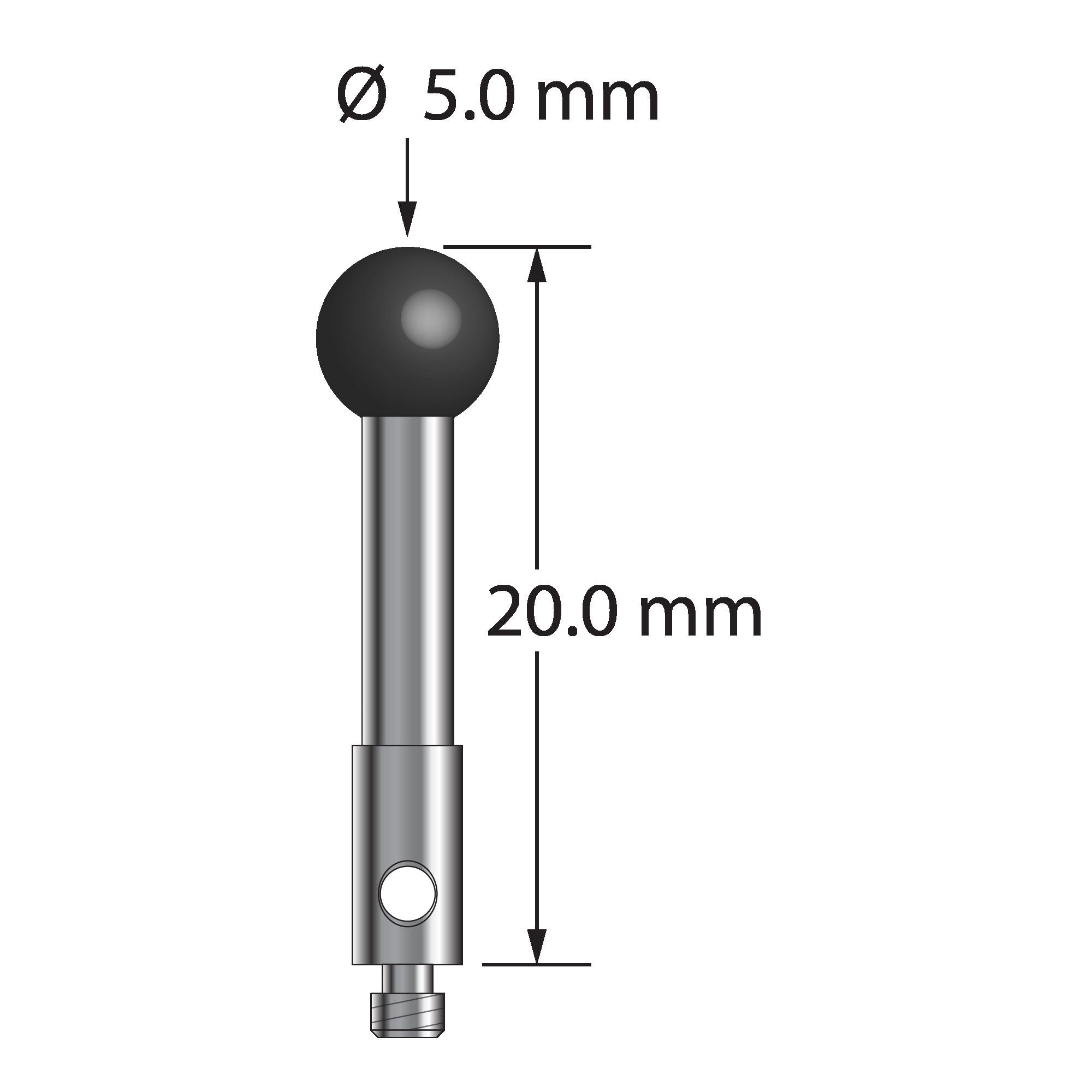

M2 stylus with 5.0 mm diameter silicon nitride ball, 2.5 mm diameter carbide stem, and 3.0 mm diameter x 6.0 mm long stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 1.40 gram.

Dimensions

ball diameter: 5.0

base diameter: 3.0

length 1: 20.0

length 2: 14.0

stem diameter: 2.5

Materials

ball material: Silicon Nitride

base material: Stainless Steel

stem material: Carbide
