TM2-4042-Z

$70.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
{% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

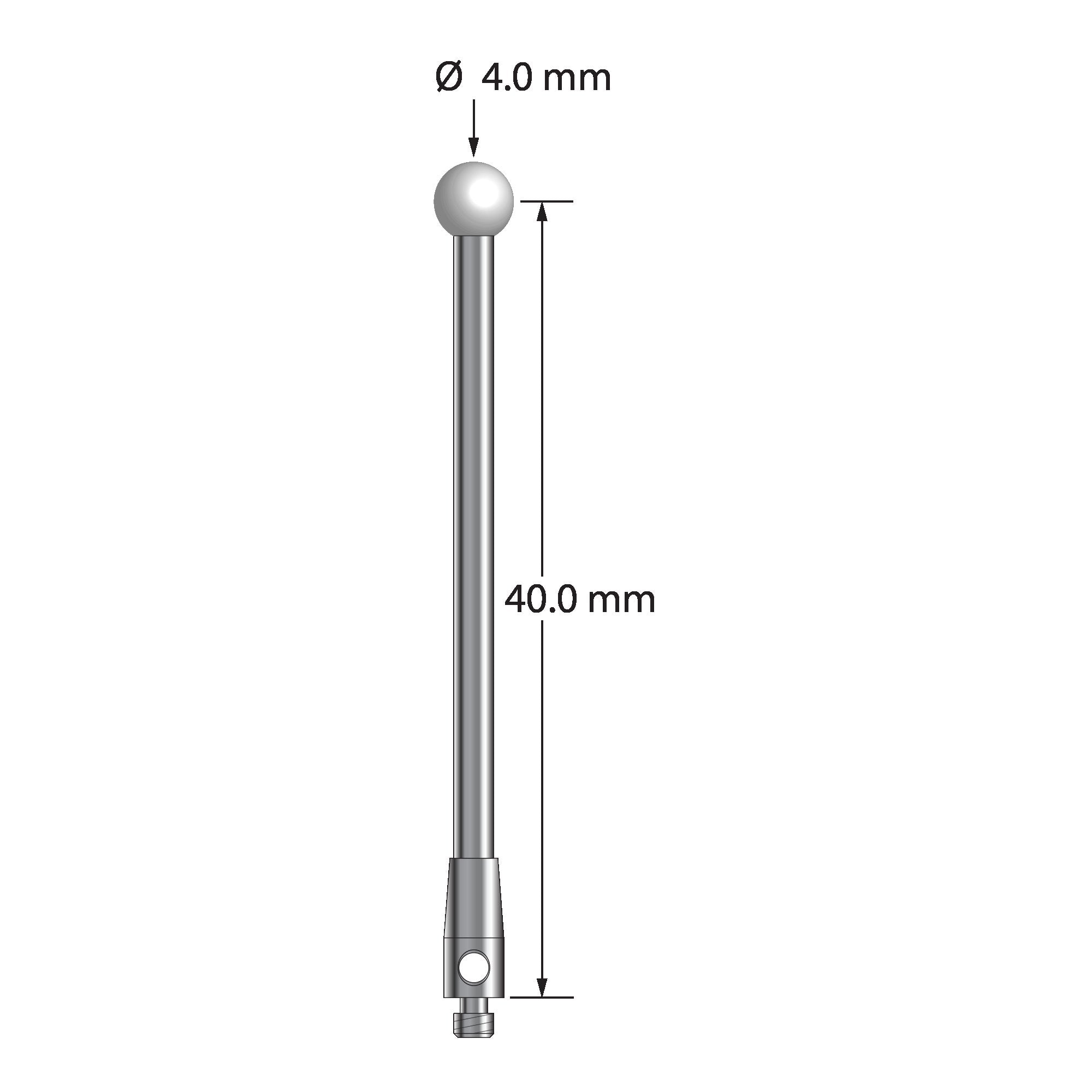

M2 stylus with 4.0 mm diameter zirconia ball, 2.0 mm diameter carbide stem, and 3.0 mm diameter x 7.0 mm long stainless steel base. Stylus length to ball center is 40.0 mm. Stylus weight is 1.90 grams.

Dimensions

ball diameter: 4.0
base diameter: 3.0
length 1: 42.0
length 2: 35.0
stem diameter: 2.0

Materials

ball material: Zirconia
base material: Stainless Steel
stem material: Carbide
