TM2-4022

Name: TM2-4022
Brand: Q-Mark Manufacturing Inc.
Price: 39.0 USD
Availability: InStock

$39.00

{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}

Compatible with

{% endif %} {% endfor %} {% unless compatible %}

This product is not compatible with any of your saved machines.

{% endunless %} {% else %} {% endif %}

Quantity

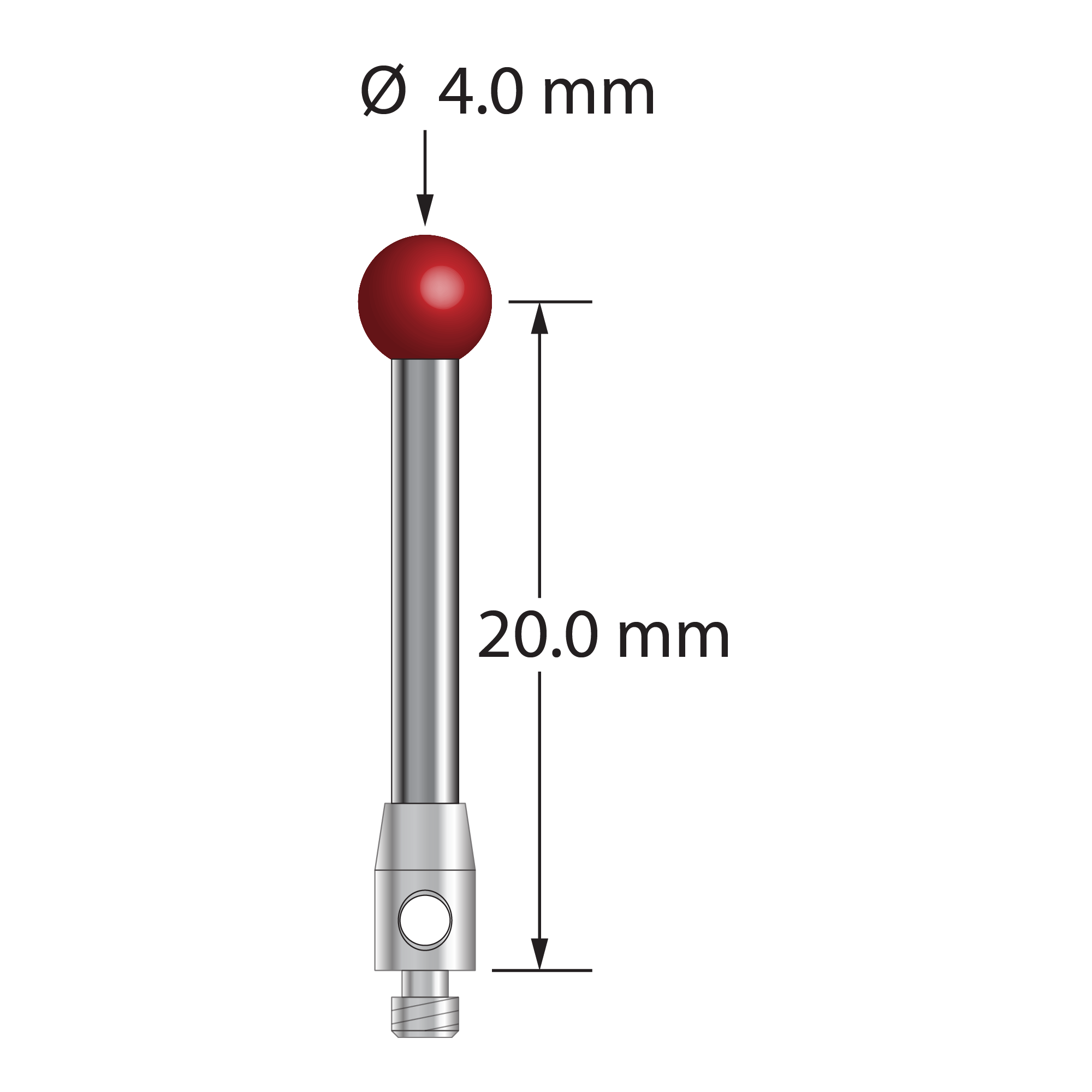

M2 stylus with 4.0 mm diameter ruby ball, 2.0 mm diameter carbide stem, and 3.0 mm diameter x 5.0 mm long stainless steel base. Stylus length to ball center is 20.0 mm. Stylus weight is 0.94 gram. Compare to Zeiss 602030-8016-000.

Dimensions

ball diameter: 4.0

base diameter: 3.0

length 1: 22.0

length 2: 17.0

stem diameter: 2.0

Materials

ball material: Ruby

base material: Stainless Steel

stem material: Carbide
