TM2-2530
TM2-2530

TM2-2530

$39.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

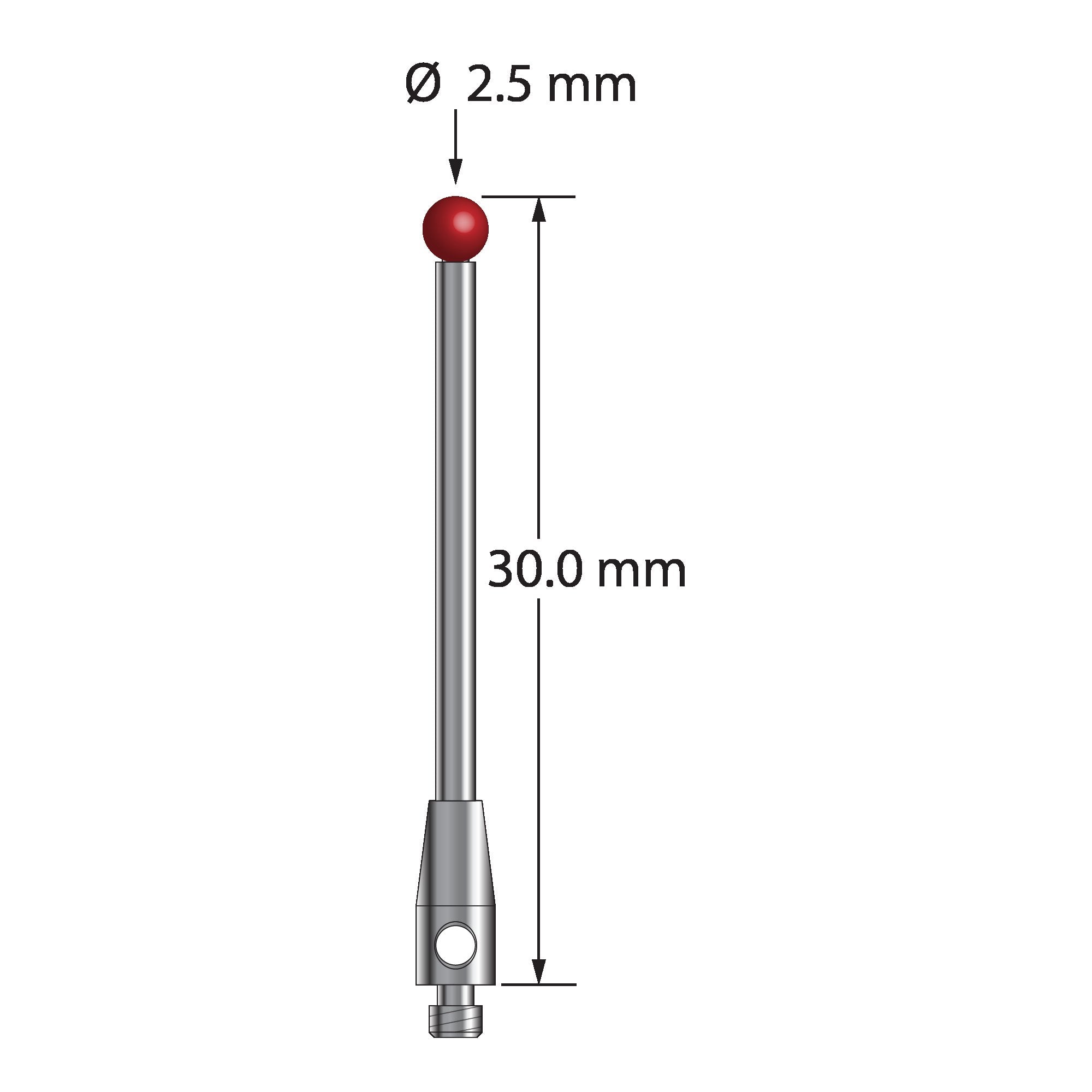

M2 stylus with 2.5 mm diameter ruby ball, 1.5 mm diameter carbide shaft, and 3.0 mm diameter x 7.0 mm long stainless steel base.  Overall stylus length is 30.0 mm.  Stylus weight is 0.88 gram.  Compare to Zeiss 000000-1776-730.

Dimensions

ball diameter: 2.5
base diameter: 3.0
length 1: 30.0
length 2: 23.0
stem diameter: 1.5

Materials

ball material: Ruby
base material: Stainless Steel
stem material: Carbide
