TM2-2021-SN
TM2-2021-SN

TM2-2021-SN

$85.00
{% if Machines.userdata.machines[0].parts %} {% assign compatible = false %} {% for machine in Machines.userdata.machines %} {% if machine.parts contains title %} {% assign compatible = true %}
Compatible with
{{machine.make}} {{machine.model}} {{machine.probe_head}}
 {% endif %} {% endfor %} {% unless compatible %}
This product is not compatible with any of your saved machines.
{% endunless %} {% else %} {% endif %}

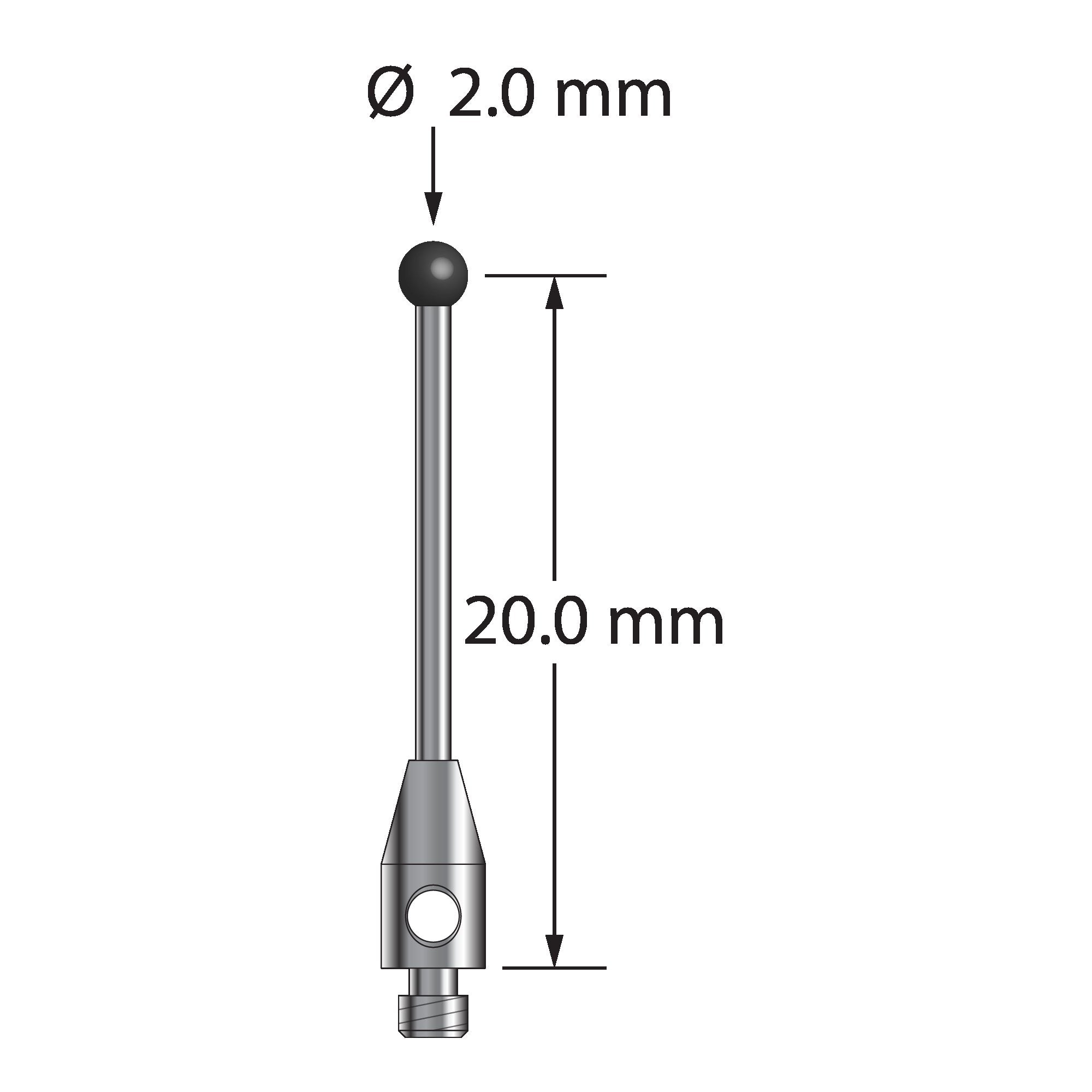

M2 stylus with 2.0 mm diameter silicon nitride ball, 1.0 mm diameter carbide shaft, and 3.0 mm diameter x 6.0 mm long stainless steel base.  Stylus length to ball center is 20.0 mm.   Stylus weight is 0.43 gram.  Compare to Renishaw A-5004-1017.

Dimensions

ball diameter: 2.0
base diameter: 3.0
length 1: 21.0
length 2: 15.0
stem diameter: 1.0

Materials

ball material: Silicon Nitride
base material: Stainless Steel
stem material: Carbide
